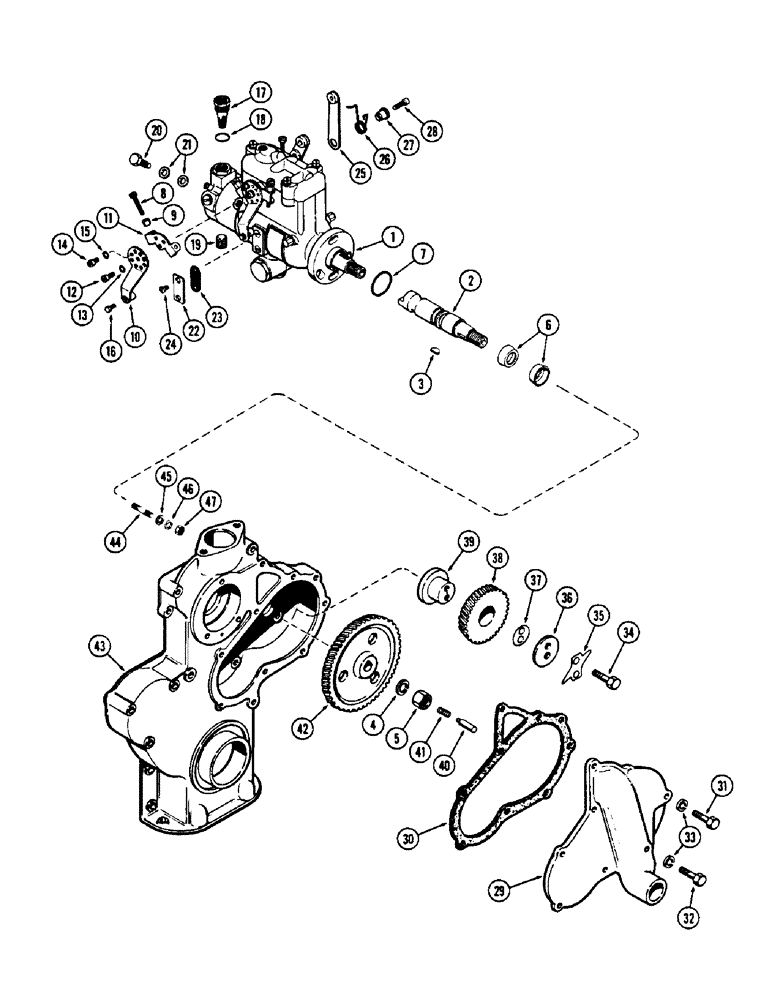

Запчасти Case W5A (014) - FUEL INJECTION PUMP AND DRIVE, (188) DIESEL ENGINE (03) - FUEL SYSTEM

1

A35776

PUMP

ASSY. - fuel injection, Includes: Ref. 2 - 28

1шт.

2

G47113

SHAFT

- pump drive

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Drive gear #6, 5/32" x 5/8"

1шт.

4

G49081

WASHER

- lock, drive gear nut

1шт.

5

25-119

NUT,9/16"-18, G5

- drive gear ret., 9/16" N.F. half hex.

1шт.

6

R14711

SEAL

- drive shaft

2шт.

7

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - injection pump

1шт.

8

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- adjusting, high idle

1шт.

9

86837534

LOCK WASHER

- idle screw

1шт.

10

G45337

ARM

- fuel shut-off

1шт.

11

NSS

NOT SOLD SEPARAT

LEVER - shut-off

1шт.

12

73670

SCREW

-, Serial Range: arm-pump

1шт.

13

73630

LOCK WASHER

WASHER - pump screw

1шт.

14

73646

SCREW

- shut-off arm to stop arm

1шт.

15

493-21017

LOCK WASHER,Int Tooth, #8

- lock, stop arm screw

1шт.

16

73667

IGNITION SWITCH

- clamp, shut-off cable

1шт.

17

CAS73671

FILTER, ELEMENT

FILTER - fuel inlet

1шт.

18

51200280

SEAL

- inlet filter

1шт.

19

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

End plate Hex Soc, 1/4"-18 NPTF

1шт.

20

73613

SCREW

FITTING - fuel lines

4шт.

21

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - fitting

8шт.

22

G46330

COVER

- timing window

1шт.

23

73453

GASKET

- timing window cover

1шт.

24

73514

SCREW

- timing window cover

2шт.

25

G45338

ARM

- throttle

1шт.

26

G48505

SPRING

- throttle arm

1шт.

27

G49621

RETAINER

- throttle arm spring

1шт.

28

G49079

SET SCREW

SCREW - retainer & throttle arm

1шт.

29

G2077

COVER ASSY

COVER - gear

1шт.

30

G46859

GASKET

- cover

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

32

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

33

92-6

LOCK WASHER,3/8"

9шт.

34

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

35

G11746

PLATE

- lock, idler gear

1шт.

36

G11732

PLATE

- thrust, idler gear

1шт.

37

G11728

SHIM,.005" Thk

Idler gear .005" Thk

1шт.

37

G11729

SHIM,.006" Thk

Idler gear .006" Thk

1шт.

38

G11730

SHIM,.007" Thk

Idler gear .007" Thk

1шт.

37

G11731

SHIM,.009" Thk

Idler gear .009" Thk

1шт.

38

G11852

GEAR

- idler (Includes bushing)

1шт.

39

G11726

HUB

- idler gear, pump drive

1шт.

40

G47128

PLUNGER

- thrust spring

1шт.

41

G48502

SPRING

- thrust, pump drive shaft

1шт.

42

G2076

GEAR

- drive, injection pump

1шт.

43

A36823

COVER

- pump drive (See Fig. 18)

1шт.

44

G11204

STUD

- pump mounting, 3/8" N.C. x 1-7/16"

3шт.

45

A30043

WASHER

- mounting stud

3шт.

46

92-6

LOCK WASHER,3/8"

3шт.

47

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.
