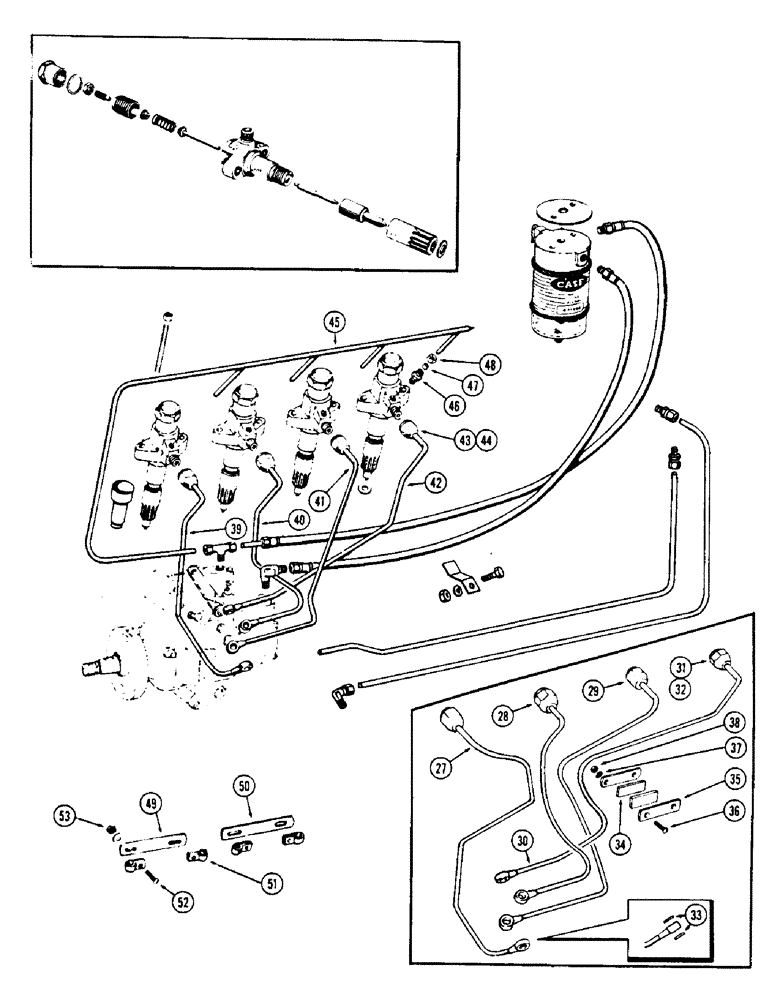

Запчасти Case W5A (012) - FUEL INJECTION SYSTEM, (188) DIESEL ENGINE (03) - FUEL SYSTEM

27

A35058

TUBE

- pump to #1 injector, (Incl. items 31 thru 33), Start Serial: 2003318

1шт.

28

A35059

TUBE

- pump to #2 injector, (Incl. items 31 thru 33), Start Serial: 2003318

1шт.

29

A35060

TUBE

- pump to #3 injector, (Incl. items 31 thru 33), Start Serial: 2003318

1шт.

30

A35061

TUBE

- pump to #4 injector, Start Serial: 2003318

1шт.

31

A27975

SLEEVE VALVE

SLEEVE - coupling, injection, Serial Range: tube-injector

1шт.

32

A27976

NUT - coupling, injection, Serial Range: tube-injector

1шт.

33

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - tube

8шт.

34

A27980

CUSHION

- clamp, Start Serial: 2003318

2шт.

35

A27987

CABLE

CLAMP - injection tube, Start Serial: 2003318

2шт.

36

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- #10-24 x 1" rd. hd.

2шт.

37

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

38

129-7

NUT,Hex, #10 - 24

- hex. #10-24

2шт.

39

G37001

TUBE

- pump to #1 injector, (Incl. items 42 & 43), Serial Range: -2003318

1шт.

40

G37002

X

TUBE - pump to #2 injector, (Incl. items 42 & 43), Serial Range: -2003318

1шт.

41

G37003

TUBE

- pump to #3 injector, (Incl. items 42 & 43), Serial Range: -2003318

1шт.

42

G37004

X

TUBE - pump to #4 injector, Serial Range: -2003318

1шт.

43

A27975

SLEEVE VALVE

SLEEVE - coupling, injection, Serial Range: tube-injector

1шт.

44

A27976

NUT - coupling, injection, Serial Range: tube-injector

1шт.

45

A36514

TUBE ASSY.

TUBE - leak-off

1шт.

46

222-21

FITTING,7/16"-24 x 1/8" NPTF

Leak-off tube to injector 7/16"-24 x 1/8" NPTF

4шт.

47

222-101

SLEEVE,3/16" Tube

3/16 OD

1шт.

48

222-111

TUBE NUT,7/16" - 24

NUT

1шт.

49

G15969

STRAP - rear, inj. tube, Serial Range: -2003318

1шт.

50

G15970

STRAP - front, inj. tube, Serial Range: -2003318

1шт.

51

G46395

CLAMP - injection tube, Serial Range: -2003318

1шт.

52

174-201

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

- #10-32 x 5/8" rd. hd.

4шт.

53

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex.

4шт.
