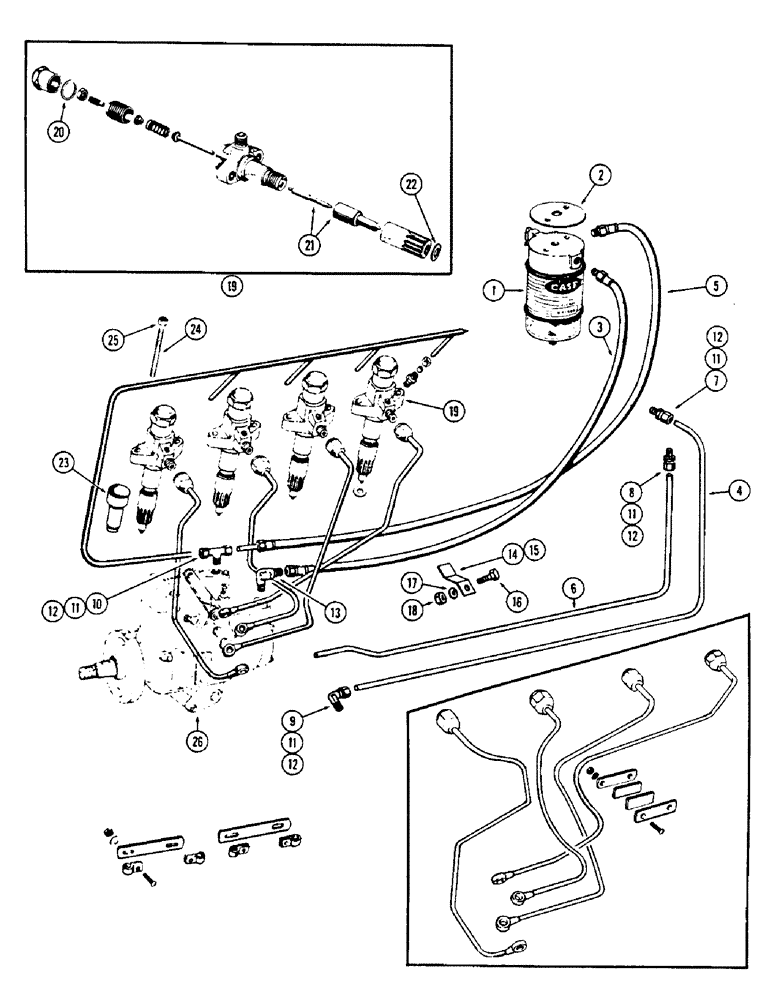

Запчасти Case W5A (010) - FUEL INJECTION SYSTEM, (188) DIESEL ENGINE (03) - FUEL SYSTEM

1

G45254

SET OF PARTS

FILTER - fuel (Repairs, Fig. 16)

1шт.

2

G46874

GASKET

-, Serial Range: filter-tank

1шт.

3

A16427

HOSE

- filter to pump (Can use in place of A15700 tube)

1шт.

4

A15700

TUBE - filter to pump (Can use in place of A16427 hose)

1шт.

5

A16428

HOSE - leak-off to filter (Can use in place of A15701 tube)

1шт.

6

A15701

TUBE - leak-off to filter (Can use in place of A16428 hose)

1шт.

7

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR (Used w/A15700 tube) (Incl. items 11 & 12)

1шт.

8

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR (Used w/A15701 tube) (Incl. items 11 & 12)

1шт.

9

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

(Used w/ A15700 tube) (incl. items 11 & 12)

1шт.

10

222-73

TEE,5/16" Flex Tube Run x 1/8" NPTF Br

(Used w/A16428 hose), Includes: Ref. 11 and 12

1шт.

11

222-103

SLEEVE,5/16" Tube

1шт.

12

222-113

TUBE NUT,9/16"-24

NUT

1шт.

13

222-1052

HYD CONNECTOR,3/16" Inv Fl

ELBOW (Used w/A16427 hose)

1шт.

14

A15702

CLAMP (Used w/metal tube)

1шт.

15

A12031

CLAMP - (Used w/hose)

1шт.

16

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

- 1/4 x 7/8" N.F. hex.

1шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

19

A49056

NOZZLE CAP

INJECTOR - fuel, Includes: Ref. 20 - 22

4шт.

20

G46885

GASKET

- cap

4шт.

21

A35085

NOZZLE CAP

NOZZLE - injection

4шт.

22

G49068

GASKET

- seat, injection, Serial Range: nozzle-liner

4шт.

23

G11724

LINER

- injector nozzle

4шт.

24

A29431

STUD

- injector to head, 3/8" N.C. x 1-3/4"

8шт.

25

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.C. hex.

8шт.

26

G37034

PUMP, FUEL INJECTION

PUMP - injection (Repairs, P. 14)

1шт.
