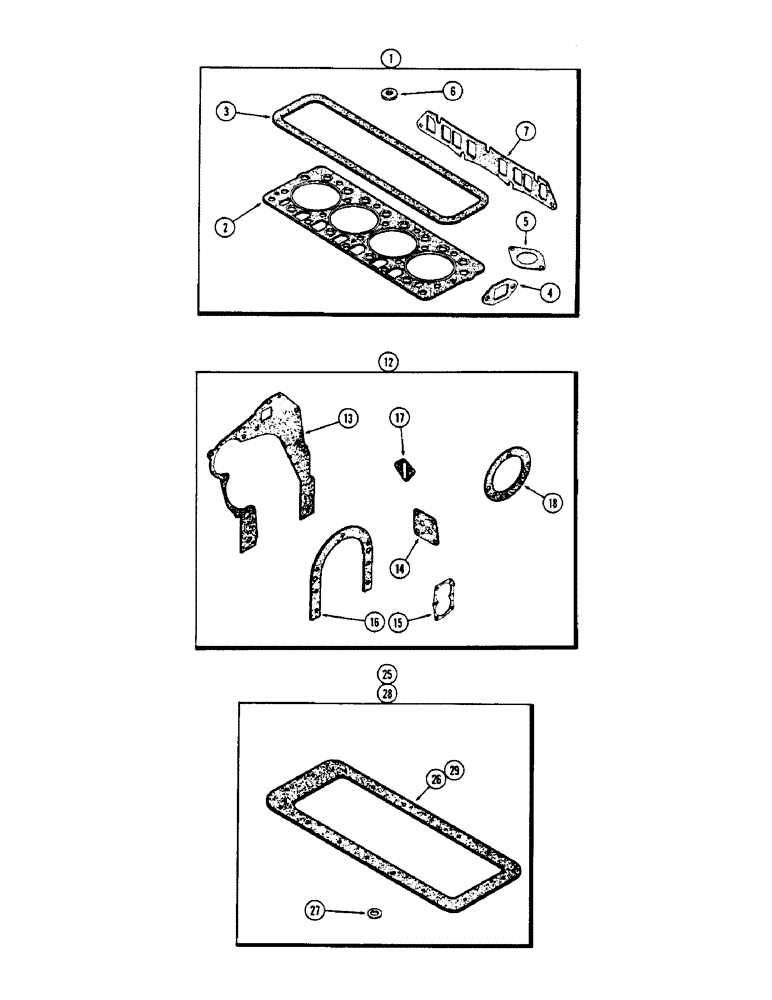

Запчасти Case W5A (064) - ENGINE GASKET KITS, (188) SPARK IGNITION ENGINE (02) - ENGINE

1

A36411

GASKET

KIT - valve grind, Includes: Ref. 2 - 7

1шт.

For complete engine overhaul order L-A36411, 1-G11990 and 1-A40712 or A35299.

1шт.

2

A36299

GASKET

-, Serial Range: head-block

1шт.

3

G46866

GASKET

- valve cover

1шт.

4

A30003

GASKET

- water outlet elbow

1шт.

5

G46826

GASKET

- carburetor mounting

1шт.

6

G46851

SEAL

- rubber, intake valve stem

4шт.

7

G46868

MANIFOLD GASKET

-, Serial Range: manifold-head

1шт.

12

G11990

X

GASKET KIT - cylinder block, Includes: Ref. 13 - 18

1шт.

For complete engine overhaul order L-A36411, 1-G11990 and 1-A40712 or A35299.

1шт.

13

G46863

GASKET

- cover, timing gear

1шт.

14

G46854

GASKET

- oil filter bracket

1шт.

15

G46852

GASKET

- cover, oil pump

1шт.

16

G46802

GASKET

- retainer, rear crankshaft

1шт.

17

G46902

GASKET

- fuel pump opening

1шт.

18

G46875

GASKET

- water pump

1шт.

25

A40712

KIT

GASKET KIT - oil pan, Includes: Ref. 26 and 27, Start Serial: 2021750

1шт.

26

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

27

A27927

OIL PAN GASKET SET

- drain plug (For 3/4" plug) (3/4 x 1 x 14 ga.)

1шт.

28

A35299

KIT

GASKET KIT - oil pan, Includes: Ref. 29 and 30, Serial Range: -2021750

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - oil, Serial Range: pan-block

1шт.

30

A30059

GASKET

- drain plug (For 7/8" plug) (29/32 x 1-3/32 x 3/32" copper asbestos)

1шт.
