Запчасти Case W5A (062) - FOOT THROTTLE CONTROL, (188) SPARK IGNITION ENGINE (02) - ENGINE

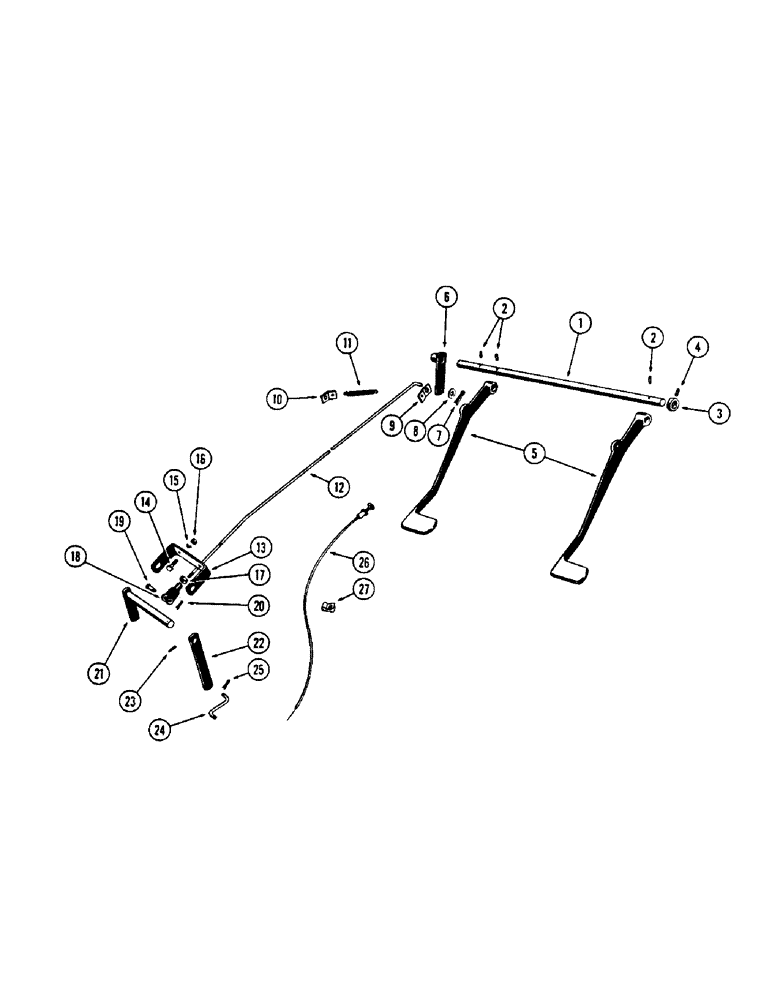

Схема запчастей Case W5A - (062) - FOOT THROTTLE CONTROL, (188) SPARK IGNITION ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A13553

SHAFT - cross, foot throttle

1шт.

2

135-133

GROOVED PIN,3/16" x 1", Type A, Hardened

PIN, GROOVED, 3/16" x 1", Type A, Hardened

3шт.

3

A13554

COLLAR - cross shaft

1шт.

4

84-44

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - set, 1/4 x 1/4" N.F., sckt. cup pt.

1шт.

5

A12405

PEDAL - foot throttle

2шт.

6

A13555

LEVER - foot throttle

1шт.

7

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

8

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

1шт.

9

A26953

CLIP

- return spring

1шт.

10

A26656

CLIP - return spring

1шт.

11

A27688

VALVE SPRING

SPRING - pedal return

1шт.

12

A13558

ROD - control, front throttle

1шт.

13

A13559

BRACKET - throttle control

1шт.

14

11-514

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - 5/16 x 7/8" N.C. rd. hd. sq. neck

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

17

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

18

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - end, throttle rod

1шт.

19

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke, end

1шт.

20

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

21

A13560

VALVE

SHAFT - throttle control

1шт.

22

A13563

LEVER - inner, throttle shaft

1шт.

23

135-332

GROOVED PIN,5/32" x 3/4", Type F

PIN - groove, 5/32 x 3" (Type 3)

1шт.

24

A13564

LINK - throttle & governor rod

1шт.

25

132-3

COTTER PIN,1/16" x 3/8"

Pin, Split (Cotter), 1/16" x 3/8"

2шт.

26

A26811

CABLE ASSY. - choke

1шт.

27

A26814

CLIP - choke cable

1шт.

Выбрано товаров: 27
