Запчасти Case W5A (058) - PISTON ASSEMBLY AND CONNECTING RODS, (188) SPARK IGNITION ENGINE (02) - ENGINE

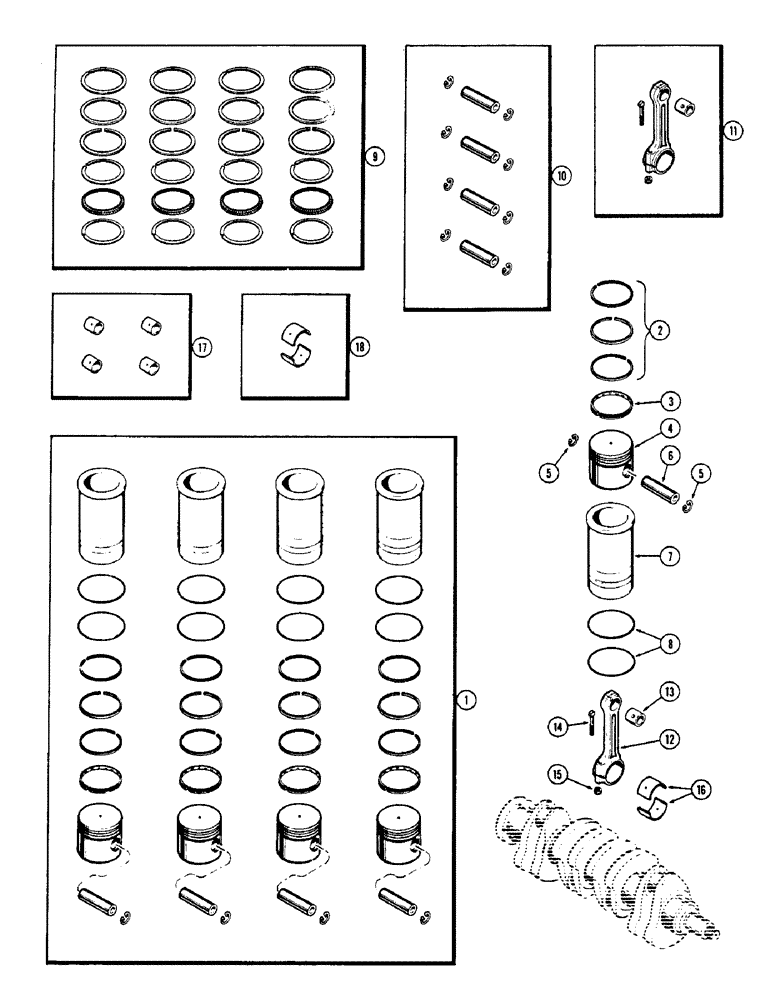

Схема запчастей Case W5A - (058) - PISTON ASSEMBLY AND CONNECTING RODS, (188) SPARK IGNITION ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A36031

SLEEVE

KIT - piston (Set of 4), Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, piston (Order ref. 9)

12шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, piston (Order ref. 9)

4шт.

4

G2092

PISTON

4шт.

5

A26915

RING, SNAP

RING - retainer, piston pin

8шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 10)

4шт.

7

G2090

SLEEVE

- cylinder

4шт.

8

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve

8шт.

9

G11999

RING

KIT - piston (Re-ring 4 pistons)

1шт.

10

A36030

KIT

PIN KIT - piston (Set of 4 pins & 8 retainers)

1шт.

11

G11172

STEM

ROD ASSY. - connecting, Includes: Ref. 12 - 16

4шт.

12

NSS

NOT SOLD SEPARAT

ROD - connecting

4шт.

13

NSS

NOT SOLD SEPARAT

BUSHING - connecting rod (Order ref. 17)

4шт.

14

G11701

BOLT

- connecting rod

8шт.

15

G49060

NUT

- connecting rod bolt

8шт.

16

NSS

NOT SOLD SEPARAT

LINERS - connecting rod (Order ref. 18)

8шт.

17

G11922

BUSHING

KIT - connecting rod (Set of 4)

1шт.

18

A36500

SEAL

LINER KIT - connecting rod (Std.) (Set of 2)

4шт.

18

A36501

BEARING LINER

LINER KIT - connecting rod (-.002") (Set of 2)

4шт.

18

A36502

LINING

LINER KIT - connecting rod (-.010") (Set of 2)

4шт.

18

A36503

BEARING LINER

LINER KIT - connecting rod (-.020") (Set of 2)

4шт.

18

A36504

KIT

LINER KIT - connecting rod (-.030") (Set of 2)

4шт.

Выбрано товаров: 22
