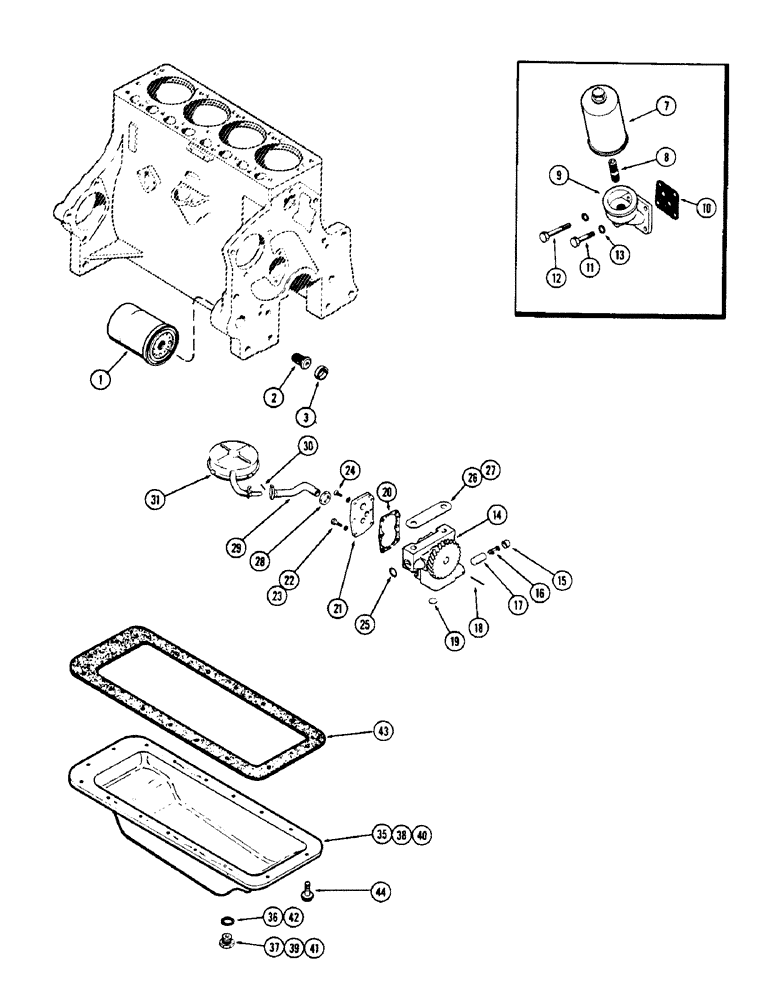

Запчасти Case W5A (056) - OIL FILTER, (188) SPARK IGNITION ENGINE, FLANGE MOUNTED OIL FILTER, OIL PUMP, OIL PAN (02) - ENGINE

1

A37189

FILTER, ELEMENT

FILTER - oil, engine (Replaces G45210)

1шт.

2

A153552

ADAPTER

-, Serial Range: filter-block

1шт.

3

A37207

X

PLUG - adapter opening

1шт.

7

G45210

FILTER, ELEMENT

FILTER - oil, engine,, bracket mounted oil filter

1шт.

8

G49061

TUBE NUT

CONNECTOR - adapting, filter, bracket mounted oil filter

1шт.

9

G2046

BRACKET - mounting, oil filter, bracket mounted oil filterbracket mounted oil filter

1шт.

10

G46854

GASKET

- mounting bracket, bracket mounted oil filter

1шт.

11

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Bracket mounted oil filter Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

12

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Bracket mounted oil filter Hex, 5/16"-18 x 2 1/4", G5

2шт.

13

92-5

LOCK WASHER,5/16"

bracket mounted oil filter 5/16"

4шт.

14

G11844

PUMP, ENGINE OIL

PUMP ASSY. - oil, engine, Includes: Ref. 15 - 21, oil pump

1шт.

15

A29260

RETAINER

- relief spring, oil pump

1шт.

16

G48513

VALVE SPRING

SPRING - relief, oil pump

1шт.

17

A155144

VALVE, PRESSURE RELI

- relief, pump, oil

1шт.

18

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, , Oil pump 1/8" x 3/8", Slotted

1шт.

19

41-102

PLUG,Exp, 1/2"

- pump body (Welch), oil pump

2шт.

20

G46852

GASKET

- pump body cover, oil pump

1шт.

21

NSS

NOT SOLD SEPARAT

COVER - pump body (Order ref. 14), oil pump

1шт.

22

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Oil pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

23

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Includes: Ref. 24, oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

24

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- mach., 1/4 x 5/8" N.C. flat hd., oil pump

2шт.

25

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port, oil pumpb

1шт.

26

G11337

SHIM,.002" Thk

Pump to front bearing cap, Oil pump .002" Thk

1шт.

27

G11338

SHIM,.005" Thk

Pump to front bearing cap, Oil pump .005" Thk

1шт.

28

223-207

LOCK NUT

NUT - lock, 3/8" P.T., oil pump

1шт.

29

G45766

PIPE, EXHAUST SYSTEM

PIPE - suction, oil pump

1шт.

30

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.

31

G45060

FLOAT

- screen, oil pump

1шт.

35

A36782

PAN

ASSY. - oil , (For 3/4" drain plug), Includes: Ref. 36 and 37, oil pan, Start Serial: 2021750

1шт.

36

A27927

OIL PAN GASKET SET

- drain plug (3/4 x 1 x 14 Ga. copper), oil pan

1шт.

37

A14280

PLUG

- drain, oil pan, 3/4" N.F. thrd., oil pan

1шт.

38

A35292

X

PAN ASSY. - oil, (For 3/8" drain plug), oil pan, Serial Range: -2021750

1шт.

39

G45786

PLUG

ASSY. - drain, 3/8" P.T., includes gasket, oil pan

1шт.

40

G11901

PAN ASSY. - oil (For 7/8" drain plug) (Order A35292), Includes: Ref. 41 and 42, oil pan, Serial Range: -2021750

1шт.

41

A30060

PLUG

- drain (7/8" N.F.), oil pan

1шт.

42

A30059

GASKET

- (29/32 x 1-3/32 x 3/32" copper asbestos), oil pan

1шт.

43

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See Fig. 64), oil pan

1шт.

44

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

- Sems, 5/16 x 3/4" indent hex. hd., oil pan

18шт.
