Запчасти Case W5A (054) - CRANKSHAFT AND FLYWHEEL, (188) SPARK IGNITION ENGINE (02) - ENGINE

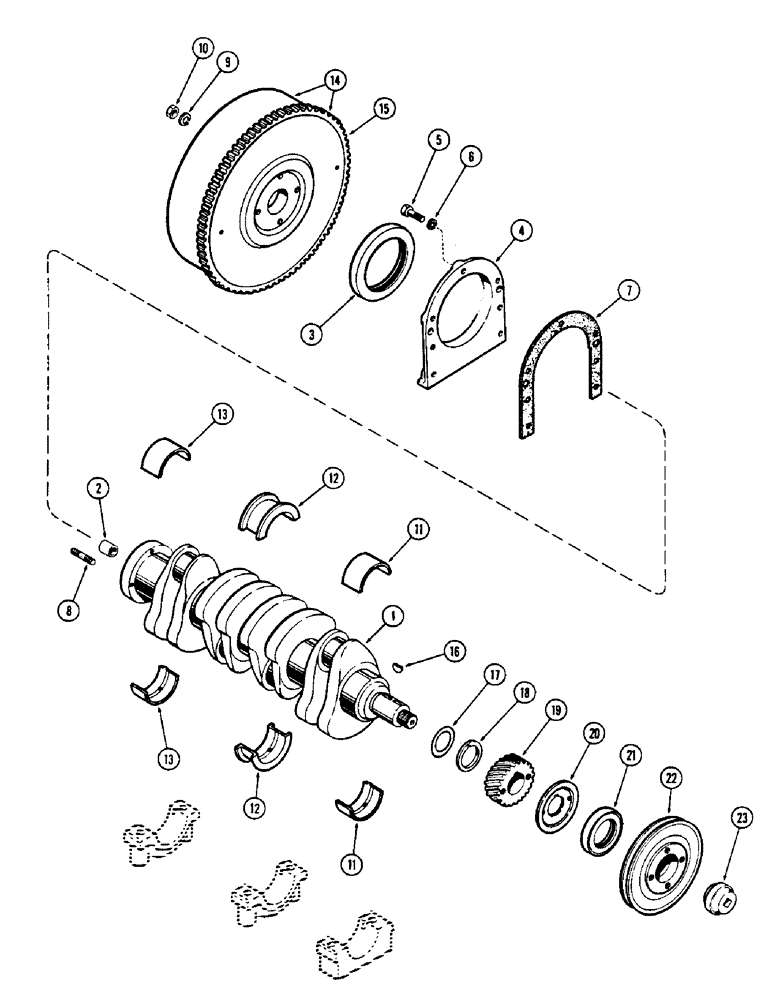

Схема запчастей Case W5A - (054) - CRANKSHAFT AND FLYWHEEL, (188) SPARK IGNITION ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

G11876

CRANKSHAFT

ASSY., Includes: Ref. 2

1шт.

2

A30024

BUSHING,15.98mm ID x 20.73mm OD x 22.23mm L

- pilot, crankshaft

1шт.

3

A36610

OIL SEAL

- oil, crankshaft, 4 x 5 x 1/2"

1шт.

4

G2017

RETAINER

- oil seal

1шт.

5

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

5

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

7

G46802

GASKET

- retainer, rear oil seal

1шт.

8

A29434

STUD

- flywheel to crankshaft, 7/16" N.C. x 1-3/4"

4шт.

9

92-7

LOCK WASHER,7/16"

4шт.

10

25-117

NUT,7/16"-20, G5

- 7/16" N.C. hex.

4шт.

11

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINER KIT - front bearing (Std.) (Set of 2)

1шт.

11

A36481

LINING

LINER KIT - front bearing (-.002") (Set of 2)

1шт.

11

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINER KIT - front bearing (-.010") (Set of 2)

1шт.

11

A36483

LINING

LINER KIT - front bearing (-.020") (Set of 2)

1шт.

11

A36484

LINING

LINER KIT - front bearing (-.030") (Set of 2)

1шт.

12

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINER KIT - center bearing (Std.) (Set of 2)

1шт.

12

A36491

LINING

LINER KIT - center bearing (-.002") (Set of 2)

1шт.

12

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER KIT - center bearing (-.010") (Set of 2)

1шт.

12

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER KIT - center bearing (-.020") (Set of 2)

1шт.

12

A36494

LINING

LINER KIT - center bearing (-.030") (Set of 2)

1шт.

13

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINER KIT - rear bearing (Std.) (Set of 2)

1шт.

13

A36496

LINING

LINER KIT - rear bearing (-.002") (Set of 2)

1шт.

13

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINER KIT - rear bearing (-.010") (Set of 2)

1шт.

13

A36498

KIT

LINER KIT - rear bearing (-.020") (Set of 2)

1шт.

13

A36499

BEARING LINER

LINER KIT - rear bearing (-.030") (Set of 2)

1шт.

14

G11903

FLYWHEEL ASSY. - engine, Includes: Ref. 15

1шт.

15

G11710

GEAR

- ring, flywheel (135 teeth)

1шт.

16

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - gear & pulley to crankshaft

2шт.

17

A29293

SHIM,.010" Thk

Crankshaft thrust .010" Thk

1шт.

18

A29294

BUSHING

SPACER - crankshaft thrust

1шт.

19

A29263

GEAR

- crankshaft

1шт.

20

A29259

SLINGER

- oil

1шт.

21

A36609

OIL SEAL

- oil, crankshaft, 2-1/8 x 3 x 1/2"

1шт.

22

G11342

X

PULLEY - fan & generator drive

1шт.

23

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

Выбрано товаров: 36
