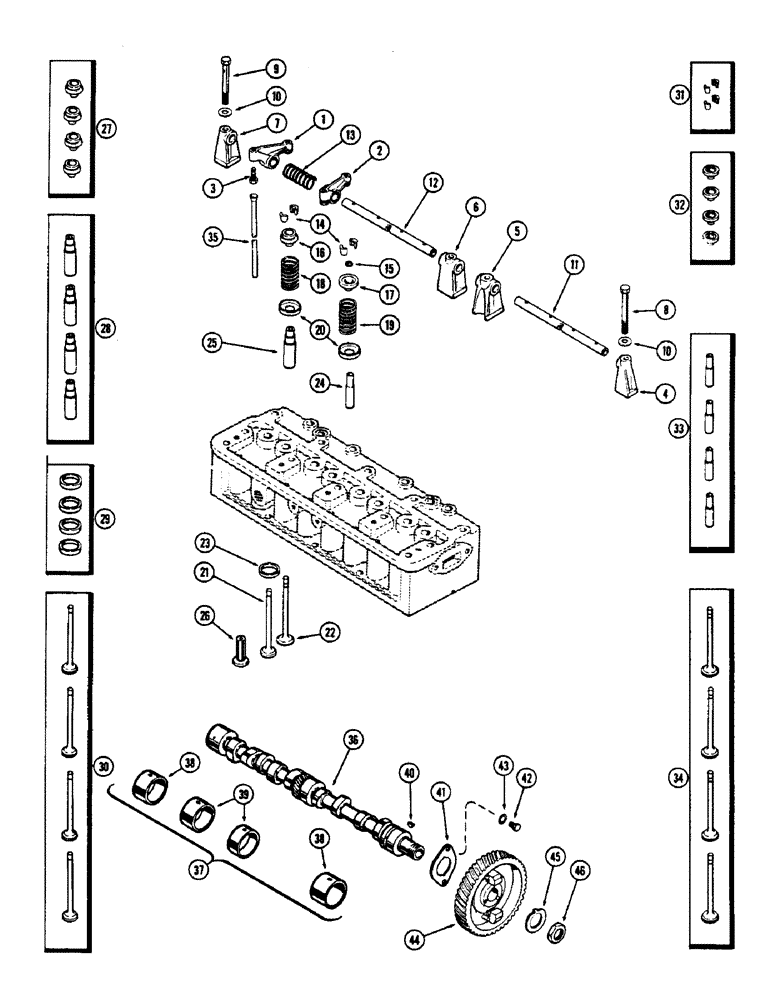

Запчасти Case W5A (050) - VALVE MECHANISM AND CAMSHAFT, (188) SPARK IGNITION ENGINE (02) - ENGINE

1

G45771

ARM

ASSY. - rocker, L.H. (Incl. Ref. 3)

4шт.

2

G45770

ARM

ASSY. - rocker, R.H. (Incl. Ref. 3)

4шт.

3

G49075

ADJUSTMENT SCREW,3/8" - 24 x 0.50"

- adjusting, rocker arm

1шт.

4

G2100

BRACKET

- front, rocker shaft

1шт.

5

G2102

BRACKET

- intermediate, rocker shaft

2шт.

6

G2101

BRACKET

- center, rocker shaft

1шт.

7

A36615

BRACKET

- rear, rocker shaft

1шт.

8

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- rocker brkt., 3/8 x 3-1/2" N.C. hex.

4шт.

9

G49067

BOLT

- drilled, 3/8", rear rocker bracket

1шт.

10

A30058

WASHER

- rocker brkt. bolts

5шт.

11

G11743

SHAFT

- rocker arm, front

1шт.

12

G11747

X

SHAFT - rocker arm, rear

1шт.

13

G48501

SPRING

- rocker arm shaft

4шт.

14

NSS

NOT SOLD SEPARAT

KEEPER - valve spring (Order ref. 30)

16шт.

15

G46851

SEAL

- intake vlave stem

4шт.

16

NSS

NOT SOLD SEPARAT

ROTO - cap, exhaust valve (Order ref. 23)

4шт.

17

NSS

NOT SOLD SEPARAT

RETAINER - intake valve (Order ref. 31)

4шт.

18

G10004

SPRING

- exhaust valve

4шт.

19

A30025

SPRING

- intake valve

4шт.

20

G49065

SEAT

- intake and exhaust valve spring

8шт.

21

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 29)

4шт.

22

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 33)

4шт.

23

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 28)

4шт.

24

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 32)

4шт.

25

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 27)

4шт.

26

A30006

TAPPET

LIFTER - push rod

8шт.

27

G11928

CAP

ROTO-CAP KIT - exhaust valve (Set of 4)

1шт.

28

G11861

GUIDE

KIT - exhaust valve (Set of 4)

1шт.

29

G11986

KIT

INSERT KIT - exhaust valve (Set of 4)

1шт.

30

G11988

VALVE

KIT - exhaust (Set of 4)

1шт.

31

G11929

LOCK

KEEPER KIT - intake & exhaust valve (Set of 4)

4шт.

32

G11927

RETAINER

KIT - int. valve spring (Set of 4 ret. & 8 keepers)

1шт.

33

G11946

GUIDE

KIT - intake valve (Set of 4)

1шт.

34

G11987

VALVE

KIT - intake (Set of 4)

1шт.

35

G47129

PUSH ROD

ROD - push, rocker arm

8шт.

36

G2091

CAMSHAFT

- engine

1шт.

37

A36409

X

BUSHING KIT - camshaft (Set of 4), Includes: Ref. 38 and 39

1шт.

38

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, front rear (1.22" wide)

2шт.

39

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, intermediate (.500" wide)

2шт.

40

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft #6, 5/32" x 5/8"

1шт.

41

A29290

PLATE

- camshaft thrust

1шт.

42

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

BOLT - thrust plate

2шт.

43

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

44

G37066

GEAR

ASSY. - camshaft, w/weights

1шт.

45

A29438

LOCK NUT

LOCK - camshaft nut

1шт.

46

A30063

NUT

- camshaft gear

1шт.
