Запчасти Case W5A (048) - CYLINDER HEAD ASSEMBLY, (188) SPARK IGNITION ENGINE (02) - ENGINE

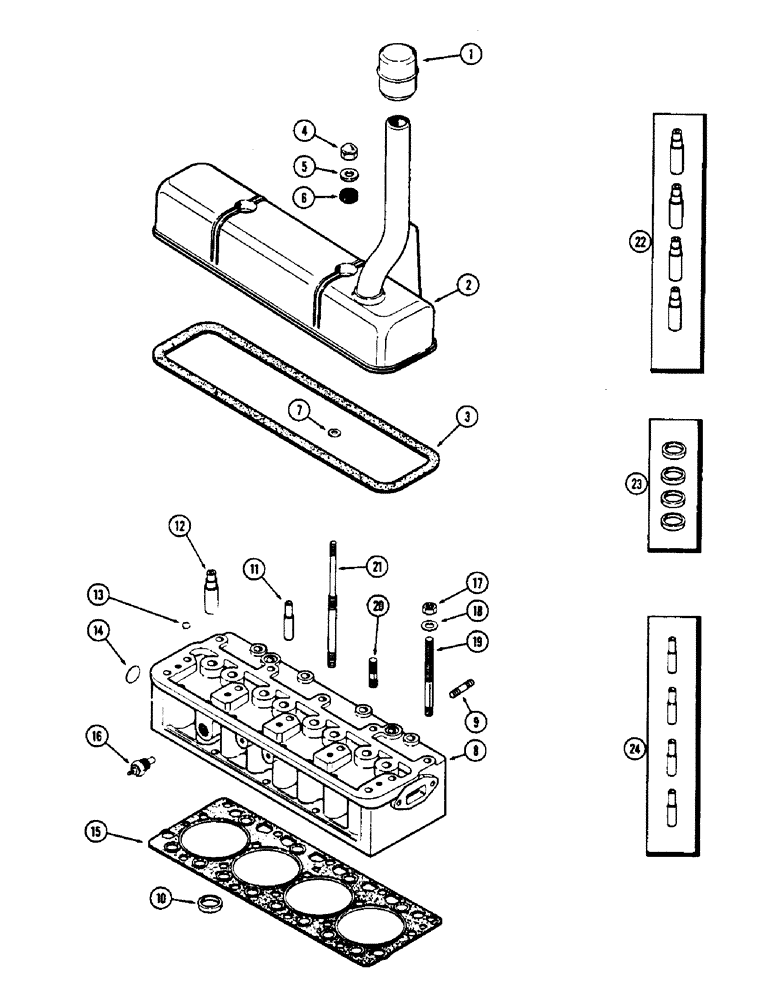

Схема запчастей Case W5A - (048) - CYLINDER HEAD ASSEMBLY, (188) SPARK IGNITION ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A36608

CAP

- oil filler and breather

1шт.

2

A35198

COVER - cylinder head

1шт.

3

G46866

GASKET

- cylinder head cover

1шт.

4

A30022

X

NUT - cylinder head cover

2шт.

5

G49400

WASHER

- cylinder head cover nut

2шт.

6

G46867

GROMMET

- cylinder head cover

2шт.

7

G11352

BUSHING

SPACER - cylinder head cover

2шт.

8

G11871

HEAD (CYLINDER)

HEAD ASSY. - cylinder, Includes: Ref. 9 - 14

1шт.

9

A29431

STUD

- manifold to cylinder head

7шт.

10

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 23)

4шт.

11

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 24)

4шт.

12

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 22)

4шт.

13

A29968

X

PLUG - top, 13/16" expansion

2шт.

14

A30079

X

PLUG - rear, 1-1/8" expansion

1шт.

15

G36299

GASKET - cylinder head

1шт.

16

A13796

X

UNIT - sending, engine temperature

1шт.

17

A30021

NUT

- cylinder head stud

19шт.

18

G49404

WASHER

- cylinder head stud

19шт.

19

A29436

STUD

- cylinder head, 1/2 x 5-7/8"

14шт.

20

A30057

STUD

- cylinder head, 1/2 x 2"

3шт.

21

G36780

STUD - cylinder head and cover

2шт.

22

G11861

GUIDE

KIT - exhaust valve (Set of 4)

1шт.

23

G11986

KIT

INSERT KIT - exhaust valve (Set of 4)

1шт.

24

G11946

GUIDE

KIT - intake valve (Set of 4)

1шт.

Выбрано товаров: 24
