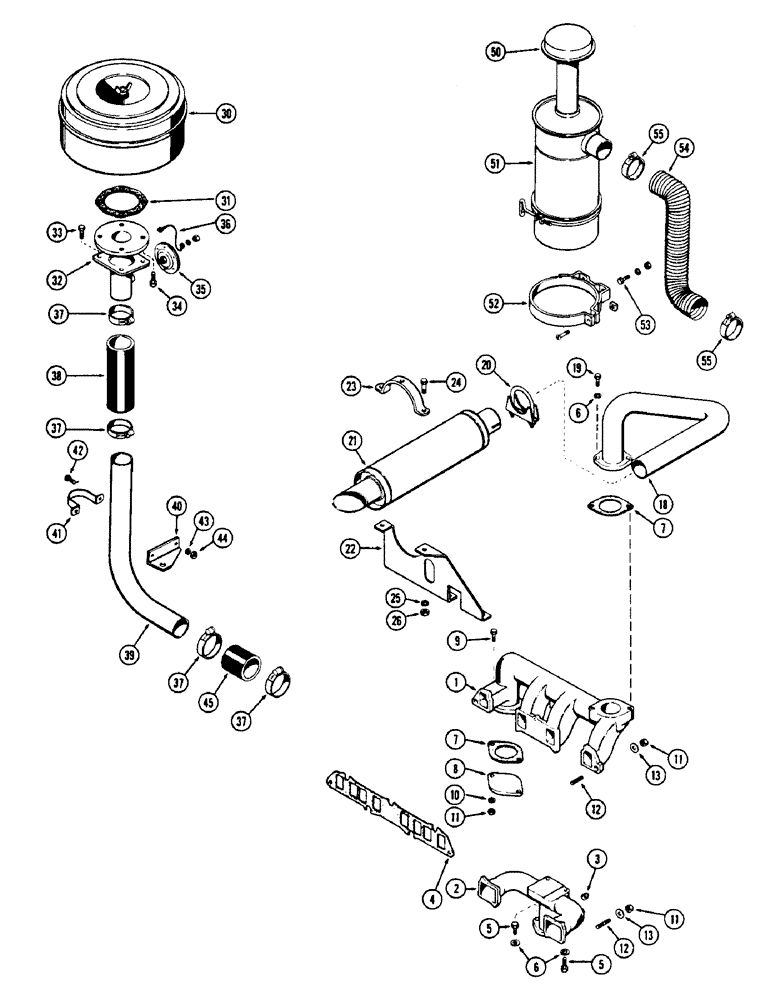

Запчасти Case W5A (046) - MANIFOLD AND MUFFLER, (188) SPARK IGNITION ENGINE (02) - ENGINE

1

G2097

MANIFOLD

- exhaust

1шт.

2

A37170

MANIFOLD

- intake (Takes 1/4" plug)

1шт.

2

G11989

MANIFOLD

- intake (Takes 1/8" plug) (Used A37170 manifold and 221-1012 plug)

1шт.

3

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - 1/4" P.T., sq. hd., Includes: Ref. 3

1шт.

3

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

1шт.

4

G46868

MANIFOLD GASKET

-, Serial Range: manifolds-head

1шт.

5

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

BOL T- 3/8 x 2-1/2" N.C. hex.

2шт.

6

92-6

LOCK WASHER,3/8"

6шт.

7

G46853

MANIFOLD GASKET

- outlet, exhaust manifold

2шт.

8

G2044

LARGE PLATE

COVER - outlet, exhaust manifold

1шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

10

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

2шт.

11

A30022

X

NUT - 3/8" N.C., hex. (Brass)

9шт.

12

A29431

STUD

- manifold to cylinder head

7шт.

13

A30058

WASHER

- manifold studs

7шт.

18

A15652

PIPE - exhaust, engine

1шт.

19

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

20

A27077

CLAMP

ASSY. - exhaust pipe

1шт.

21

A15655

MUFFLER

- engine exhaust

1шт.

22

A37990

BRACKET - muffler mounting

1шт.

23

A15656

CLAMP - muffler to mounting bracket

1шт.

24

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16 x 1" N.F. hex.

2шт.

25

92-5

LOCK WASHER,5/16"

2шт.

26

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

30

A15169

FILTER ASSY. - air (Repairs, Fig. 42), dry type air cleaner

1шт.

31

A15304

GASKET

- air filter to support, dry type air cleaner

1шт.

32

A15677

SUPPORT - air filter, dry type air cleaner

1шт.

33

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Dry type air cleaner Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

34

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Dry type air cleaner Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

35

A14739

SWITCH ASSEMBLY - air filter vacuum, dry type air cleaner

1шт.

36

A26893

WIRE - switch to air filter, dry type air cleaner

1шт.

37

214-60

CLAMP - hose, 1-13/16" to 2-3/4", dry type air cleaner

4шт.

38

A16936

HOSE - support to intake tube, dry type air cleaner

1шт.

39

A16937

TUBE - intake filter to carburetor, dry type air cleaner

1шт.

40

A16462

SUPPORT - intake tube, dry type air cleaner

1шт.

41

A15673

CLAMP - intake tube to support, dry type air cleaner

1шт.

42

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4 x 5/8" N.F. hex., dry type air cleaner

2шт.

43

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Dry type air cleaner 1/4"

2шт.

44

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex., dry type air cleaner

2шт.

45

A15675

INTAKE AIR HOSE,50.80 mm ID x 63.50 mm, SAE 20R1

HOSE 2.00" ID x 2.50", SAE 20R1 - Intake tube to carburetor, Dry type air cleaner

1шт.

50

D22685

CAP

- air cleaner, oil bath air cleaner

1шт.

51

F82166

CLEANER ASSY. - oil bath (Repairs, Fig. 42), oil bath air cleaner

1шт.

52

A19589

BAND - mtg., air cleaner, oil bath

2шт.

53

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Oil bath air cleaner Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

54

A19591

HOSE - air cleaner to carburetor, oil bath air cleaner

1шт.

55

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

oil bath air cleaner #28, 1.31/2.25 Type F Worm

2шт.
