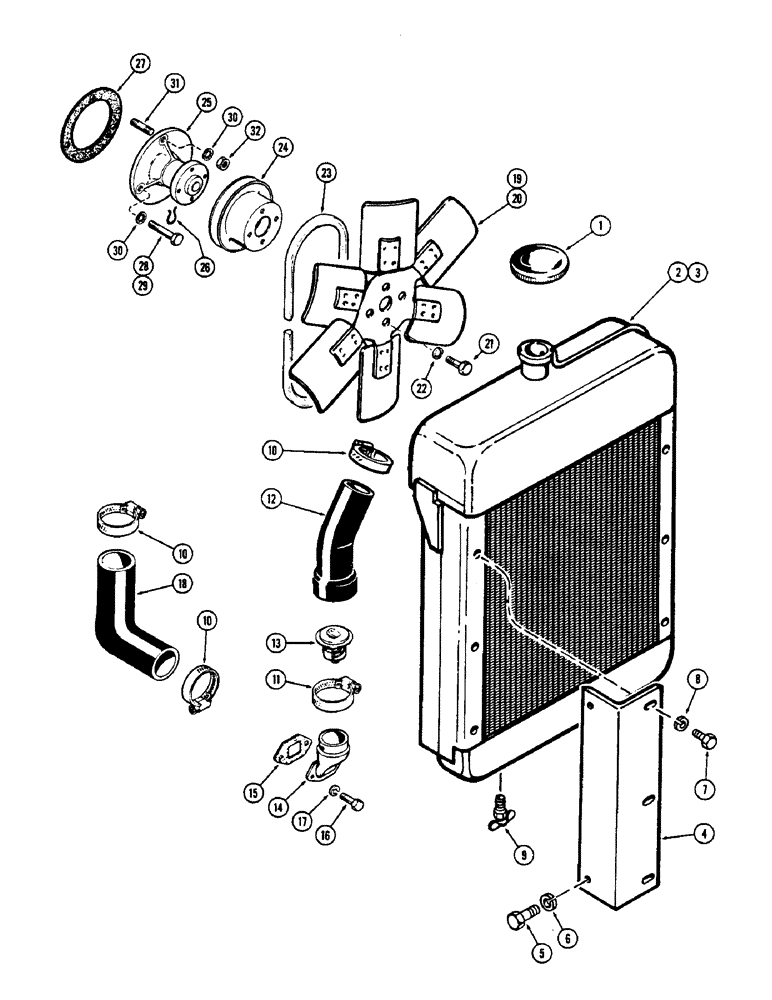

Запчасти Case W5A (044) - ENGINE COOLING SYSTEM, (188) SPARK IGNITION ENGINE (02) - ENGINE

1

A21389

CAP

- radiator pressure (7 lbs.)

1шт.

2

A15678

RADIATOR ASSY. - engine, Includes: Ref. 3

1шт.

3

A22943

SHROUD - radiator fan

1шт.

4

A15639

ANGLE - support, radiator, L.H. & R.H.

2шт.

5

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 1-1/4" N.F. hex.

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

6шт.

8

92-5

LOCK WASHER,5/16"

6шт.

9

A27862

COCK, DRAIN

VALVE - drain, radiator

1шт.

10

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

3шт.

11

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

12

A15642

HOSE - radiator, upper

1шт.

13

G11065

CASE

THERMOSTAT - water temperature

1шт.

14

G11965

ELBOW

- water outlet

1шт.

15

A30003

GASKET

- outlet, Serial Range: elbow-head

1шт.

16

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

A15643

HOSE - lower radiator

1шт.

19

A15478

FAN - radiator (Suction type)

1шт.

20

A15480

FAN

- radiator (Pusher type)

1шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

22

92-5

LOCK WASHER,5/16"

4шт.

23

G46238

BELT,0.55" W x 17.78" L

Fan Drive 0.55" W x 17.78" L

1шт.

24

G11339

PULLEY

- drive, fan & water pump

1шт.

25

G11969

X

PUMP ASSY. - water, Includes: Ref. 26 and 27

1шт.

26

A30067

RING

- retainer, shaft

1шт.

27

G46875

GASKET

- water pump

1шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

29

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4"

1шт.

30

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

31

A29433

STUD

- mtg., water pump, 3/8" N.C. x 1-1/8"

1шт.

32

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.
