Запчасти Case W5A (042) - A15169 DRY AIR FILTER, 188 DIESEL AND SPARK IGNITION (02) - ENGINE

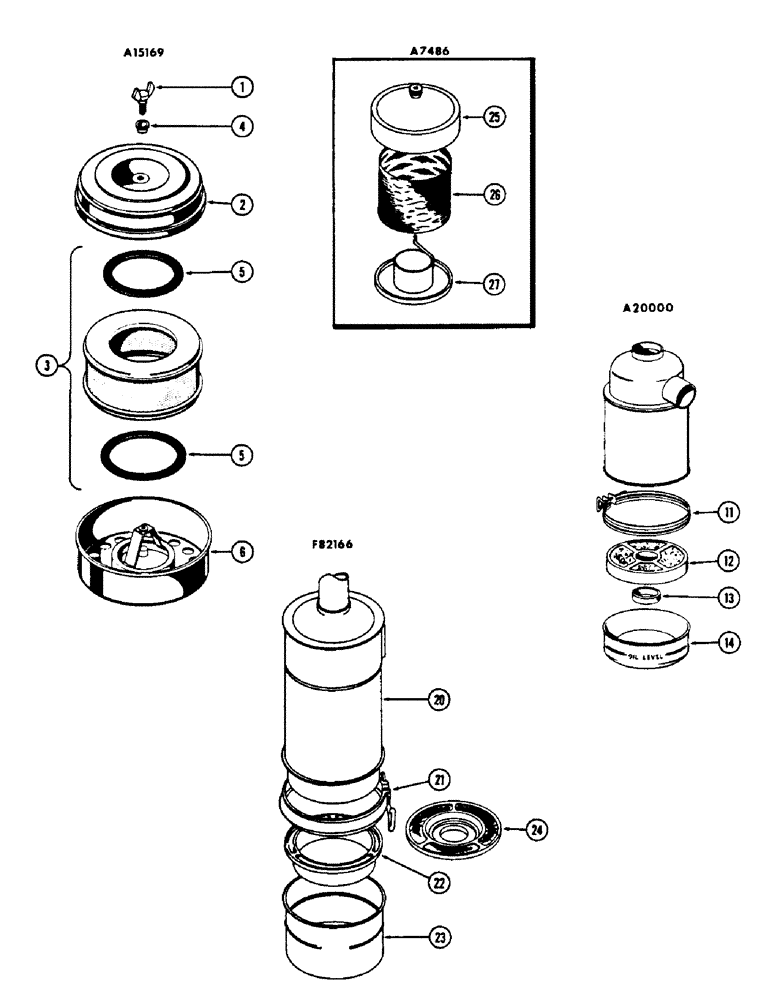

Схема запчастей Case W5A - (042) - A15169 DRY AIR FILTER, 188 DIESEL AND SPARK IGNITION (02) - ENGINE

Артикул

Название

Примечание

Количество

A15169

FILTER ASSY. - air, dry, Includes: Ref. 1 - 6

1шт.

1

A15873

BOLT - wing, cleaner cover

1шт.

2

A15241

COVER - air cleaner

1шт.

3

A15483

ELEMENT

KIT - element, air cleaner, Includes: Ref. 4 and 5

1шт.

4

A15901

WASHER - seal, cleaner cover

1шт.

5

A15242

GASKET - element

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Order A15169)

1шт.

A20000

CLEANER ASSY. - air, oil bath, Includes: Ref. 11 - 14

1шт.

11

A8298

CLAMP ASSY. - cap & screen retaining, A20000 oil bath air cleaner (188) diesel engine

1шт.

12

A8295

SCREEN - filter, A20000 oil bath air cleaner (188) diesel engine

1шт.

13

A8297

CLAMP

- retaining, oil cup, A20000 oil bath air cleaner (188) diesel engine

1шт.

14

A8296

CUP - oil, A20000 oil bath air cleaner (188) diesel engine

1шт.

F82166

CLEANER ASSY. - air, oil bath, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Order F82166), F82166 oil bath air cleaner (188) spark ignition engine

1шт.

21

G45153

CLAMP

ASSY. - oil cup, F82166 oil bath air cleaner (188) spark ignition engine

1шт.

22

G46324

CUP

- oil, inner, F82166 oil bath air cleaner (188) spark ignition engine

1шт.

23

G46325

CUP

- oil, outer, F82166 oil bath air cleaner (188) spark ignition engine

1шт.

24

F82919

SCREEN - oil, removable (Special), F82166 oil bath air cleaner (188) spark ignition engine

1шт.

A7486

X

SCREENER ASSY. - pre-air, Includes: Ref. 25 - 27

1шт.

25

A8301

COVER - pre-screener, A7486 Pre- Air screener (188) diesel engine

1шт.

26

A8300

FILTER

SCREEN - filtering, A7486 pre-air screener (188) diesel engine

1шт.

27

A8302

SLEEVE - pre-screener, A7486 pre-air screener (188) diesel engine

1шт.

Выбрано товаров: 22
