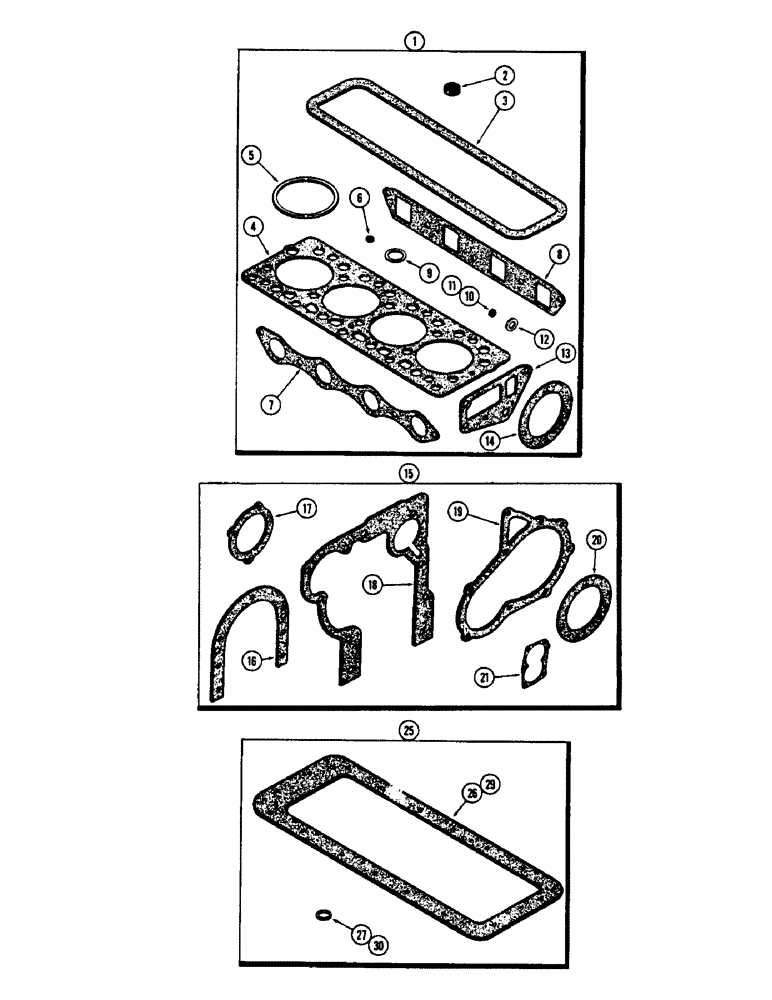

Запчасти Case W5A (038) - ENGINE GASKET KITS, (188) DIESEL ENGINE (02) - ENGINE

1

A40707

GASKET KIT

VALVE GRIND GASKET KIT, Includes: Ref. 2 - 14

1шт.

2

G46867

GROMMET

- rubber, valve cover

2шт.

3

G46866

GASKET

- valve cover

1шт.

4

A36877

GASKET

-, Serial Range: head-block

1шт.

5

A36900

RING, PISTON

RING - fire (Orange coded)

4шт.

6

G46851

SEAL

- rubber, valve stem

8шт.

7

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

8

G46871

GASKET

- intake manifold

1шт.

9

G49068

GASKET

- seat, fuel injector

4шт.

10

222-101

SLEEVE,3/16" Tube

- fuel line, 3/16" Tube

4шт.

11

222-103

SLEEVE,5/16" Tube

Fuel line 5/16" Tube

4шт.

12

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injection, Serial Range: tube-pump

8шт.

13

G46858

GASKET

- drive, Serial Range: cover-head

1шт.

14

G46875

GASKET

- water pump

1шт.

15

G11950

GASKET

CYLINDER BLOCK GASKET KIT 16 - 21

1шт.

16

G46802

GASKET

- rear oil seal retainer

1шт.

17

A30042

GASKET

- power steering pump

1шт.

18

G46857

GASKET

- pump drive cover

1шт.

19

G46859

GASKET

- pump drive cover

1шт.

20

G46875

GASKET

- water pump

1шт.

21

G46852

GASKET

- oil pump cover

1шт.

25

A40712

KIT

GASKET KIT - oil pan, Includes: Ref. 26 and 27, Start Serial: 2021750

1шт.

26

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

27

A27927

OIL PAN GASKET SET

- drain plug (For 3/4" plug) (3/4 x 1 x 14 Ga. copper)

1шт.

28

A35299

KIT

GASKET KIT - oil pan, Serial Range: -2021750

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - oil pan to block, Includes: Ref. 30

1шт.

30

A30059

GASKET

- drain plug (For 7/8" plug) (29/32 x 1-3/32 x 3/32" copper asbestos)

1шт.
