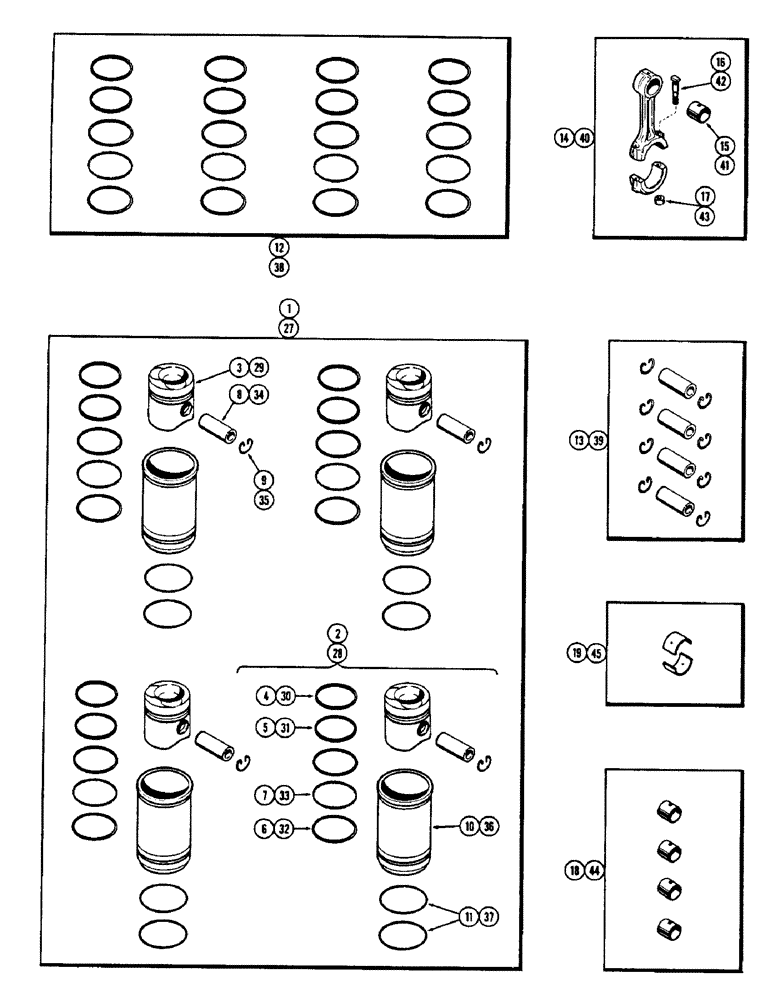

Запчасти Case W5A (036) - PISTON ASSY & CONNECTING RODS, (188) DIESL ENGINE FOR WIDE FLANGED SLEEVES (02) - ENGINE

1

A37764

PISTON & SLEEVE SET (Set of 4), Includes: Ref. 2 - 11

1шт.

2

A37769

X

PISTON & SLEEVE ASSY. (Set of 1), Includes: Ref. 3 - 11

4шт.

3

G2137

X

PISTON

1шт.

4

G4819

RING

- compression, 1st groove (See ref. 12)

1шт.

5

G4817

RING

- compression, 2nd groove (See ref. 12)

1шт.

6

G47155

RAIL

- oil control, 3rd groove (See ref. 12)

2шт.

7

G47174

SPRING

SPACER - oil control rails (See ref. 12)

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 13)

1шт.

9

G46702

RING, LOCKING

RING - snap, piston pin retaining

2шт.

10

A37763

X

SLEEVE - piston (Cylinder liner)

1шт.

A37763 liner: 4.53" across flanged area. G2110 liner: 4.45" across flanged area.

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

2шт.

12

G37075

RING

SET (Set of 4)

1шт.

13

A35771

KIT

PIN SET - piston (Set of 4 pins & 8 rings)

1шт.

14

G11847

ROD

ASSY. - connecting, Includes: Ref. 15 - 17

4шт.

15

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 18)

1шт.

16

G49064

STEP BOLT

BOLT - connecting rod cap

2шт.

17

G49060

NUT

- connecting rod bolt

2шт.

18

G11953

BUSHING

SET - piston pin (Set of 4)

1шт.

19

A36500

SEAL

LINERS - connecting rod bearing (Standard)

4шт.

19

A36501

BEARING LINER

LINERS - connecting rod bearing (-.002")

4шт.

19

A36502

LINING

LINERS - connecting rod bearing (-.010")

4шт.

19

A36503

BEARING LINER

LINERS - connecting rod bearing (-.020")

4шт.

19

A36504

KIT

LINERS - connecting rod bearing (-.030")

4шт.

27

A35772

KIT, LINER, PISTON R

PISTON & SLEEVE ASSY. (Set of 4), Includes: Ref. 28 - 37, for narrow flanged sleeves

1шт.

28

A36391

SLEEVE ASSY

PISTON & SLEEVE ASSY. (Set of 1), Includes: Ref. 29 - 37

4шт.

29

G2137

X

PISTON - cylinder (3 ring), Start Serial: 515S10665

1шт.

29

G2065

PISTON - cylinder (No longer furnished), Serial Range: -515S10665

1шт.

30

G4819

RING

- compression, 1st groove (See ref. 38)

1шт.

31

G4817

RING

- compression, 2nd groove (See ref. 38)

1шт.

32

G47155

RAIL

- oil control, 3rd groove (See ref. 38)

2шт.

33

G47174

SPRING

SPACER - oil control rails (See ref. 38)

1шт.

34

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 39)

1шт.

35

G46702

RING, LOCKING

RING - snap, piston pin retaining

2шт.

36

G2110

SLEEVE

- piston (Cylinder liner)

1шт.

A37763 liner: 4.53" across flanged area. G2110 liner: 4.45" across flanged area.

1шт.

37

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

2шт.

38

G37075

RING

SET - re-ring (Set of 12 for 4 cylinders)

1шт.

38

G11938

SET OF RINGS

RING SET - re-ring (Set of 16 for 4 cylinders on 4 ring piston)

1шт.

39

A35771

KIT

PIN SET - piston (Set of 4 pins & 8 rings)

1шт.

40

G11847

ROD

ASSY. - connecting, Includes: Ref. 41 - 43

4шт.

41

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 44)

1шт.

42

G49064

STEP BOLT

BOLT - connecting rod bearing cap

2шт.

43

G49060

NUT

- connecting rod bolt

2шт.

44

G11953

BUSHING

SET - piston pin (Set of 4)

1шт.

45

A36500

SEAL

LINERS - connecting rod bearing (Standard)

4шт.

45

A36501

BEARING LINER

LINERS - connecting rod bearing (-.002")

4шт.

45

A36502

LINING

LINERS - connecting rod bearing (-.010")

4шт.

45

A36503

BEARING LINER

LINERS - connecting rod bearing (-.020")

4шт.

45

A36504

KIT

LINERS - connecting rod bearing (-.030")

4шт.
