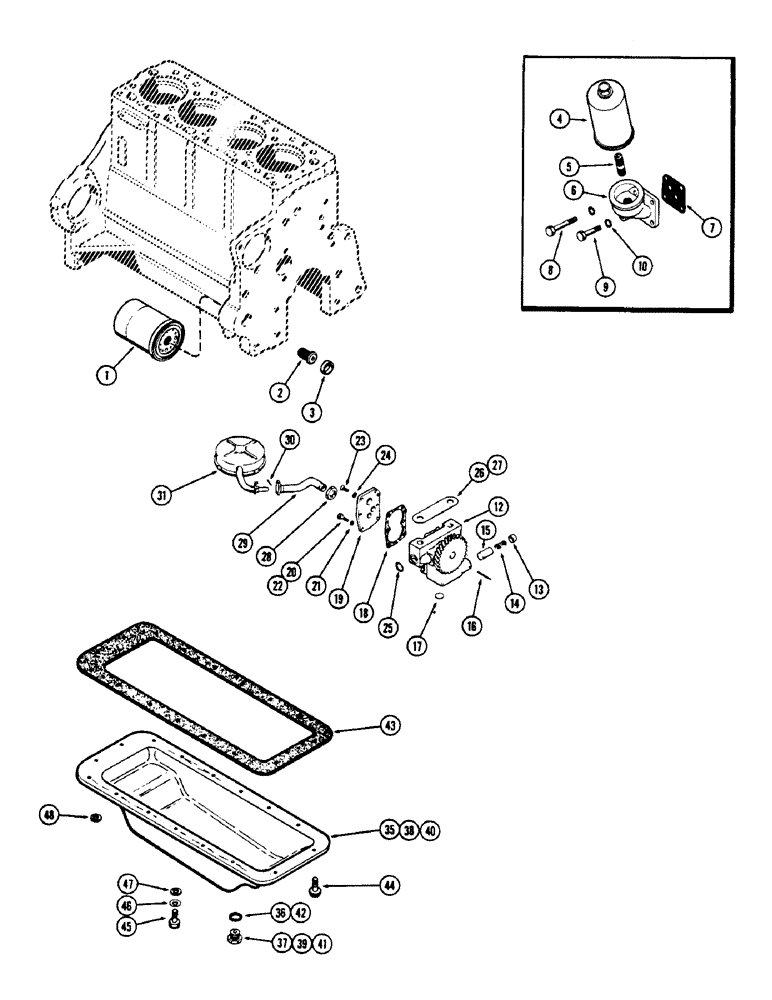

Запчасти Case W5A (034) - OIL FILTER, (188) DIESEL ENGINE, FLANGE MOUNTED / BRACKET MOUNTED / OIL PUMP / OIL PAN (02) - ENGINE

1

A37189

FILTER, ELEMENT

FILTER - oil, engine (Replaces G45210)

1шт.

2

A153552

ADAPTER

-, Serial Range: filter-block

1шт.

3

A37207

X

PLUG - adapter opening

1шт.

4

G45210

FILTER, ELEMENT

FILTER - oil, engine, bracket mounted

1шт.

5

G49061

TUBE NUT

ADAPTER - filter mounting, bracket mounted

1шт.

6

G2046

BRACKET - mounting, filter, bracket mounted

1шт.

7

G46854

GASKET

- filter bracket to block, bracket mounted

1шт.

8

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Bracket mounted Hex, 5/16"-18 x 2 1/4", G5

2шт.

9

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

- 5/16 x 5/8" N.C. hex., bracket mounted

2шт.

10

92-5

LOCK WASHER,5/16"

bracket mounted 5/16"

4шт.

12

G37070

X

PUMP ASSY. - oil, engine, oil pump, Includes: Ref. 13 - 24

1шт.

13

A29260

RETAINER

- relief spring, oil pump

1шт.

14

G48500

SPRING

- relief valve, oil pump

1шт.

15

A155144

VALVE, PRESSURE RELI

- relief, oil pump

1шт.

16

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, , Oil pump 1/8" x 1 1/8", Slotted

1шт.

17

41-102

PLUG,Exp, 1/2"

- body, oil pump

2шт.

18

G46852

GASKET

- cover to body, oil pump

1шт.

19

NSS

NOT SOLD SEPARAT

COVER - pump body (Order G37070 ref. 12), oil pump

1шт.

20

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Oil pump Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump 1/4"

4шт.

22

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Oil pump Hex, 1/4"-20 x 1 1/4", G5

1шт.

23

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- mach., 1/4 x 5/8" N.C. flat hd., oil pump

2шт.

24

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump Ext Csk Tooth, 1/4"

2шт.

25

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port, oil pump

1шт.

26

G11337

SHIM,.002" Thk

Pump to bearing cap, Oil pump .002" Thk

1шт.

27

G11338

SHIM,.005" Thk

Pump to bearing cap, Oil pump .005" Thk

1шт.

28

223-207

LOCK NUT

NUT - lock, 3/8" conduit, oil pump

1шт.

29

G45766

PIPE, EXHAUST SYSTEM

PIPE - suction, oil, oil pump

1шт.

30

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.

31

G45060

FLOAT

ASSY. - oil pump

1шт.

35

A36782

PAN

ASSY. - oil (Eng. ser. #201750 & after) (For 3/4" drain plug), Includes: Ref. 36 and 37, oil pan

1шт.

36

A27927

OIL PAN GASKET SET

- drain plug (3/4 x 1 x 14 Ga. copper), oil pan

1шт.

37

A14280

PLUG

- drain, oil pan, 3/4" N.F. thrd., oil pan

1шт.

38

A35292

X

PAN ASSY. - oil, (For 3/8" drain plug), Includes: Ref. 39, oil pan, Serial Range: -2021750

1шт.

39

G45786

PLUG

ASSY. - drain, 3/8" P.T., includes gasket, oil pan

1шт.

40

G11901

PAN ASSY. - oil (For 7/8" drain plug) (Order A352925), Includes: Ref. 41 and 42, oil pan, Serial Range: -2021750

1шт.

41

A30060

PLUG

- drain (7/8" N.F.), oil pan

1шт.

42

A30059

GASKET

(29/32 x 1-3/32 x 3/32" copper asbestos), oil pan

1шт.

43

NSS

NOT SOLD SEPARAT

GASKET - oil pan (See Fig. 38), oil pan

1шт.

44

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

- sems, 5/16 x 3/4" indent hex. hd. (Used w/A36782 pan), oil pan

18шт.

45

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Used w/A35292 pan), oil pan Hex, 5/16"-18 x 3/4", G5, Full Thd

18шт.

46

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, (Used w/A35292 pan), oil pan Int Tooth, 5/16"

18шт.

47

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64" (Used w/35292 pan), oil pan

16шт.

48

195-21

WASHER,5/16"

- 11/32 x 11/16 x 1/16" (Used w/ A35292 pan) (Oil pan front only), oil pan

2шт.
