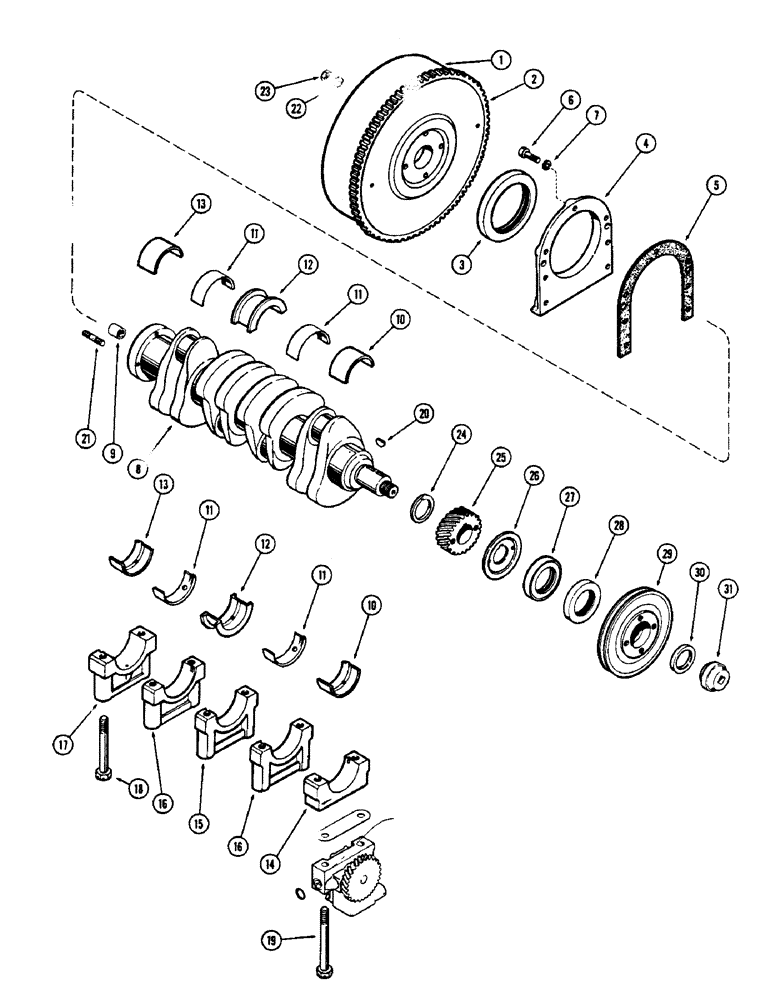

Запчасти Case W5A (032) - CRANKSHAFT AND FLYWHEEL, (188) DIESEL ENGINE (02) - ENGINE

1

G11903

FLYWHEEL ASSY. - engine, Includes: Ref. 2

1шт.

2

G11710

GEAR

- ring, flywheel (135 teeth)

1шт.

3

A36610

OIL SEAL

- oil, rear retainer

1шт.

4

G2017

RETAINER

- rear crankshaft seal

1шт.

5

G46802

GASKET

-, Serial Range: retainer-block

1шт.

6

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

6

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

8

G11889

CRANKSHAFT

- engine, Includes: Ref. 9

1шт.

9

A30024

BUSHING,15.98mm ID x 20.73mm OD x 22.23mm L

- pilot, crankshaft

1шт.

10

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (Std.) (Set of 2)

1шт.

10

A36481

LINING

LINERS - front bearing (-.002") (Set of 2)

1шт.

10

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINERS - front bearing (-.010") (Set of 2)

1шт.

10

A36483

LINING

LINERS - front bearing (-.020") (Set of 2)

1шт.

10

A36484

LINING

LINERS - front bearing (-.030") (Set of 2)

1шт.

11

A36485

LINING

LINERS - intermediate bearing (Std.) (Set of 2)

2шт.

11

A36486

LINING

LINERS - intermediate bearing (-.002") (Set of 2)

2шт.

11

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINERS - intermediate bearing (-.010") (Set of 2)

2шт.

11

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINERS - intermediate bearing (-.020") (Set of 2)

2шт.

11

A36489

LINING

LINERS - intermediate bearing (-.030") (Set of 2)

2шт.

12

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (Std.) (Set of 2)

1шт.

12

A36491

LINING

LINERS - center bearing (-.002") (Set of 2)

1шт.

12

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (-.010") (Set of 2)

1шт.

12

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINERS - center bearing (-.020") (Set of 2)

1шт.

12

A36494

LINING

LINERS - center bearing (-.030") (Set of 2)

1шт.

13

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINERS - rear bearing (Std.) (Set of 2)

1шт.

13

A36496

LINING

LINERS - rear bearing (-.002") (Set of 2)

1шт.

13

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINERS - rear bearing (-.010") (Set of 2)

1шт.

13

A36498

KIT

LINERS - rear bearing (-.020") (Set of 2)

1шт.

13

A36499

BEARING LINER

LINERS - rear bearing (-.030") (Set of 4)

1шт.

14

G2126

CAP

- bearing, crankshaft, front

1шт.

15

G2127

CAP

- bearing, crankshaft, center

1шт.

16

G2128

CAP

- bearing, crankshaft, intermediate

2шт.

17

G2129

CAP

- bearing, crankshaft, rear

1шт.

18

G49078

BOLT - bearing cap, 1/2 x 4-1/2" N.C. spec.

8шт.

19

G49077

BOLT

- bearing cap & oil pump, 1/2 x 5-1/8" N.C. spec.

2шт.

20

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft

2шт.

21

A29434

STUD

- flywheel to crankshaft, 7/16" N.F. x 1-3/4'

4шт.

22

92-7

LOCK WASHER,7/16"

4шт.

23

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

4шт.

24

A29294

BUSHING

SPACER - thrust, crankshaft

1шт.

25

A29263

GEAR

- crankshaft (24 teeth)

1шт.

26

A29259

SLINGER

- oil, crankshaft

1шт.

27

A36609

OIL SEAL

OIL SEAL - crankshaft

1шт.

28

A30028

SEAL - dust, fan pulley (No longer used)

1шт.

29

G11342

X

PULLEY - fan & generator drive

1шт.

30

A29291

COLLAR

- fan pulley nut

1шт.

31

G11263

NUT

- crankshaft pulley

1шт.
