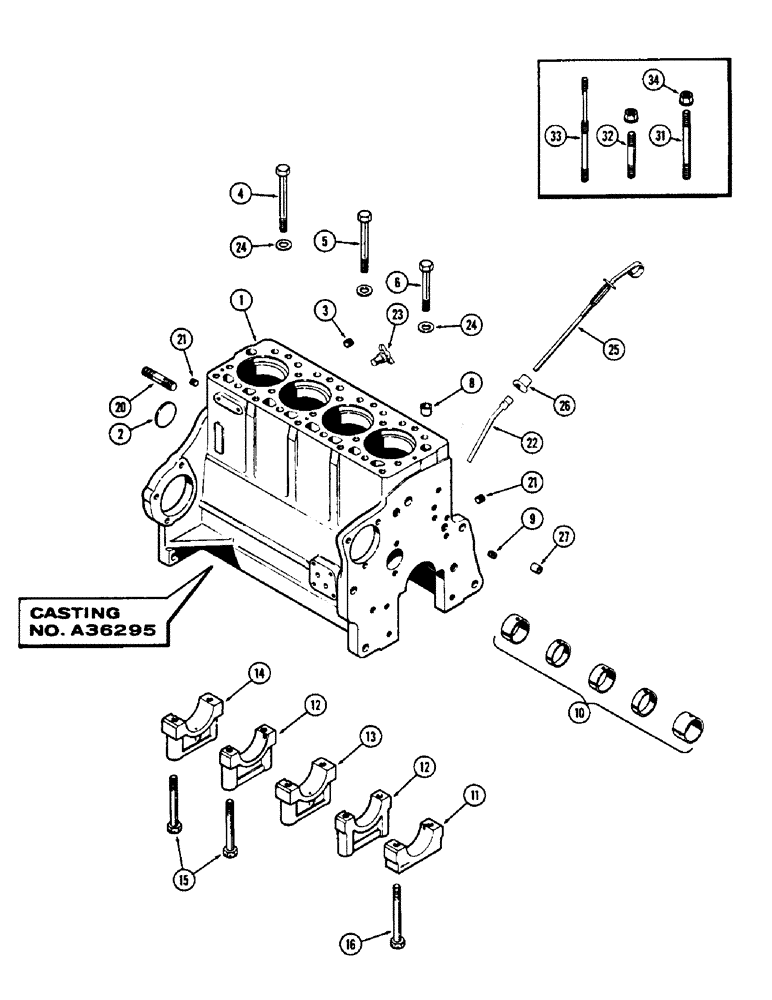

Запчасти Case W5A (030) - CYL BLOCK ASSY,(188) DIESEL ENG,W/ NARROW FLNGD SLEEVES,W/ BRACKET MTD OIL FILTER,CASTING # A36295 (02) - ENGINE

A36315

BLOCK ASSY. - cylindeer, short (Casting no. A36295) (Order A40592 from Fig. 28) (Includes stripped block, crankshaft & bearings, camshaft & gear, pistons & sleeve, conn. rods and oil pump), Includes: Ref. 1 - 23

1шт.

1

A36309

BLOCK ASSY. - stripped (Casting no. A36295) (Order A40590 from Fig. 28), Includes: Ref. 2 - 16

1шт.

2

A39241

PLUG,Exp, 2.12" dia

- camshaft opening, 2-1/8" expansion

1шт.

3

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - heater plug opening, 3/8" P.T.

1шт.

4

A35372

BOLT (SPREADER)

BOLT - head to block, 1/2 x 6" N.C. spec.

2шт.

Studs ref. 31 thru 33 can be used to replace bolts ref. 4 thru 6.

1шт.

5

A35371

BOLT

- hd. to blk., 1/2 x 5-5/8" N.C. spec.

11шт.

Studs ref. 31 thru 33 can be used to replace bolts ref. 4 thru 6.

1шт.

6

A35370

BOLT

BOLT - hd. to blk., 1/2 x 4" N.C. spec.

4шт.

Studs ref. 31 thru 33 can be used to replace bolts ref. 4 thru 6.

1шт.

8

G49608

RING

DOWEL -, Serial Range: head-block

2шт.

9

G49070

PLUG

- drilled, oil gallery front, 1/4" P.T.

1шт.

10

A41232

KIT

BUSHING SET - camshaft

1шт.

11

G2126

CAP

- front bearing, crankshaft

1шт.

12

G2128

CAP

- intermediate brg., crankshaft

2шт.

13

G2127

CAP

- center brg., crankshaft

1шт.

14

G2129

CAP

- rear bearing, crankshaft

1шт.

15

G49078

BOLT - bearing cap. 1/2 x 4-1/2" N.C. spec.

8шт.

16

G49077

BOLT

- frt. brg. cap, 1/2 x 5-1/8" N.C. spec.

2шт.

20

A29333

STUD

- engine mounting, 5/8" N.C. x 3"

2шт.

21

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

2шт.

22

G45139

BRACKET

SUPPORT - dipstick

1шт.

23

217-103

COCK, DRAIN

COCK - drain, cylinder block, 1/4" P.T.

1шт.

24

A37029

WASHER

- head bolt

17шт.

25

G37037

DIPSTICK

ASSY. - oil level, Includes: Ref. 26

1шт.

26

G46892

OIL SEAL

- rubber

1шт.

27

A29442

RING

- dowel, timing gear cover

2шт.

31

A36902

STUD

- head to block, 1/2" N.C. x 5-5/8"

11шт.

Studs ref. 31 thru 33 can be used to replace bolts ref. 4 thru 6.

1шт.

31

A36905

STUD

- head to block, 1/2" N.C. x 6-1/8"

2шт.

Studs ref. 31 thru 33 can be used to replace bolts ref. 4 thru 6.

1шт.

32

A36904

STUD

- head to block, 1/2" N.C. x 4"

4шт.

Studs ref. 31 thru 33 can be used to replace bolts ref. 4 thru 6.

1шт.

33

A36903

STUD

- head & cover

2шт.

Studs ref. 31 thru 33 can be used to replace bolts ref. 4 thru 6.

1шт.

34

A37030

FLANGE NUT

- head stud, 1/2" N.C. flanged

19шт.
