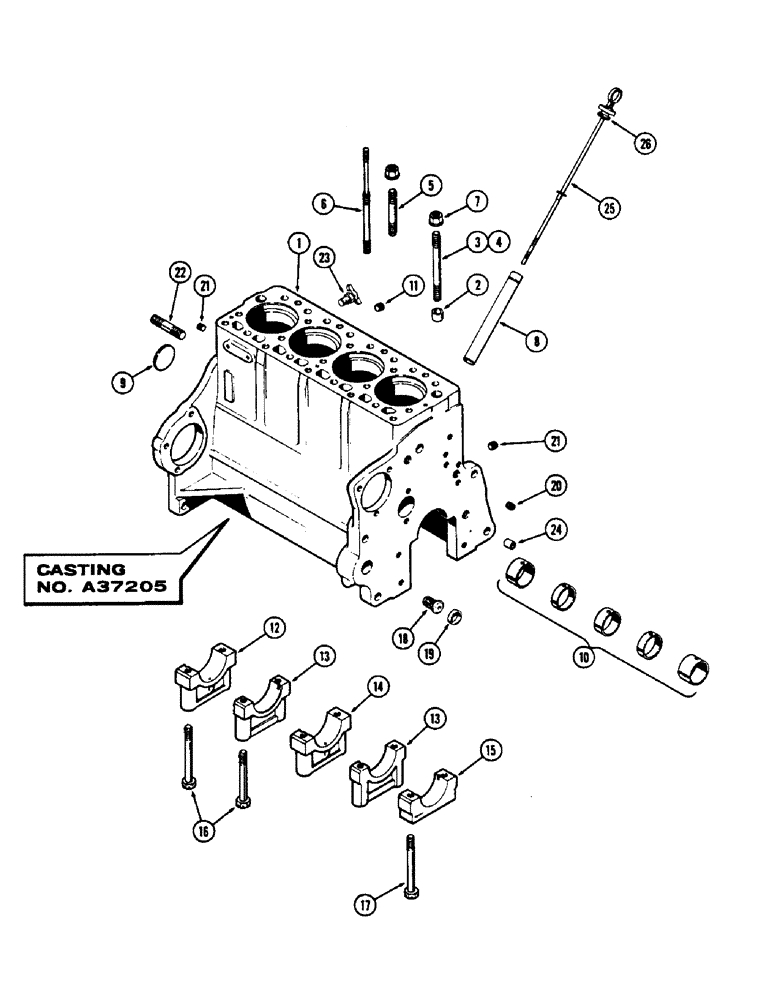

Запчасти Case W5A (026) - CYLINDER BLK ASSY, (188) DIESEL ENG., W/WIDE FLNGD SLEEVES, W/FLNG MTD. OIL FILTER, CASTING # A37205 (02) - ENGINE

A40817

BLOCK ASSY. - cylinder, short (Casting no. A37205) (Includes stripped block, crankshaft & bearings, camshaft & gear, pistons & sleeves, conn. rods and oil pump), Includes: Ref. 2 - 21

1шт.

1

A40818

BLOCK ASSY. - stripped (Casting no. A37205), Includes: Ref. 2 - 21

1шт.

2

G49608

RING

DOWEL -, Serial Range: head-block

2шт.

3

A36902

STUD

- head to block, 1/2" N.C. x 5-5/8"

11шт.

4

A36905

STUD

- head to block, 1/2" N.C. x 6"

2шт.

5

A36904

STUD

- head to block, 1/2" N.C. x 4"

4шт.

6

A36903

STUD

- head & cover

2шт.

7

A37030

FLANGE NUT

- head stud. 1/2" N.C. flanged

19шт.

8

A37149

TUBE

- dipstick

1шт.

9

A39241

PLUG,Exp, 2.12" dia

- camshaft opening, 2-1/8" expansion

1шт.

10

A41232

KIT

BUSHING SET - camshaft

1шт.

11

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - heater plug opening, 3/8" P.T.

1шт.

12

G2129

CAP

- rear crankshaft brg.

1шт.

13

G2128

CAP

- intermediate crankshaft brg.

2шт.

14

G2127

CAP

- center crankshaft brg.

1шт.

15

G2126

CAP

- front crankshaft brg.

1шт.

16

G49078

BOLT - brg. cap, 1/2 x 4-1/2" N.C. spec.

8шт.

17

G49077

BOLT

- front brg. cap, 1/2 x 5-1/8" N.C. spec.

2шт.

18

A153552

ADAPTER

- oil filter

1шт.

19

A37207

X

PLUG - filter adapter, 1" cup type

1шт.

20

G49070

PLUG

- drilled, oil gallery front

1шт.

21

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

2шт.

22

A29333

STUD

- engine mounting, 5/8" N.C. x 3"

2шт.

23

217-103

COCK, DRAIN

COCK - drain, cylinder block, 1/4" P.T.

1шт.

24

A29442

RING

- dowel, timing gear cover

2шт.

25

A37148

DIPSTICK

ASSY. - oil level, Includes: Ref. 26

1шт.

26

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick seal, 3/4 x 1 x 1/8"

2шт.
