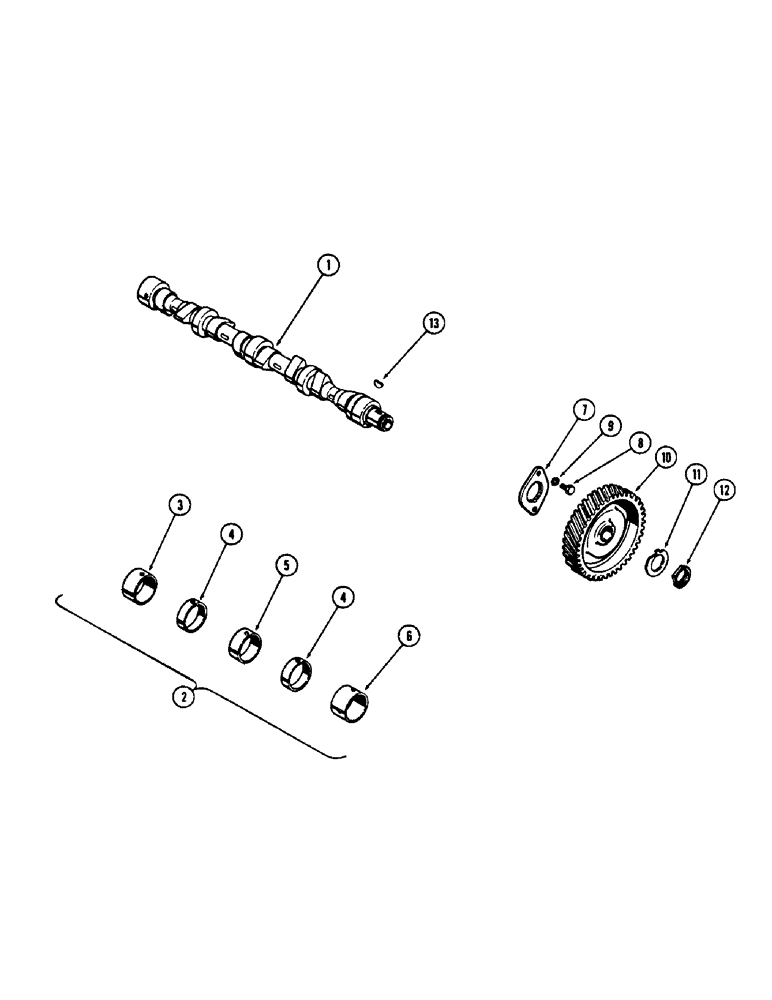

Запчасти Case W5A (024) - CAMSHAFT, (188) DIESEL ENGINE (02) - ENGINE

1

A36853

X

CAMSHAFT

1шт.

2

A41232

KIT

BUSHING SET - camshaft (Reamed to size), Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear, camshaft (1.220" wide)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate, camshaft (.50" wide)

2шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - center camshaft (.720" wide)

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING - front camshaft (1.220" wide)

1шт.

7

A29290

PLATE

- thrust, camshaft

1шт.

8

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

- thrust plate

2шт.

9

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

10

G2066

X

GEAR - camshaft

1шт.

11

A29438

LOCK NUT

WASHER - lock, gear nut

1шт.

12

A30063

NUT

-, Serial Range: gear-camshaft

1шт.

13

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to camshaft #6, 5/32" x 5/8"

1шт.
