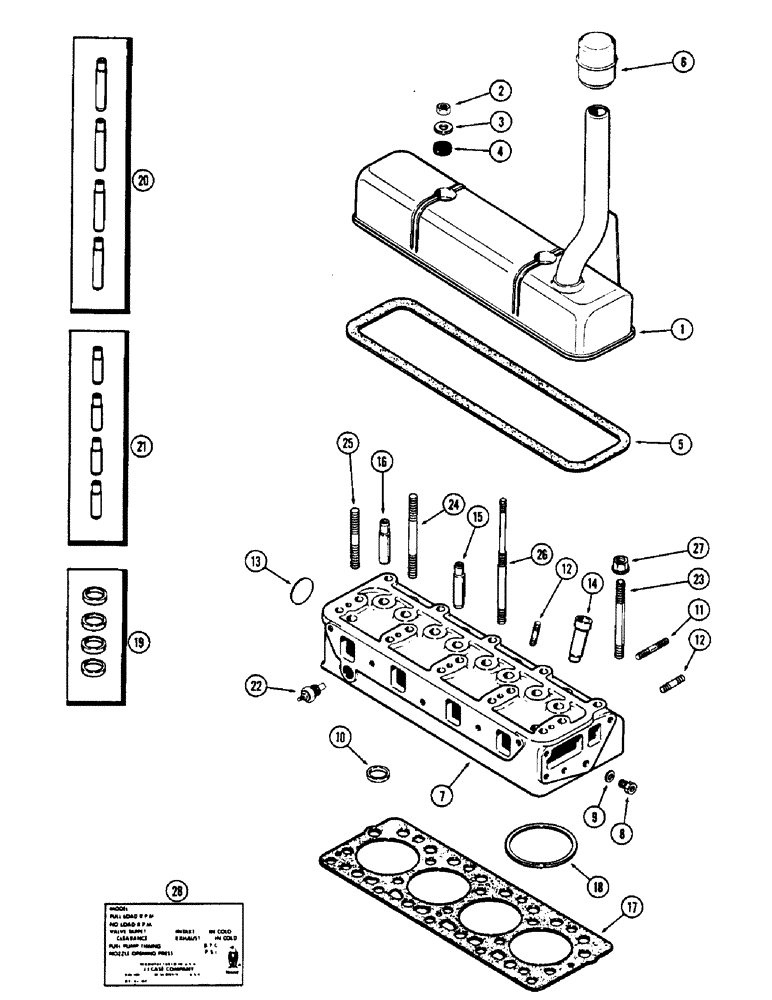

Запчасти Case W5A (020) - CYLINDER HEAD ASSEMBLY, (188) DIESEL ENGINE (02) - ENGINE

1

A35198

COVER - valve

1шт.

2

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

3

G49400

WASHER

- valve cover nut

2шт.

4

G46867

GROMMET

- rubber, valve cover

2шт.

5

G46866

GASKET

- valve, Serial Range: cover-head

1шт.

6

A36609

OIL SEAL

CAP - oil filter and breather

1шт.

7

A36764

HEAD ASSY. - cylinder (Replaces G11908) (Casting no. A36296), Includes: Ref. 8 - 16

1шт.

7

A36880

HEAD ASSY.- cylinder (Casting no. A36876), Includes: Ref. 8 - 16

1шт.

8

G49083

BOLT

- drilled, gear cover

1шт.

9

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER - Shakeproof, 1/2" ext.

1шт.

10

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 19)

4шт.

11

A35175

STUD

- manifold clamp, 3/8" N.C. x 2-7/16"

6шт.

12

A29431

STUD

- manifold & injector, 3/8" N.C. x 1-3/4"

12шт.

13

A30036

PLUG

- 1-3/4" expansion

1шт.

14

G11724

LINER

- fuel injector

4шт.

15

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 21)

4шт.

16

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 20)

4шт.

17

A36877

GASKET

GAKSET -, Serial Range: head-block

1шт.

18

A36900

RING, PISTON

RING - fire, cylinder (Std. w/orange mark)

4шт.

18

A37031

RING

- fire, cylinder (Oversize coated black)

4шт.

19

G11986

KIT

INSERTS - exhaust valve seat (Set of 4)

1шт.

20

G11946

GUIDE

S - exhaust valve stem (Set of 4)

1шт.

21

G11945

GUIDE

S - intake valve stem (Set of 4)

1шт.

22

A13796

X

SENDER - engine temperature

1шт.

23

A36902

STUD

- head to block, 1/2" N.C. x 5-5/8"

11шт.

24

A36905

STUD

- head to block, 1/2" N.C. x 6-1/8"

2шт.

25

A36904

STUD

- head to block, 1/2" N.C. x 4"

4шт.

26

A36903

STUD

- head and cover

2шт.

17

A37030

FLANGE NUT

- flanged, head stud

19шт.

28

321-886

DECAL - engine data

1шт.
