Запчасти Case W5A (018) - TIMING GEAR COVER, (188) DIESEL ENGINE (02) - ENGINE

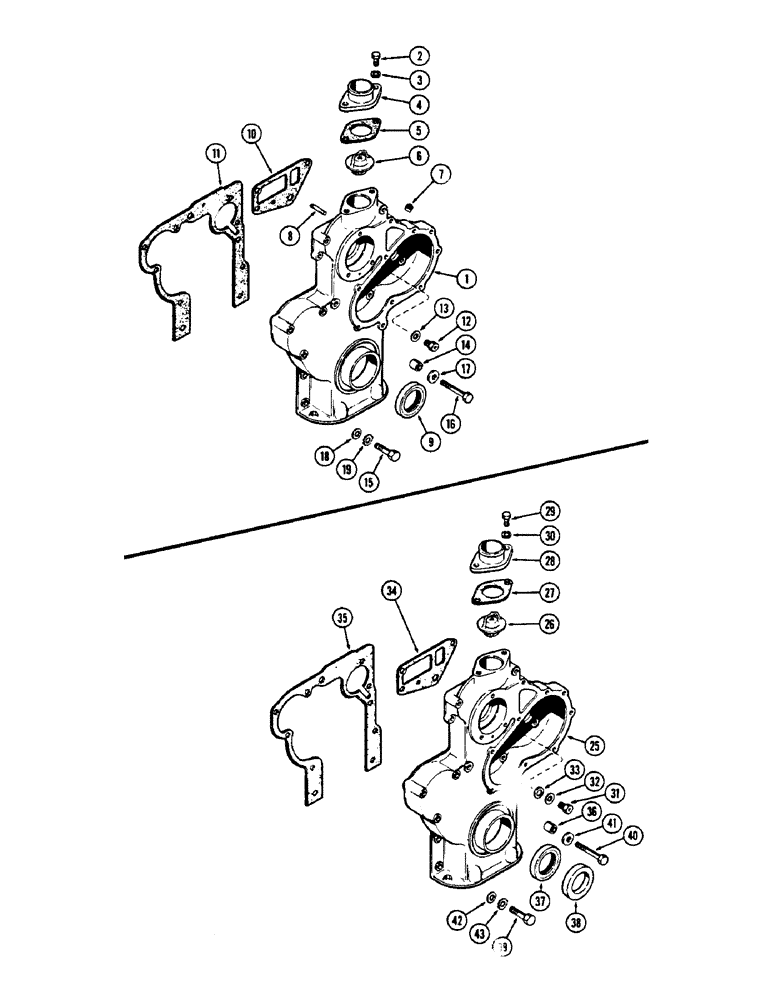

Схема запчастей Case W5A - (018) - TIMING GEAR COVER, (188) DIESEL ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A36823

COVER

ASSY. - timing, Includes: Ref. 2 - 9, Start Serial: 8190012

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

, Start Serial: 8190012

2шт.

3

92-6

LOCK WASHER,3/8"

, Start Serial: 8190012

2шт.

4

G2144

FITTING

CONNECTION - water outlet, Start Serial: 8190012

1шт.

5

G46907

GASKET

- outlet to cover, Start Serial: 8190012

1шт.

6

G45788

THERMOSTAT - water temperature (See Fig. 4), Start Serial: 8190012

1шт.

7

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" hex. sckt. hd., Start Serial: 8190012

1шт.

8

G11204

STUD

- mtg., injection pump, Start Serial: 8190012

3шт.

9

A36609

OIL SEAL

- oil, front crankshaft, Start Serial: 8190012

1шт.

10

G46858

GASKET

- cover to cylinder head, Start Serial: 8190012

1шт.

11

G46857

GASKET

- timing cover to block, Start Serial: 8190012

1шт.

12

G49083

BOLT

- drilled, 1/2 x 3/4" N.C. hex., Start Serial: 8190012

1шт.

13

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2", Start Serial: 8190012

1шт.

14

A29442

RING

- dowel, cover to block, Start Serial: 8190012

2шт.

15

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

, Start Serial: 8190012

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

, Start Serial: 8190012

3шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex., Start Serial: 8190012

1шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

, Start Serial: 8190012

1шт.

16

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex., Start Serial: 8190012

3шт.

16

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex., Start Serial: 8190012

1шт.

16

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex., Start Serial: 8190012

3шт.

17

195-25

WASHER,3/8"

- 13/32 x 13/16 x 25/32", Start Serial: 8190012

5шт.

18

92-6

LOCK WASHER,3/8"

, Start Serial: 8190012

12шт.

19

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8", Start Serial: 8190012

2шт.

25

G37090

CASE

COVER - timing gear, Includes: Ref. 26 - 33, Serial Range: -8190011

1шт.

26

G45788

THERMOSTAT, Serial Range: -8190011

1шт.

27

G46907

GASKET

- water outlet, Serial Range: -8190011

1шт.

28

G2144

FITTING

CONNECTION - water outlet, Serial Range: -8190011

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

, Serial Range: -8190011

2шт.

30

92-6

LOCK WASHER,3/8"

, Serial Range: -8190011

2шт.

31

G49083

BOLT

- drilled, cover to head, Serial Range: -8190011

1шт.

32

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2", Serial Range: -8190011

1шт.

33

A30058

WASHER

- plain, drilled bolt, Serial Range: -8190011

1шт.

34

G46858

GASKET

- cover to head, Serial Range: -8190011

1шт.

35

G46857

GASKET

- cover to block, Serial Range: -8190011

1шт.

36

A29442

RING

- dowel, cover to block, Serial Range: -8190011

2шт.

37

A36609

OIL SEAL

- oil, crankshaft, Serial Range: -8190011

1шт.

38

A30028

SEAL - dust, crankshaft (No longer used), Serial Range: -8190011

1шт.

39

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

, Serial Range: -8190011

2шт.

39

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

, Serial Range: -8190011

3шт.

39

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex., Serial Range: -8190011

1шт.

40

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

, Serial Range: -8190011

1шт.

40

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex., Serial Range: -8190011

3шт.

40

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex., Serial Range: -8190011

1шт.

40

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex., Serial Range: -8190011

3шт.

41

195-25

WASHER,3/8"

- 13/32 x 13/16 x 25/32", Serial Range: -8190011

5шт.

42

92-6

LOCK WASHER,3/8"

, Serial Range: -8190011

12шт.

43

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8", Serial Range: -8190011

2шт.

Выбрано товаров: 48
