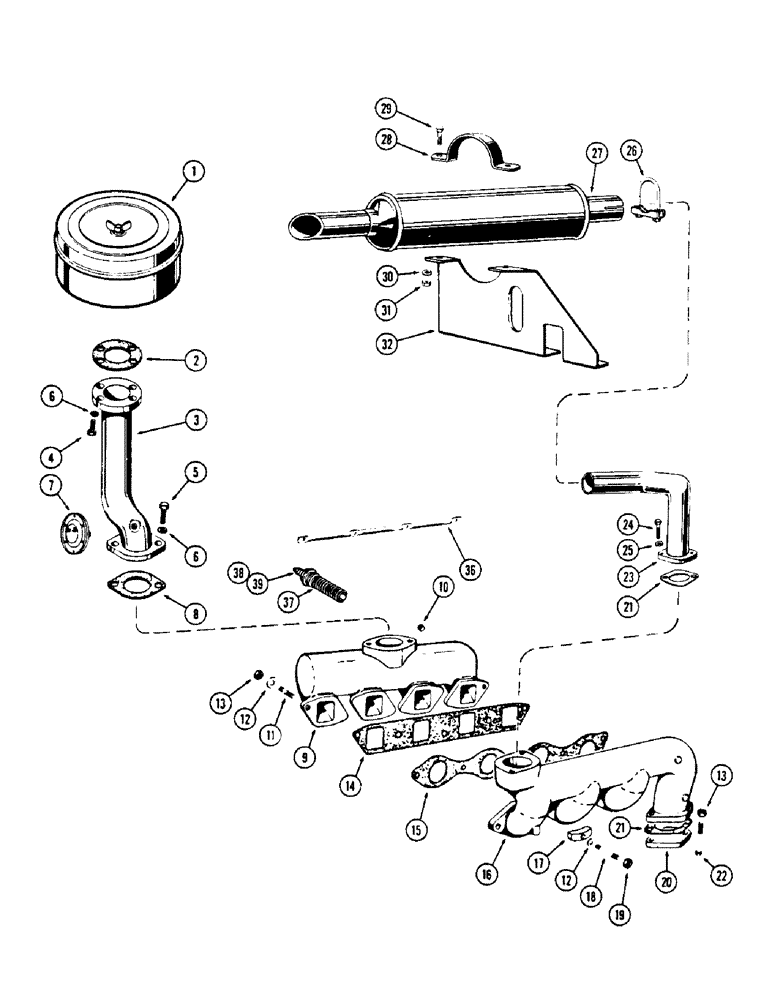

Запчасти Case W5A (008) - AIR CLEANER - MANIFOLD - MUFFLER, (188) DIESEL ENGINE, BRACKET MOUNTED (02) - ENGINE

1

A15169

FILTER ASSY. - air (Repairs, Fig. 42)

1шт.

2

A15304

GASKET

- air, Serial Range: cleaner-support

1шт.

3

A15686

SUPPORT - air filter

1шт.

4

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

5

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 1-1/4" N.F. hex.

2шт.

6

92-6

LOCK WASHER,3/8"

6шт.

7

A14739

SWITCH ASSY. - warning, air filter

1шт.

8

A15687

GASKET -, Serial Range: support-manifold

1шт.

9

G2123

X

MANIFOLD - intake (Use A35782 manifold, A20916 gasket, A21483 cable, A37775 heater & 129-503 nut)

1шт.

9

A35782

MANIFOLD

- intake (Takes A37775 heater)

1шт.

10

221-1010

PLUG,Sq Hd, 1/4"-18 NPTF

- intake manifold, 1/4" P.T.

1шт.

11

A29431

STUD

- intake & exhaust manifold

4шт.

12

92-6

LOCK WASHER,3/8"

10шт.

13

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. (Seez-Pruf) (Brass)

7шт.

14

G46871

GASKET

- intake manifold

1шт.

15

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

16

G2113

EXHAUST MANIFOLD

MANIFOLD - exhaust

1шт.

17

A35028

CLAMP

- intake & exhaust manifold

6шт.

18

A35175

STUD

- 3/8" N.C. x 2-7/16"

6шт.

19

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

20

G2044

LARGE PLATE

COVER - outlet, exhaust manifold

1шт.

21

G46853

MANIFOLD GASKET

- outlet cover & exhaust manifold

2шт.

22

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

23

A15683

PIPE - exhaust

1шт.

24

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

A27077

CLAMP

ASSY. - muffler to exhaust pipe

1шт.

27

A15655

MUFFLER

- exhaust

1шт.

28

A15656

CLAMP -, Serial Range: muffler-bracket

1шт.

29

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16 x 1" N.F. hex.

2шт.

30

92-5

LOCK WASHER,5/16"

2шт.

31

25-115

NUT,5/16"-24, G5

- 5/16" N.C. hex

2шт.

32

A37990

BRACKET -, Serial Range: muffler-support

1шт.

36

G15955

BAR

- connecting, heater plug, manifold heater

1шт.

37

G45259

PLUG

HEATER - manifold (18 M.M. thrds.) (Used w/G2123)

4шт.

37

A37775

HEATER

- manifold (1-1/8" N.F. thrds.)

1шт.

38

139-971

NUT - #8-32 lock, manifold heater

4шт.

39

131-972

NUT

- #10-32 lock, manifold heater

4шт.
