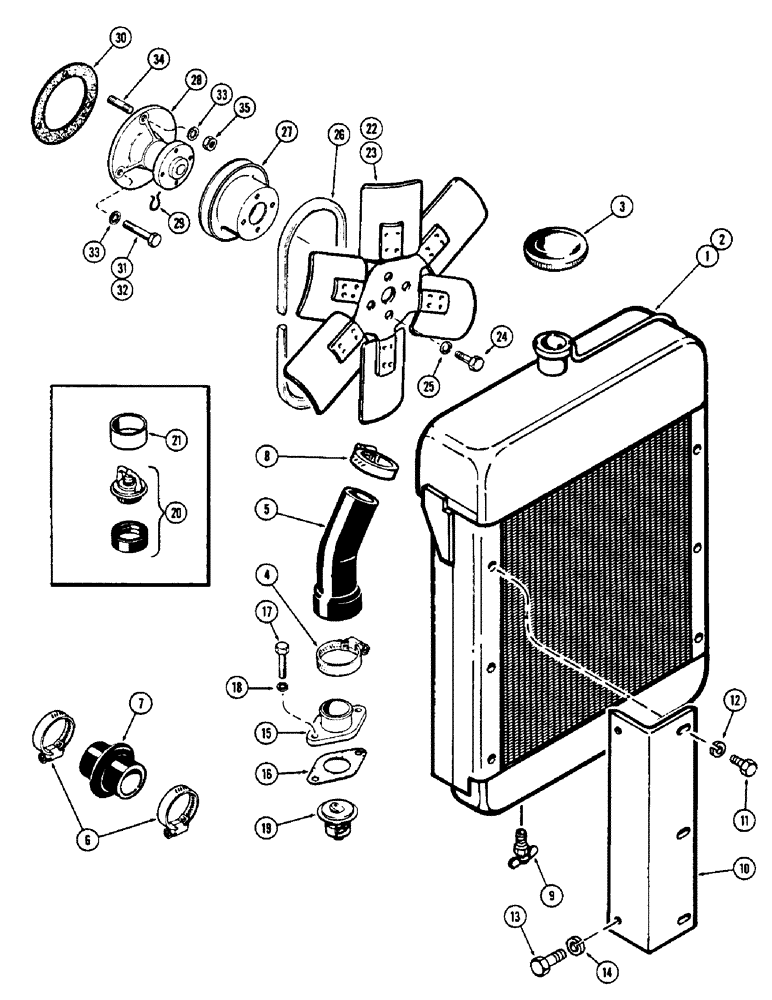

Запчасти Case W5A (004) - ENGINE COOLING SYSTEM, (188) DIESEL ENGINE (02) - ENGINE

1

A15678

SPARE PART RADIATOR - engine coolant, Includes: Ref. 2

1шт.

2

A22943

SHROUD - radiator fan

1шт.

3

A21389

CAP

CAP - pressure, radiator (7 lbs.)

1шт.

4

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, #36, 1.81/2.75 Type F Worm

1шт.

5

A15642

SPARE PART HOSE - radiator, upper

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

1шт.

7

A16419

SPARE PART HOSE - outlet, radiator

1шт.

8

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

9

A27862

COCK, DRAIN

VALVE - drain, radiator

1шт.

10

A15639

SUPPORT - mtg., radiator L.H. & R.H.

2шт.

11

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

6шт.

12

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

6шт.

13

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

BOLT - 3/8 x 1-1/4" N.F. hex.

4шт.

14

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

15

G2144

FITTING

HOUSING - outlet and thermostat

1шт.

16

G46907

GASKET

GASKET - hsg., outlet & thermostat

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

19

G45788

SPARE PART THERMOSTAT - used w/bolt-on housing

1шт.

20

G37088

THERMOSTAT

THERMOSTAT - used w/out bolt-on housing

1шт.

21

G49625

SUPPORT

SLEEVE - for use w/G37088 thermostat

1шт.

22

A15480

FAN

FAN - radiator, pusher type

1шт.

23

A15478

SPARE PART FAN - radiator, suction type

1шт.

24

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

25

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

10шт.

26

G46238

BELT,0.55" W x 17.78" L

Fan

1шт.

27

G11339

PULLEY

PULLEY - fan and water pump

1шт.

28

G11939

PUMP

PUMP ASSY. - water, Includes: Ref. 29 and 30

1шт.

28

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

28

A146584R

REMAN-WATER PUMP

Reman For New P/N G11939, Pump Assy

1шт.

28

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

28

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

28

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

29

A30067

RING

RING - retainer

1шт.

30

G46875

GASKET

GASKET - mtg., water pump

1шт.

31

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8 x 2-3/4" N.C. hex.

1шт.

32

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

33

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int.

3шт.

34

A29433

STUD

STUD - mtg., water pump, 3/8" N.C. x 1-1/8"

1шт.

35

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

1шт.
