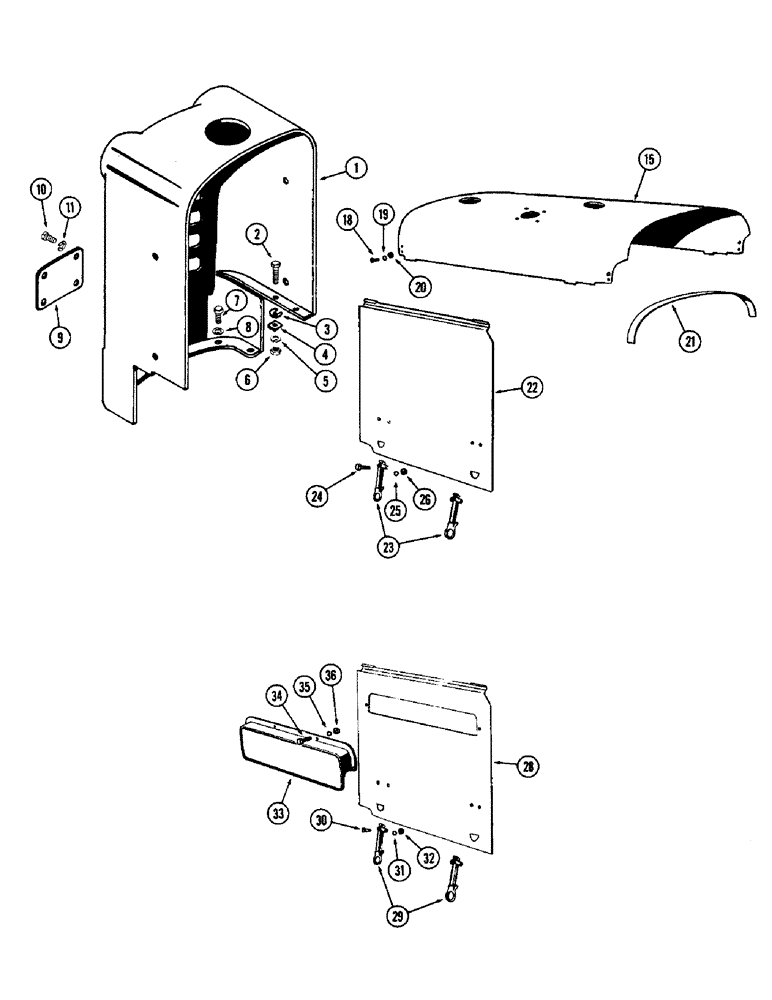

Запчасти Case W5 (102) - GRILLE - HOOD AND SIDE PANELS (09) - CHASSIS

1

A13504

GRILLE - radiator

1шт.

2

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

- 1/2 x 2" N.F. hex.

4шт.

3

A22164

SHIM - spacer

1шт.

4

195-903

WASHER

- bowl

4шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

7

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.F. hex.

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

A13505

PLATE - name, "Case"

1шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

11

92-8

LOCK WASHER,1/2"

4шт.

15

A13522

HOOD - engine

1шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

19

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

8шт.

20

92-6

LOCK WASHER,3/8"

8шт.

21

A13372

MOULDING - head, anti-squeak (29")

1шт.

22

A16472

PANEL - side, hood, R.H. (w/out plate)

1шт.

22

A16473

PANEL - side, hood, L.H. (w/out plate)

1шт.

23

A12514

LATCH

- panel lock

2шт.

24

173-118

SCREW,Sl Rnd Hd, #12 - 24 x 5/8"

- mach., #12 x 5/8" rd. hd.

4шт.

25

492-11012

LOCK WASHER,#12

WASHER, LOCK, #12

4шт.

26

225-14112

NUT,#12-24

- #12 N.C. hex.

4шт.

28

A13518

PANEL - side, R.H. (w/plate)

1шт.

28

A13519

PANEL - side, L.H. (w/plate)

1шт.

29

A12514

LATCH

- panel lock

2шт.

30

173-118

SCREW,Sl Rnd Hd, #12 - 24 x 5/8"

- mach., #12 x 5/8" rd. hd.

4шт.

31

492-11012

LOCK WASHER,#12

WASHER, LOCK, #12

4шт.

32

225-14112

NUT,#12-24

- #12 N.C. hex.

4шт.

33

A12474

PLATE - hood side

2шт.

34

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

35

92-5

LOCK WASHER,5/16"

8шт.

36

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

8шт.
