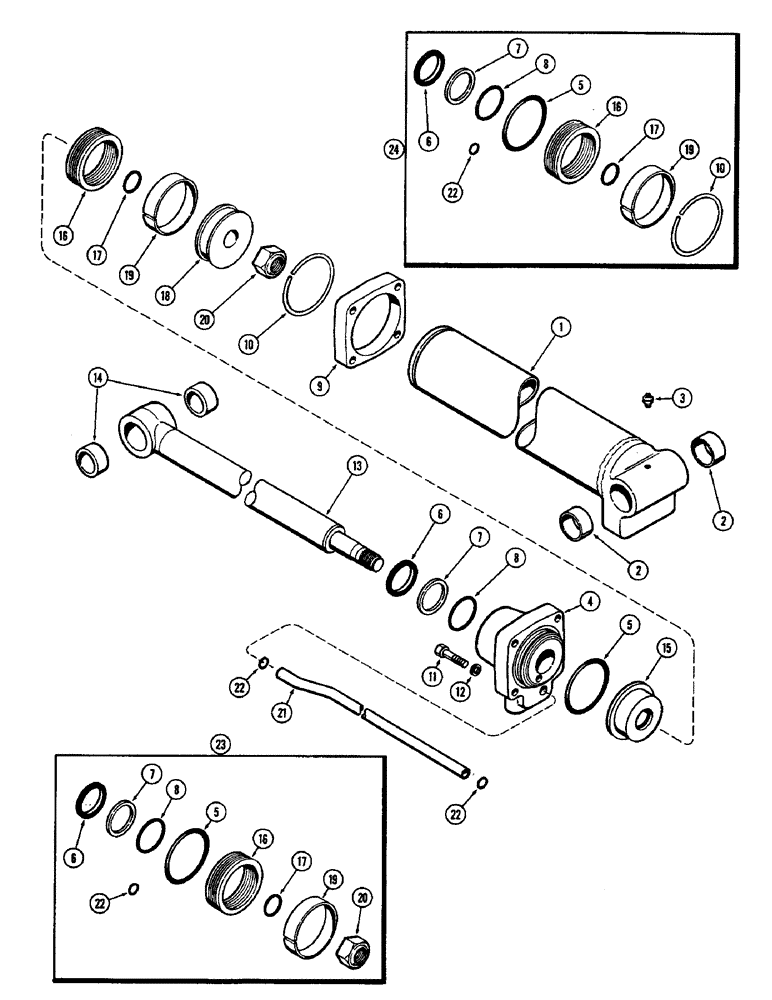

Запчасти Case W5 (120) - LIFT CYLINDER (08) - HYDRAULICS

L10869

LIFT CYLINDER

CYLINDER ASSY. - lift, R.H., Includes: Ref. 1 - 22

1шт.

A13442

X

CYLINDER ASSY. - lift, R.H. (Orig. equip.) (Order L10869), Includes: Ref. 1 - 22

1шт.

L10870

CYLINDER ASSY. - lift, L.H., Includes: Ref. 1 - 22

1шт.

A13443

CYLINDER ASSY. - lift, L.H. (Orig. equip.) (Order L10870), Includes: Ref. 1 - 22

1шт.

1

A13444

BODY & END ASSY., Includes: Ref. 2

1шт.

2

A13386

BUSHING

- end

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

4

A13452

HEAD - cylinder, R.H.

1шт.

4

A13453

HEAD - cylinder, left hand

1шт.

5

A27348

O-RING,3.734" ID x 4.012" OD x 0.139"

"O" RING - head, 3-3/4 x 4 x 1/8" (See refs. 23 & 24)

1шт.

6

A14230

RING

- head, inner (See refs. 23 & 24)

1шт.

7

A13902

WASHER

- back-up (Leather) (See refs. 23 & 24)

1шт.

8

A13893

WIPER

- piston rod (See refs. 23 & 24)

1шт.

9

A13455

CLAMP -, Serial Range: head-body

1шт.

10

A13454

RING, SNAP

RING - snap, clamp stop (See ref. 24)

1шт.

11

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- head to clamp, 1/2 x 2-1/2" N.F. hex.

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

A13448

ROD ASSY. - piston

1шт.

14

A13386

BUSHING

- piston rod end

2шт.

15

A17338

PISTON - cylinder (For A13442 & A13443 also order A17339, A17340, A17441 & A27355)

1шт.

16

A17339

PACKING

- piston (1-1/8" wide for L10869 & L10870)

1шт.

16

A14247

MISC PACKAGING

PACKING - piston (1" high for A13442 & A13443) (See ref. 23)

1шт.

17

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - piston, 1-3/16 x 1-7/16 x 1/8" (See refs. 23 & 24)

1шт.

18

A17340

PLATE ASSY.

PLATE - piston follower (Used w/L10869 & L10870)

1шт.

18

A13459

PLATE - piston follower (Used w/A13442 & A13443) (Order ref. 15, 18 & A19129 kit)

1шт.

19

A17341

RING

- wear, follower plate (1" wide w/L10869 & L10870) (See ref. 24)

1шт.

19

A13457

RING

- wear, follower plate (1/2" wide w/A13442 & A13443) (See ref. 23)

1шт.

20

131-61

LOCK NUT,1 1/8"-12

NUT - piston to rod, 1-1/8" N.F. self-locking (See ref. 23)

1шт.

21

L10871

TUBE - port (Used w/L10869 & L10870) 0.625" OD x 31.188, 0.81" L

1шт.

21

A13460

BOOM

TUBE - port (Used w/A13442 & A13443)

1шт.

22

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - tube, 5/8 x 13/16 x 3/32" (See refs. 23 & 24)

2шт.

23

A17734

KIT

- cylinder repair (Used w/A13442 & A13443) (Incl. items 5 thru 8, 16, 17, 19, 20 & 22)

1шт.

24

L30952

KIT

- cylinder repair (Used w/L10869 & L10870) (Incl. items 5 thru 8, 10, 17, 19 & 22)

1шт.
