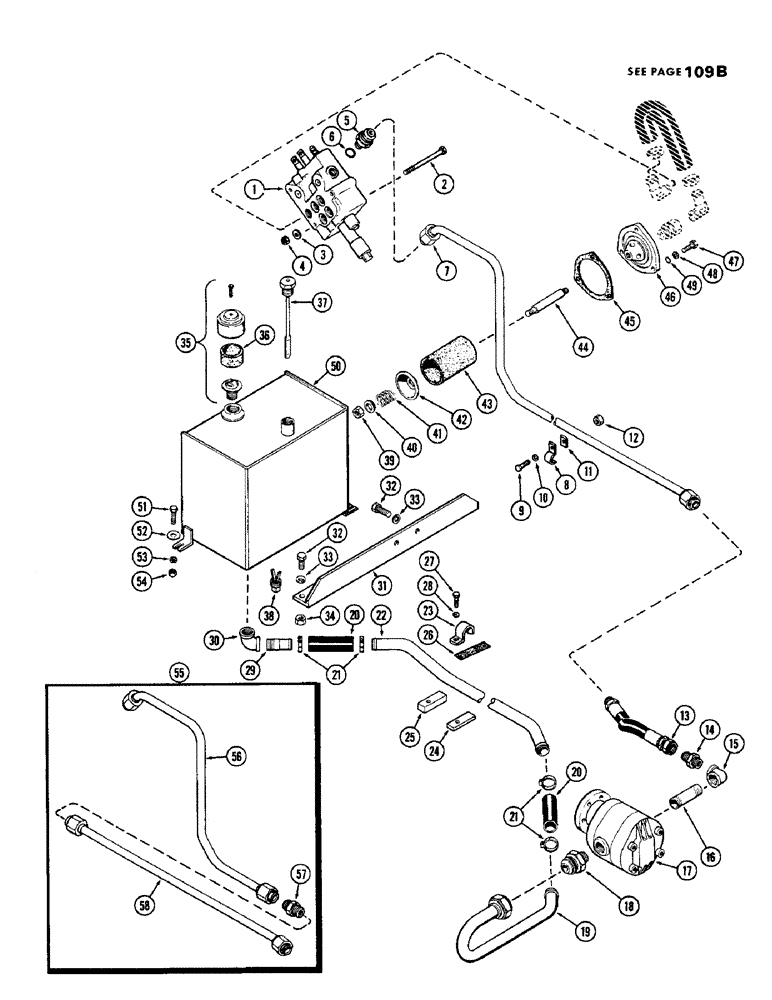

Запчасти Case W5 (108) - HYDRAULIC RESERVOIR CIRCUIT (08) - HYDRAULICS

1

A56146

VALVE ASSY. - control (Repairs figure 114)

1шт.

2

16-668

BOLT - 3/8 x 4-1/4" N.F. hex.

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

3шт.

5

A13681

X

ADAPTER - fitting, hydraulic, Includes: Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - adapter

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE ASSY. - valve to pump hose (Order ref. 55)

1шт.

8

A13680

CLAMP - hydraulic tube

2шт.

9

14-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

2шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

A13679

SPACER - clamp

1шт.

12

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

13

A16392

HOSE - hydraulic, pump to pressure tube

1шт.

14

218-447

HYD CONNECTOR,1-3/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - hydraulic, 7/8 x 3/4" P.T. str.

1шт.

15

221-1378

ELBOW,90º, 3/4" NPT

- hydraulic, 3/4" P.T. x 90 degrees

1шт.

16

221-1218

NIPPLE, LUBE

NIPPLE - hydraulic, 3/4" P.T. x 3-1/2"

1шт.

17

14230

HOSE

PUMP ASSY. - hydraulic oil (Repairs, figure 106)

1шт.

18

218-460

ADAPTER

- pump outlet

1шт.

19

A16693

TUBE ASSY. - pump suction

1шт.

20

A15794

HOSE - hydraulic tube

2шт.

21

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

4шт.

22

A13685

TUBE ASSY. - pump suction

1шт.

23

A13686

CLAMP - hydraulic, suction tube

2шт.

24

A13687

SPACER - rear, suction tube

1шт.

25

L10691

SPACER - suction tube

1шт.

26

A13688

ANTI-SQUEAK - suction tube clamp

2шт.

27

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

1шт.

28

92-5

LOCK WASHER,5/16"

1шт.

29

A12294

NIPPLE, LUBE

NIPPLE - suction, Serial Range: tube-tank

1шт.

30

221-1379

ELBOW

- oil tank, 1" P.T. x 90 degrees

1шт.

31

A13440

ANGLE - support, oil tank rear

1шт.

32

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2 x 1-1/2" N.F. hex.

4шт.

33

29-8

LOCK WASHER

WASHER - lock, 1/2"

4шт.

34

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

35

A9238

BREATHER

ASSY. - oil tank, Includes: Ref. 36

1шт.

36

A10059

FILTER, ELEMENT

ELEMENT - filter, breather

1шт.

37

A13725

DIPSTICK - oil level

1шт.

38

A17429

PLUG

- drain, oil tank (Magnetic)

1шт.

39

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

1шт.

40

A13730

WASHER - support, filter

1шт.

41

A27379

SPRING

- retainer, filter element

1шт.

42

A27666

RETAINER

- filter element

1шт.

43

A27377

FILTER CARTRIDGE

ELEMENT - filter, hydraulic oil

1шт.

44

A13729

STUD - support, filter

1шт.

45

A28265

GASKET

- mounting, filter flange

1шт.

46

A13728

FLANGE - oil filter

1шт.

47

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- mounting, filter flange (3/7 x 1-1/4" N.F. hex.)

3шт.

48

92-6

LOCK WASHER,3/8"

3шт.

48

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

3шт.

49

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - sealing, flange bolt

3шт.

50

A13715

TANK - reservoir, hydraulic oil

1шт.

51

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8 x 1" N.F. hex.

3шт.

52

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

3шт.

53

92-6

LOCK WASHER,3/8"

3шт.

54

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

3шт.

55

A19336

REPLACEMENT KIT - pressure tube, Includes: Ref. 56 - 58

1шт.

56

A19333

TUBE ASSY. - pressure, Serial Range: valve-connector

1шт.

57

218-437

ADAPTER - hydraulic, pressure tube

1шт.

58

A19335

TUBE ASSY. - hydraulic pressure rear

1шт.
