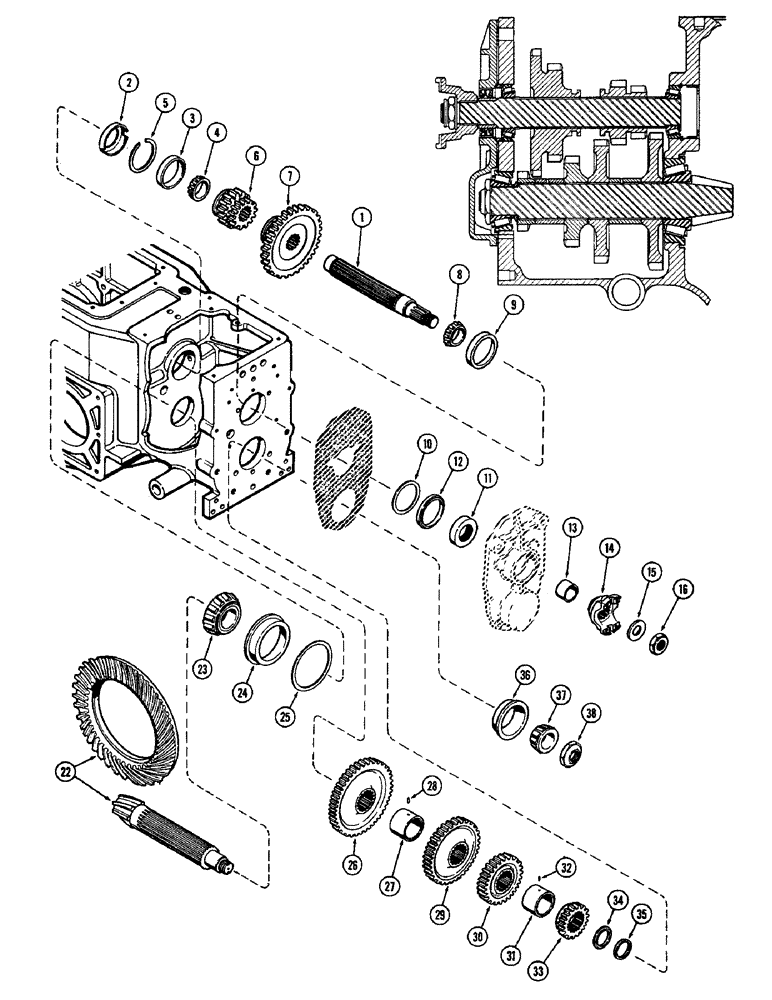

Запчасти Case W5 (084) - MANUAL TRANSMISSION, MAINSHAFT, COUNTERSHAFT (06) - POWER TRAIN

1

A13626

MAINSHAFT

1шт.

2

G10616

CUP

- oiling

1шт.

3

A29977

BEARING CUP

CUP - bearing, front

1шт.

4

A29976

ROLLER BEARING

CONE - bearing, front

1шт.

5

A29971

RING

- snap, front bearing retaining

1шт.

6

A38154

GEAR WHEEL

GEAR - 1st and 2nd (16 and 21 teeth)

1шт.

7

G17161

GEAR - 3rd and 4th (33 and 44 teeth)

1шт.

8

G10424

CONE

- bearing, rear

1шт.

9

G10425

CUP

- bearing, rear

1шт.

10

G10341

SHIM,.005" Thk

Rear bearing .005" Thk

1шт.

10

G10340

SHIM,.007" Thk

Rear bearing .007" Thk

1шт.

11

G13821

OIL RESERVOIR

SEAL - oil, yoke, 1-9/16 x 2-7/16 x 11/16"

1шт.

12

G10422

OIL SEAL

- oil, front, 1-9/16 x 2-7/16 x 15/32"

1шт.

13

A13627

COLLAR

- front oil seal sleeve, 1-1/4 x 1-9/16 x 1"

1шт.

14

A13629

YOKE

- torque tube (Splined)

1шт.

15

F62073

WASHER

- yoke

1шт.

16

131-583

LOCK NUT,1"-14

NUT - yoke retaining, 1" N.F. flex loc

1шт.

22

G14420

GEAR

DIFFERENTIAL RING GEAR & PINION (Matched set), countershaft

1шт.

23

G15217

CONE

- bearing, front, countershaft

1шт.

24

G15206

BEARING CUP

CUP - bearing, front, countershaft

1шт.

25

G17117

SHIM,.016" Thk

Front bearing, Countershaft .016" Thk

1шт.

25

G17045

SHIM,.018" Thk

Front bearing, Countershaft .018" Thk

1шт.

25

G17046

SHIM,.020" Thk

Front bearing, Countershaft .020" Thk

1шт.

25

G17047

SHIM,.022" Thk

Front bearing, Countershaft .022" Thk

1шт.

25

G17048

SHIM,.025" Thk

Front bearing, Countershaft .025" Thk

1шт.

25

G17049

SHIM - front bearing (.028"), countershaft

1шт.

25

G17050

SHIM - front bearing (.031"), countershaft

1шт.

26

A38155

GEAR - 1st (47 teeth), countershaft

1шт.

27

G11413

SPACER ASSY. - 1st and 2nd gear, 1-7/8 x 2-1/4 x 1-5/8", countershaft, Includes: Ref. 28

1шт.

28

138-16

LOCK PIN,5/64" x 1/4", Slotted

PIN - spacer, 5/16 x 1/4" roll, countershaft

1шт.

29

G17163

GEAR - 2nd (42 teeth), countershaft

1шт.

30

G17164

GEAR WHEEL

GEAR - 3rd (30 teeth), countershaft

1шт.

31

G14412

SPACER ASSY. - 3rd and 4th gear, 1-7/8 x 2-1/4 x 1-7/16", countershaft, Includes: Ref. 32

1шт.

32

138-16

LOCK PIN,5/64" x 1/4", Slotted

PIN - spacer, 5/16 x 1/4" roll, countershaft

1шт.

33

G17165

GEAR - 4th (19 teeth), countershaft

1шт.

34

G17151

SPACER - bevel, gear adjustment (.125"), countershaft

1шт.

34

G17152

SPACER

- bevel, gear adjustment (.131"), countershaft

1шт.

34

G17153

SPACER

- bevel, gear adjustment (.137"), countershaft

1шт.

35

G17154

SPACER

- gear adjustment (.150"), countershaft

1шт.

35

G17155

SPACER

- gear adjustment (.168"), countershaft

1шт.

35

G17156

SPACER

- gear adjustment (.186"), countershaft

1шт.

35

G17157

SPACER

- gear adjustment (.204"), countershaft

1шт.

36

G15220

BEARING CUP

CUP - bearing, rear, countershaft

1шт.

37

G15221

ROLLER BEARING

CONE - bearing, rear, countershaft

1шт.

38

A38954

NUT

- shaft adjustment, countershaft

1шт.
