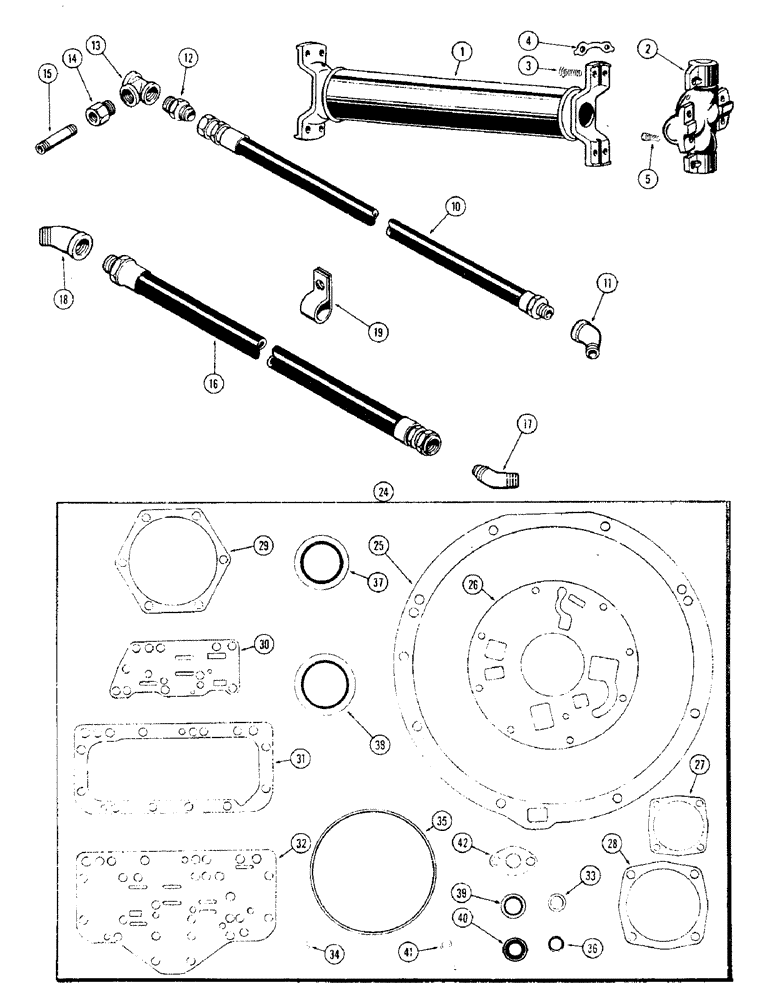

Запчасти Case W5 (078) - DRIVE SHAFT, CONVERTER COOLER HOSES, SHUTTLE TRANSMISSION GASKET KIT (06) - POWER TRAIN

A13653

SHAFT ASSY. - drive, universal joint, Includes: Ref. 1 - 5

1шт.

1

A14720

TUBE - torque

1шт.

2

A14725

U-JOINT SPIDER

JOINT ASSY. - (Complete)

2шт.

3

A14723

SCREW,Hex, 5/16" - 24 x 3/4", 8 Gr

BOLT -, Serial Range: joint-tube

8шт.

4

A14724

PLATE - lock, tube bolts

4шт.

5

A14722

SCREW,5/16" x 1-1/16", Gr 8

BOLT - joint to transmission yokes

8шт.

10

A13588

HOSE - pressure, 38" long, converter cooler hoses

1шт.

11

221-1404

ELBOW,45 Degree, 1/2"-14, NPT

- pressure hose (At radiator), 1/2" P.T. x 45 degrees, converter cooler hoses

1шт.

12

A13842

X

CONNECTOR - pressure hose, 1/2 x 3/4" P.T., converter cooler hoses

1шт.

13

221-1424

TEE,Pipe, 1/2" NPT

- pressure hose, 1/2" P.T., converter cooler hoses

1шт.

14

221-1056

BUSHING

- reducer, 1/2" P.T. to 3/8" P.T., converter cooler hoses

1шт.

15

221-1164

HYD CONNECTOR

NIPPLE - (To converter), 3/8" P.T., converter cooler hoses

1шт.

16

A13589

HOSE - return, 45" long, converter cooler hoses

1шт.

18

221-1403

ELBOW,45 Degree, 3/8"-18, NPT

- return hose, 1/2" P.T., converter cooler hoses

1шт.

19

A27256

CLAMP

- hose, converter cooler hoses

2шт.

24

A16705

GASKET KIT

- shuttle transmission, Includes: Ref. 25 - 42

1шт.

25

A14886

GASKET

- converter hsg. to trans. case, shuttle transmission gasket kit

1шт.

26

A14817

GASKET

- stator support to converter hsg., shuttle transmission gasket kit

1шт.

27

A14844

GASKET

- idler shaft retainer, shuttle transmission gasket kit

1шт.

28

A14855

GASKET

- reverse shaft retainer, shuttle transmission gasket kit

1шт.

29

A14848

GASKET

- output shaft retainer, shuttel transmission gasket kit

1шт.

30

A14871

GASKET

- valve cover to plate, shuttle transmission gasket kit

1шт.

31

L32119

GASKET

- control valve to trans. hsg., shuttle transmission gasket kit

1шт.

32

L30974

GASKET

- valve plate to body, shuttle transmission gasket kit

1шт.

33

A14810

WASHER

GASKET - relief valve plug, 37/64 x 13/16 x 20 Ga. copper, shuttle transmission gasket kit

1шт.

34

G10964

WASHER

GASKET - regulator and supply valve, 25/32 x 1 x 1/32" copper, shuttle transmission gasket kit

2шт.

35

A14816

O-RING

"O" RING - pump to body, 5-1/2 x 5-3/4 x 1/8", shuttle transmission gasket kit

1шт.

36

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - pump oil passage, 1/2 x 11/16 x 3/32", shuttle transmission gasket kit

1шт.

37

A14849

X

SEAL - oil, output shaft, 1-3/4 x 2-5/8 x 7/16", shuttle transmission gasket kit

1шт.

38

A14813

SEAL

SEAL - oil, pump body, 2-1/8 x 2-7/8 x 3/8", shuttle transmission gasket kit

1шт.

39

A14877

SEAL

- oil, clutch control valve, 11/16 x 1-1/16 x 3/16", shuttle transmission gasket kit

1шт.

40

A14863

OIL SEAL

SEAL - oil, direction selector valve, 9/16 x 1 x 1/4", shuttle transmission gasket kit

1шт.

41

A26413

GASKET

SEAL - output retainer bolt, shuttle transmission gasket kit

6шт.

42

A14839

GASKET

- oil intake screen, shuttle transmission gasket kit

1шт.
