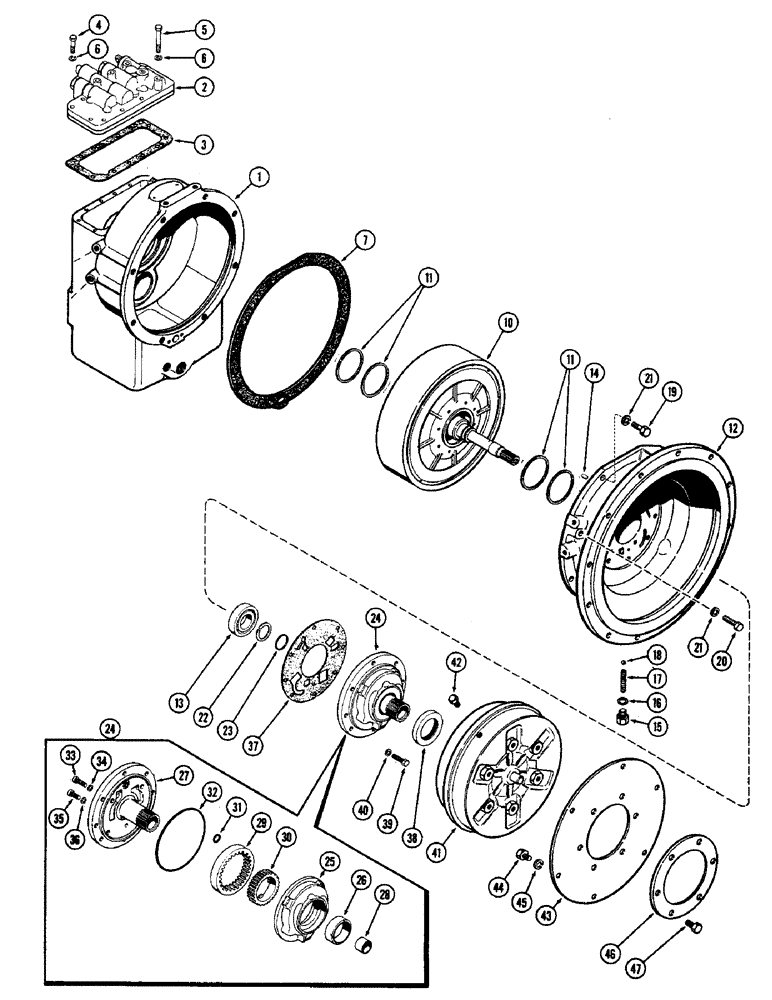

Запчасти Case W5 (068) - CONVERTER - HOUSING AND PUMP (06) - POWER TRAIN

1

L30318

X

CASE ASSY. - transmission (See figure 70)

1шт.

1

A14836

X

CASE ASSY. - transmission (See figure 72)

1шт.

2

L30352

BEARING

VALVE ASSY. - control (See figure 74)

1шт.

2

A15104

VALVE

ASSY. - control (See figure 74) (Can use L30352)

1шт.

3

A14862

X

GASKET - valve to transmission case

1шт.

4

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex.

8шт.

5

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

6

92-5

LOCK WASHER,5/16"

12шт.

7

A14886

GASKET

- converter housing to transmission housing

1шт.

10

A14818

CLUTCH ASSY. - forward & reverse (See figure 76)

1шт.

11

L30237

SEAL

RING - seal, clutch to conv. hsg. & brg. retainer

2шт.

12

A14808

HOUSING ASSY. - converter, Includes: Ref. 13 and 14

1шт.

13

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - ball, housing

1шт.

14

L30245

PLUG

- housing, 7/32 x 1/4"

2шт.

15

A14811

SEAT, VALVE

PLUG - relief valve plug

1шт.

16

A29468

GASKET

- plug

1шт.

17

A14809

SPRING

- converter relief valve

1шт.

18

211-11

BALL,3/8" Dia

- relief valve, 3/8" steel

1шт.

19

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

5шт.

20

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

3шт.

21

92-6

LOCK WASHER,3/8"

8шт.

22

A14835

RING, SNAP

RING - snap, bearing retaining

1шт.

23

A14834

RING,31.64mm ID x 34.94mm OD x 2.37mm Thk

- sealing, clutch, 1-3/8" closed diameter

1шт.

24

A14812

PUMP AND STATOR ASSY, Includes: Ref. 25 - 47

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - pump (Order A14812)

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING - body, 2-1/8 x 2-5/16 x 49/64"

1шт.

27

NSS

NOT SOLD SEPARAT

SUPPORT - stator (Order A14812)

1шт.

28

NSS

NOT SOLD SEPARAT

BUSHING - stator, 1-1/16 x 1-3/16 x 3/4"

1шт.

29

NSS

NOT SOLD SEPARAT

GEAR - driven (35 internal teeth) (Order A14812)

1шт.

30

NSS

NOT SOLD SEPARAT

GEAR - drive (29 external teeth) (Order A14812)

1шт.

31

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil port, 1/2 x 11/16 x 3/32"

1шт.

32

A14816

O-RING

"O" RING - body, 5-1/2 x 5-3/4 x 1/8"

1шт.

33

NSS

NOT SOLD SEPARAT

BOLT - pump, 1/4 x 1" N.C. hex. sckt. hd.

1шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

35

NSS

NOT SOLD SEPARAT

BOLT - pump, 5/16 x 3/4" N.C. hex. sckt. hd.

4шт.

36

92-5

LOCK WASHER,5/16"

4шт.

37

A14817

GASKET

- stator to converter housing

1шт.

38

A14813

SEAL

SEAL - oil, body, 2-1/8 x 2-7/8 x 3/8"

1шт.

39

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

8шт.

40

92-5

LOCK WASHER,5/16"

8шт.

41

A13825

CONVERTER

ASSY. - torque, Includes: Ref. 42

1шт.

42

221-651

PLUG,Hex Hd, 1/8"-27

- 1/8" P.T. hex.

1шт.

43

A15670

PLATE

-, Serial Range: converter-flywheel

1шт.

44

A14513

BOLT

- plate to flywheel, 5/16 x 5/8" N.C. spec.

6шт.

45

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

- 11/32 x 11/16 x 1/16"

6шт.

46

R17457

PLATE - reinforcement

1шт.

47

A14511

X

BOLT - plates to converter, 3/8 x 1/2" N.F. spec.

6шт.

FOOTNOTE

1шт.

REFER TO ILLUSTRATION FIGURE REF. 7 TO THE RIGHT OF GASKET ARE TWO SEAL RINGS PART NUMBER SHOULD READ L30237

1шт.
