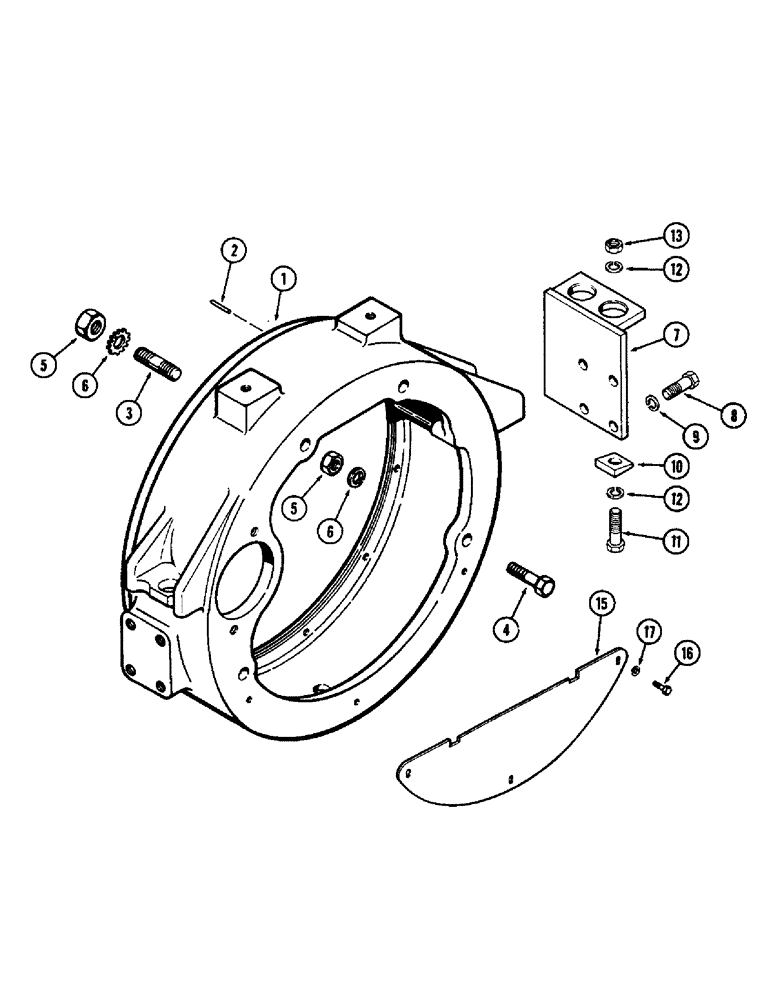

Запчасти Case W5 (066) - FLYWHEEL HOUSING (06) - POWER TRAIN

1

G2031

HOUSING - flywheel

1шт.

2

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, , Timing pointer 1/8" x 1 1/4", Slotted

1шт.

3

A29363

STUD

- housing to engine (5/8" N.F. x 2-1/4")

2шт.

4

A30135

BOLT

BOLT - engine to housing (5/8 x 2-1/4" N.F. hex.)

2шт.

5

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

4шт.

6

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

7

A13664

SUPPORT - housing R.H. & L.H.

2шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

9

92-8

LOCK WASHER,1/2"

8шт.

10

A10498

X

WASHER - bevel, support

4шт.

11

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.F. hex.

4шт.

12

92-8

LOCK WASHER,1/2"

8шт.

13

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

15

G11716

COVER

- dust, flywheel

1шт.

16

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.
