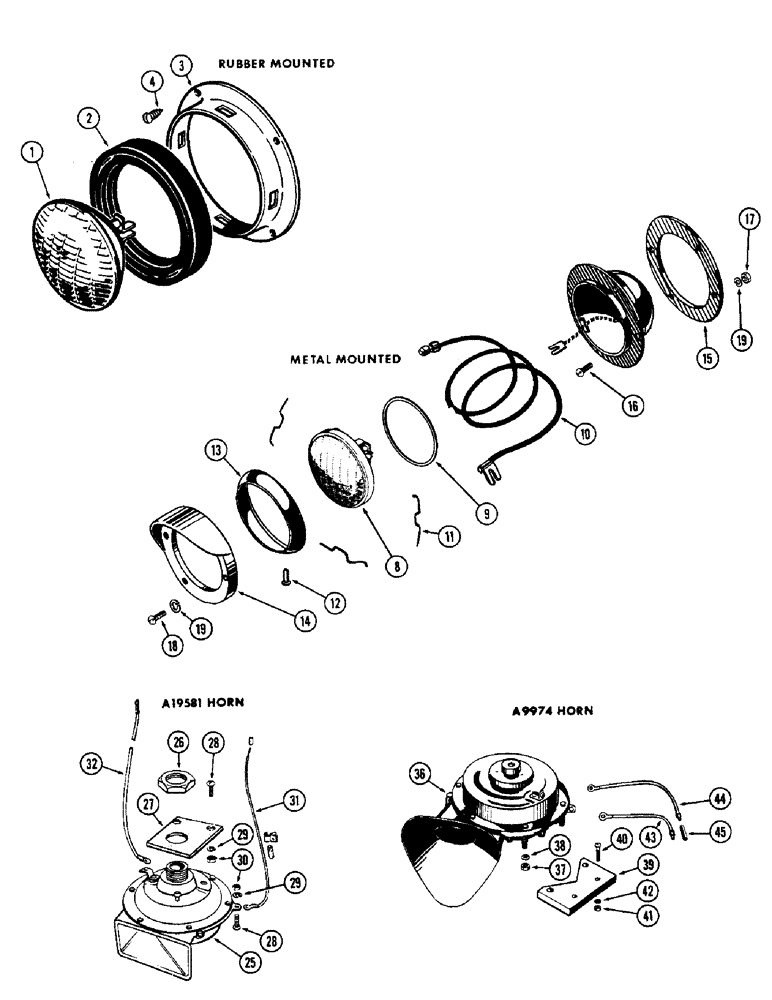

Запчасти Case W5 (062) - FRONT AND REAR LAMPS, RUBBER MOUNTED, METAL MOUNTED, A19581 HORN, A9974 HORN (04) - ELECTRICAL SYSTEMS

NSS

NOT SOLD SEPARAT

LAMP ASSY. - front & rear, Includes: Ref. 1 - 3

4шт.

1

A24572

LAMP

KIT - sealed unit (Gasket not used)

1шт.

2

D31441

RETAINER

RING - mounting, rubber

1шт.

3

B50296

RING

- mounting, metal

1шт.

4

75-416

SCREW,Rd, 1/4" - 20 x 1"

- mach., 1/4 x 1" N.C. rd. hd.

16шт.

NSS

NOT SOLD SEPARAT

LAMP ASSY. - front & rear (Order from above), Includes: Ref. 8 - 13

4шт.

8

A24572

LAMP

KIT - sealed unit (Includes gasket), metal mounted, Includes: Ref. 9

1шт.

9

A11276

GASKET

- lamp unit, metal mounted

1шт.

10

A56506

WIRE - lamp connecting (29"), metal mounted

1шт.

11

73767

GROUND CABLE

SPRING - retaining, lamp unit, metal mounted

3шт.

12

73768

SCREW - door retaining, metal mounted

1шт.

13

73772

DOOR - lamp, metal mounted

1шт.

14

R16791

RING - mounting, front lamp, metal mounted

4шт.

15

NLS

NO LONGER SERVICED

GASKET - mounting ring, front lamp, metal mounted

4шт.

16

76-424

SCREW - 1/4 x 1-1/4" N.F. rd. hd. (Rear), metal mounted

8шт.

17

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex. (Front), metal mounted

8шт.

18

75-416

SCREW,Rd, 1/4" - 20 x 1"

- 1/4 x 1" N.C. rd. hd., metal mounted

8шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Metal mounted 1/4"

16шт.

25

A19581

HORN

ASSY. - (Replaces A9974), A19581 horn

1шт.

26

A19827

X

NUT - retaining, horn to plate, A19581 horn

1шт.

27

A19913

PLATE - horn mounting, A19581 horn

1шт.

28

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- mach., 10-24 x 1/2" rd. hd., A19581 horn

3шт.

29

92-3

LOCK WASHER,#10

WASHER, LOCK, , A19581 horn #10

3шт.

30

129-7

NUT,Hex, #10 - 24

- hex., A19581 horn #10-24

3шт.

31

A18924

WIRE - horn to inst. panel, A19581 horn

1шт.

32

A13792

WIRE - horn to steering column, A19581 horn

1шт.

36

A9974

HORN ASSY. - (Order A19581), A9974 horn

1шт.

37

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex., A9974 horn

2шт.

38

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , A9974 Horn 1/4"

2шт.

39

A12490

BLOCK - insulating, horn mounting, A9974 horn

1шт.

40

174-102

SCREW,Sl Rnd Hd, #10 - 32 x 1"

- #10-32 x 1" rd. hd., A9974 horn

2шт.

41

129-27

NUT,Hex, #10 - 32

- hex., A9974 horn #10-32

2шт.

42

92-3

LOCK WASHER,#10

WASHER, LOCK, , A9974 horn #10

2шт.

43

A13791

WIRE - horn to inst. panel, A9974 horn

1шт.

44

A13792

WIRE - horn to steering column, A9974 horn

1шт.

45

A27213

CONNECTOR - wire, A9974 horn

2шт.
