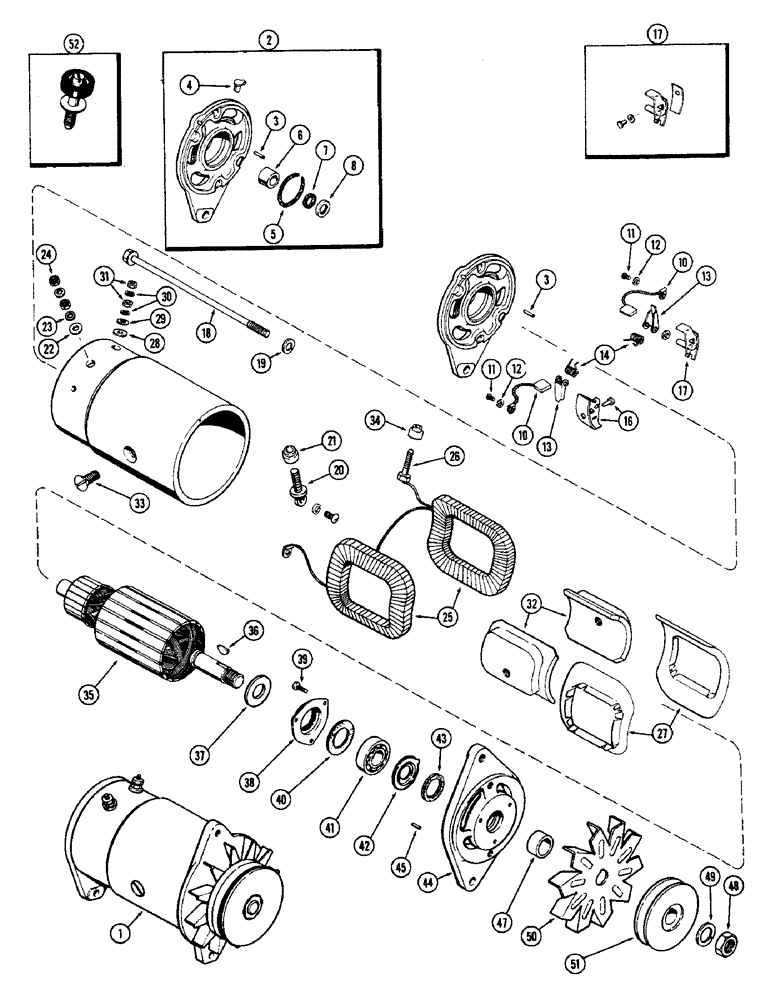

Запчасти Case W5 (061A) - R4439 GENERATOR (04) - ELECTRICAL SYSTEMS

R4439

KIT

GENERATOR KIT - (Delco-Remy #1947579), Includes: Ref. 1 - 50

1шт.

1

A40135

GENERATOR ASSY. - (Order R4439), Includes: Ref. 2 - 49

1шт.

2

A40132

HOUSING ASSY. - commutator end, Includes: Ref. 3 - 8

1шт.

3

R15095

PIN - locating

1шт.

4

219-202

OILER

1шт.

5

A41417

WICK

- oil

1шт.

6

A25459

BUSHING

- armature shaft

1шт.

7

R16157

WASHER

- felt

1шт.

8

R16156

CUP

- retainer, felt washer

1шт.

10

R16158

BRUSH

- main

2шт.

11

172-223

SCREW - lead, #6-32 x 1/4" rd. hd.

2шт.

12

195-15

WASHER,#12

- lock, #6

2шт.

13

R15090

ARM

- brush pressure

2шт.

14

R16161

VALVE SPRING

SPRING - brush arm

2шт.

15

R16162

WASHER - spacer, brush arm

2шт.

16

A40703

NOZZLE HOLDER

KIT - brush holder, grounded

1шт.

17

A40704

NOZZLE HOLDER

KIT - brush holder, insulated

1шт.

23

192-17

LOCK WASHER,#12

Washer, Lock, #12

1шт.

22

R15079

WASHER

- plain

1шт.

21

R16147

BUSHING

- insulating, term. stud

1шт.

20

A40701

STUD

- armature terminal

1шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

18

A40129

BOLT

BOLT - through

2шт.

24

129-18

NUT,#12-24

- terminal, hex. #12-24

2шт.

25

R16149

COIL ASSY.

- field, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

STUD - terminal (Order ref. 52)

1шт.

27

R16152

INSULATOR

INSULATION

2шт.

28

R16148

WASHER

- insulating, field term.

1шт.

29

R15079

WASHER

- plain

1шт.

30

192-17

LOCK WASHER,#12

Washer, Lock, #12

1шт.

31

129-18

NUT,#12-24

- term., hex. #12-24

2шт.

32

A40700

SHOE - pole

2шт.

33

74-610

SCREW,3/8" - 24 x 5/8"

- 3/8 x 5/8" N.F. flat hd.

2шт.

34

NSS

NOT SOLD SEPARAT

BUSHING - field term. (Order ref. 52)

1шт.

35

A40136

ARMATURE

1шт.

36

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Pulley #5, 1/8" x 5/8", HT

1шт.

37

R15100

SPACER - retainer

1шт.

38

R15101

PLATE

RETAINER - bearing

1шт.

39

A41959

SCREW,#10 - 32 x 3/8"

- bearing retainer

3шт.

40

R16170

GASKET

- retainer

1шт.

41

G10623

BALL BEARING

BEARING - ball, drive end

1шт.

42

R16169

LARGE PLATE

RETAINER - felt washer

1шт.

43

R16168

WASHER

- felt

1шт.

44

A40134

HOUSING - drive end

1шт.

45

R15041

PIN - locating

1шт.

47

R16166

BUSHING

SPACER - fan

1шт.

48

A25546

NUT

- pulley

1шт.

49

192-116

WASHER, LOCK

WASHER - lock, 11/16"

1шт.

50

A25449

FAN

- ventilating

1шт.

51

A25453

PULLEY - drive

1шт.

52

A40702

STUD

KIT - field terminal

1шт.
