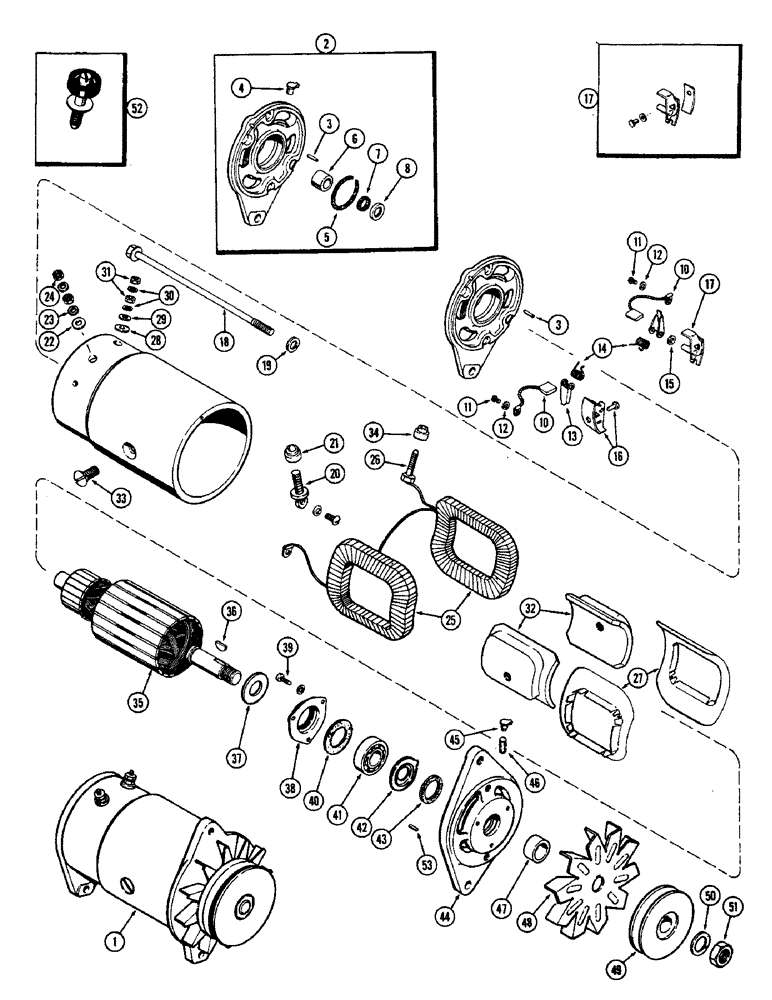

Запчасти Case W5 (060) - G44855 GENERATOR (04) - ELECTRICAL SYSTEMS

1

G44855

X

GENERATOR ASSY. - (Delco-Remy #1100371) (Order R4439 from figure 61A), Includes: Ref. 2 - 53

1шт.

103822A1R

REMAN-GENERATOR

Remanufactured GENERATOR - NA Only

1шт.

103822A1C

CORE-GENERATOR

Return number - For N.A. only

1шт.

2

A40679

HOUSING

HOUSING ASSY. - commutator end, Includes: Ref. 3 - 8

1шт.

3

R15095

SPARE PART PIN - locating

1шт.

4

219-202

OILER

OILER

1шт.

5

A41417

WICK

WICK - oil

1шт.

6

A25459

BUSHING

BUSHING - armature shaft

1шт.

7

R16157

WASHER

WASHER - felt

1шт.

8

R16156

CUP

CUP - retainer, felt washers

1шт.

10

R4286

BRUSH, COMMUTATOR

BRUSH BRUSH - main

2шт.

11

172-223

SCREW - lead, #6-32 x 1/4" rd. hd.

2шт.

12

195-15

WASHER,#12

WASHER - lock, #6

2шт.

13

R15090

ARM

ARM - brush pressure

2шт.

14

R16161

VALVE SPRING

SPRING - brush arm

2шт.

15

R16162

SPARE PART WASHER - spacer, brush arm

2шт.

16

A40703

NOZZLE HOLDER

KIT - brush holder, grounded

1шт.

17

A40704

NOZZLE HOLDER

KIT - brush holder, insulated

1шт.

18

A40129

BOLT

BOLT - thru

2шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

20

A40701

STUD

STUD - armature terminal

1шт.

21

R16147

BUSHING

BUSHING - insulating, term. stud

1шт.

22

R15079

WASHER

WASHER - plain

1шт.

23

192-17

LOCK WASHER,#12

Washer, Lock, #12

2шт.

24

129-18

NUT,#12-24

NUT - terminal, hex. #12-24

2шт.

25

R16149

COIL ASSY.

COIL ASSY. - field, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

STUD - terminal (Order ref. 52)

1шт.

27

R16152

INSULATOR

INSULATION

2шт.

28

R16148

WASHER

WASHER - insulating, field terminal

1шт.

29

R15079

WASHER

WASHER - plain

1шт.

30

192-17

LOCK WASHER,#12

Washer, Lock, #12

2шт.

31

129-18

NUT,#12-24

NUT - term. stud, #12-24

2шт.

32

A40700

SPARE PART SHOE - pole

2шт.

33

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - 3/8 x 5/8" N.F. flat hd.

2шт.

34

NSS

NOT SOLD SEPARAT

BUSHING - field term. (Order ref. 52)

1шт.

35

R16144

SPARE PART ARMATURE

1шт.

36

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Pulley #5, 1/8" x 5/8", HT

1шт.

37

R15100

SPARE PART SPACER - retainer

1шт.

38

R15101

PLATE

RETAINER - bearing

1шт.

39

A41959

SCREW,#10 - 32 x 3/8"

SCREW - bearing retainer

3шт.

40

R16170

GASKET

GASKET - retainer

1шт.

41

R15094

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, drive end

1шт.

42

R16169

LARGE PLATE

PLATE, LARGE RETAINER - felt washer

1шт.

43

R16168

WASHER

WASHER - felt

1шт.

44

A25442

HOUSING

HOUSING ASSY. - drive end, Includes: Ref. 45 and 46

1шт.

45

219-202

OILER

OILER

1шт.

46

R16165

SPARE PART WICK - oil

1шт.

47

R16166

BUSHING

SPACER - fan & pulley

1шт.

48

A25449

FAN

FAN - ventilating

1шт.

49

A25453

SPARE PART PULLEY - drive

1шт.

50

192-116

WASHER, LOCK

WASHER - lock, 11/16"

1шт.

51

A25546

NUT

NUT -, Serial Range: pulley-shaft

1шт.

52

A40702

STUD

KIT - field terminal

1шт.

53

R15041

SPARE PART PIN - locating, end housing

1шт.
