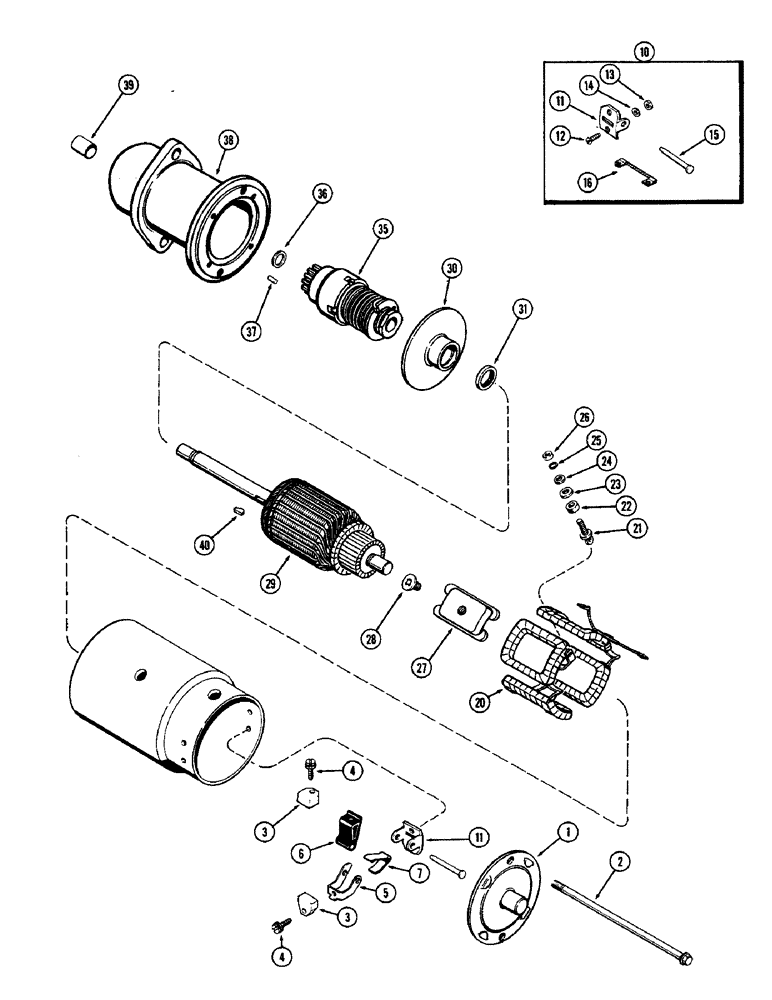

Запчасти Case W5 (056) - G44854 STARTING MOTOR (04) - ELECTRICAL SYSTEMS

G44854

MOTOR

ASSY. - starting (Delco-Remy #1107755), Includes: Ref. 1 - 40

1шт.

1

A25302

FUNNEL

HEAD ASSY. - comm. end

1шт.

2

A25375

X

BOLT - thru

2шт.

3

A20893

BRUSH

- armature

4шт.

4

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush (Includes lockwasher)

4шт.

5

A40217

HOLDER

- brush ground

2шт.

6

R15027

HOLDER

- brush insulating

2шт.

7

A25359

SPRING

- brush pressure

2шт.

10

A25379

KIT

SUPPORT KIT - brush holder, Includes: Ref. 11 - 16

2шт.

11

NSS

NOT SOLD SEPARAT

SUPPORT - (Order A25379)

2шт.

12

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10/24-24 x 1/2" rd. hd.

2шт.

13

R15032

X

NUT - support screw

2шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

15

A41983

PIN

- brush holder

2шт.

16

A42494

ELECTRICAL WIRE

LEAD - brush ground

2шт.

20

A25316

COIL ASSY. - field

1шт.

21

A25328

STUD - terminal

1шт.

22

NSS

NOT SOLD SEPARAT

BUSHINGS - insulating, term. stud

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - insulating, term. stud

1шт.

24

195-521

WASHER,5/16", SAE

- plain, 11/32 x 11/16 x 5/64"

1шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

26

9635082

NUT,5/16" - 18, Gr 5

1шт.

27

A40747

SHOE - pole

4шт.

28

74-610

SCREW,3/8" - 24 x 5/8"

- 3/8 x 5/8" N.F. flat hd.

4шт.

29

A25307

ARMATURE

1шт.

30

A25549

PLATE

ASSY. - center bearing, Includes: Ref. 31

1шт.

31

A25409

SEAL

SEAL - oil

1шт.

35

A42078

DRIVE ASSY. - starter

1шт.

36

A25383

WASHER - thrust, starter drive

1шт.

37

R15041

PIN - locating, drive housing, Includes: Ref. 39

1шт.

39

A25386

BUSHING - armature shaft

1шт.

40

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.
