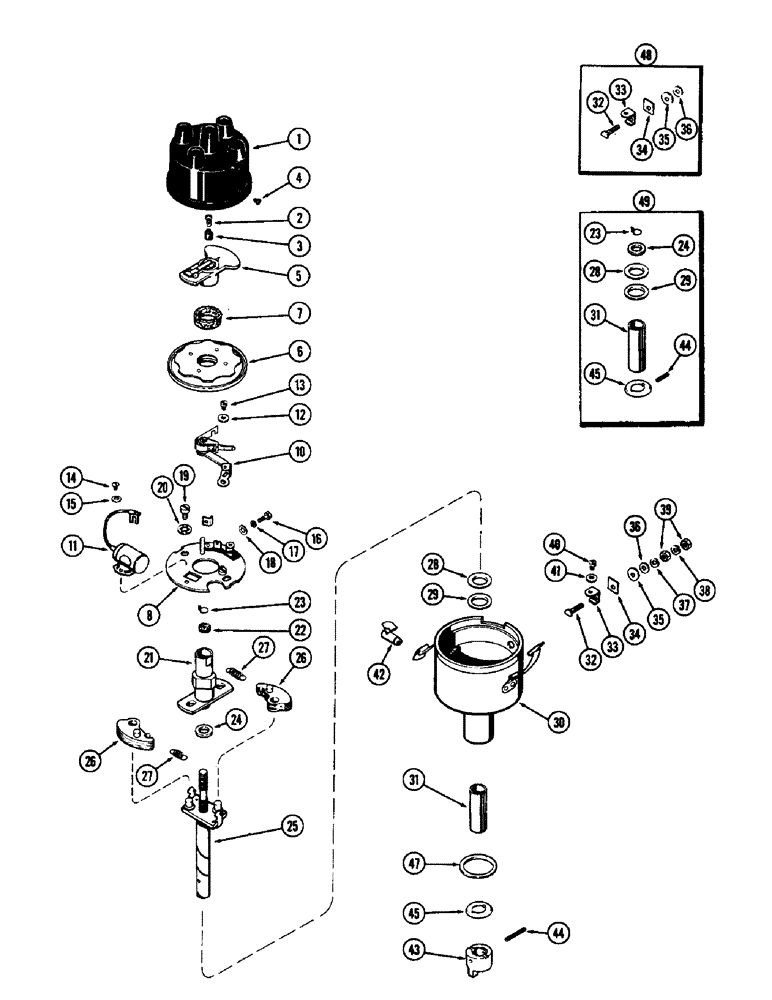

Запчасти Case W5 (052) - G44850 DISTRIBUTOR (04) - ELECTRICAL SYSTEMS

G44850

DISTRIBUTOR - (Auto-Lite #EAO-12998) (Order G44857 from figure 50), Includes: Ref. 1 - 45

1шт.

1

A8368

CAP

ASSY, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - brush tension

1шт.

3

NSS

NOT SOLD SEPARAT

BRUSH - contact

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - rubber

1шт.

5

A8369

ROTOR

1шт.

6

A25194

PLATE

ASSY. - dust seal, Includes: Ref. 7

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - felt

1шт.

8

A25196

PLATE

ASSY. - breaker, Includes: Ref. 10 - 18 and kit

1шт.

A40929

KIT

- contact set & condenser

1шт.

10

NSS

NOT SOLD SEPARAT

POINT SET - (Order A40929)

1шт.

11

NSS

NOT SOLD SEPARAT

CONDENSER - (Order A40929)

1шт.

12

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

13

177-72

SCREW - point set, #8-32 x 3/16"

1шт.

14

177-56

SCREW - condenser, #6-32 x 3/16" fill. hd.

1шт.

15

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

16

171-216

SCREW,Sl Flat Hd, #6 - 32 x 5/16"

- spring clamp, #6-32 x 5/16" flat hd.

1шт.

17

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

18

195-6

WASHER,#6

- plain, 5/32 x 5/16 x 3/64"

1шт.

19

177-94

SCREW,Sl Fil Hd, #10 - 32 x 5/16"

- plate, #10-32 x 5/16" fill. hd.

2шт.

20

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

21

A25193

CAM

ASSY, Includes: Ref. 22

1шт.

22

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

23

A25180

RING, SNAP

RING - snap (See ref. 49)

1шт.

24

NSS

NOT SOLD SEPARAT

SPACER - cam (Order ref. 49)

1шт.

25

A25177

SHAFT

- drive

1шт.

26

A25198

WEIGHT

- governor

2шт.

27

A25208

SET

SPRING - governor weight (Set of 2)

1шт.

28

A24572

LAMP

WASHER - thrust, inner (See ref. 49)

1шт.

29

A24753

WASHER

- thrust, outer (See ref. 49)

1шт.

30

NSS

NOT SOLD SEPARAT

BASE ASSY. - (Order G44857)

1шт.

31

A24766

BUSHING

BEARING - drive shaft (See ref. 49)

1шт.

32

NSS

NOT SOLD SEPARAT

STUD - terminal (Order ref. 48)

1шт.

33

NSS

NOT SOLD SEPARAT

CONNECTOR - terminal (Order ref. 48)

1шт.

34

NSS

NOT SOLD SEPARAT

INSULATION - inner (Order ref. 48)

1шт.

35

NSS

NOT SOLD SEPARAT

BUSHING - insulator (Order ref. 48)

1шт.

36

NSS

NOT SOLD SEPARAT

INSULATION - outer (Order ref. 48)

1шт.

37

195-5

WASHER

- plain, 1/8 x 5/16 x 1/32"

1шт.

38

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

39

129-27

NUT,Hex, #10 - 32

- hex. #10-32

2шт.

40

174-56

SCREW - connector, #6-32 x 3/16" rd. hd.

1шт.

41

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

42

NSS

NOT SOLD SEPARAT

OILER - drive shaft

1шт.

43

NSS

NOT SOLD SEPARAT

DRIVER - gear shaft

1шт.

44

138-56

LOCK PIN,1/8" x 11/16", Slotted

PIN, 1/8" x 11/16", Slotted

1шт.

45

NSS

NOT SOLD SEPARAT

WASHER - thrust, driver (Order ref. 49)

1шт.

48

A40321

KIT

- terminal

1шт.

49

A40322

KIT

- shaft bearing

1шт.
