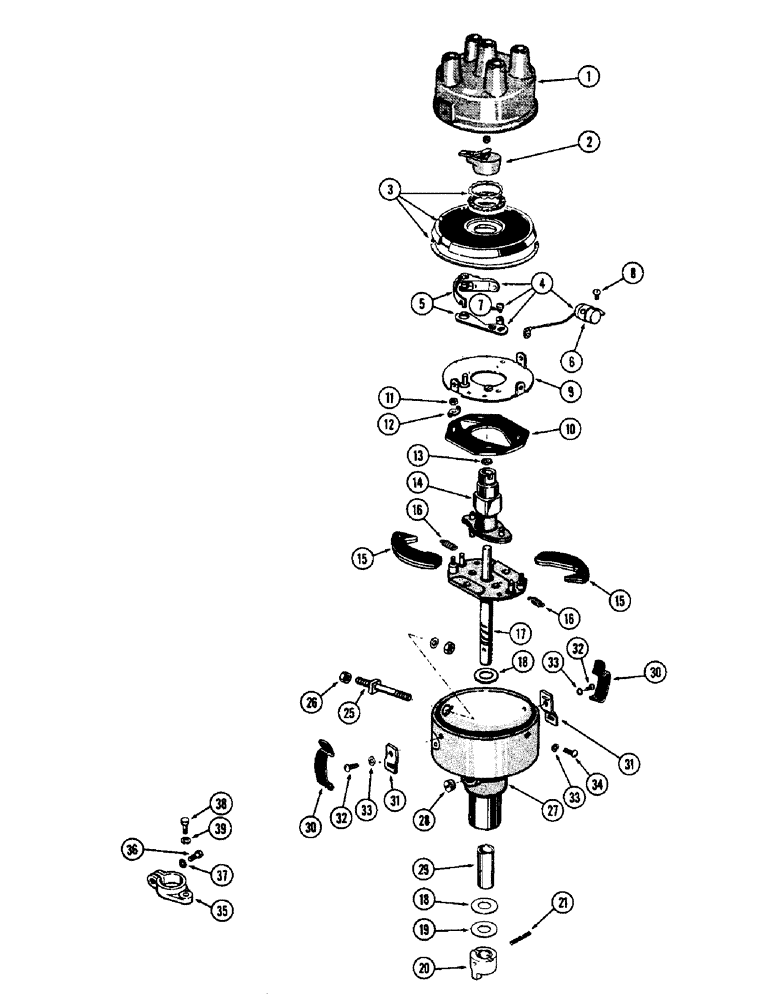

Запчасти Case W5 (050) - G44857 DISTRIBUTOR (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
G44857
DISTRIBUTOR (Delco-Remy #1111910), Includes: Ref. 1 - 11
1шт.
1
G44038
COVER ASSY
COVER - distributor
1шт.
2
G44040
ROTOR
1шт.
3
G44039
COVER
ASSY. - dust
1шт.
4
F10714
POINT
CONTACT KIT, Includes: Ref. 5 and 6
1шт.
5
NSS
NOT SOLD SEPARAT
POINT SET (Order F10714)
1шт.
6
F10715
CONDENSER
- (Order F10714)
1шт.
REF. 6 D IS NOT PART OF THE ASSY F10714.
1шт.
7
NSS
NOT SOLD SEPARAT
SCREW - point adjusting
1шт.
8
NSS
NOT SOLD SEPARAT
SCREW -, Serial Range: condenser-plate
1шт.
9
A25526
PLATE - breaker
1шт.
10
A25530
PLATE - weight hold down
1шт.
11
NSS
NOT SOLD SEPARAT
NUT - hold down plate
2шт.
12
NSS
NOT SOLD SEPARAT
WASHER - lock. hold down nut, Includes: Ref. 13 - 34
2шт.
13
NSS
NOT SOLD SEPARAT
WICK - felt, cam oil
1шт.
14
A25540
CAM - advance & breaker
1шт.
15
A25529
WEIGHT - governor
2шт.
16
A25542
SPRING - governor weight
2шт.
17
A25541
SHAFT ASSY. - (Includes weight plate)
1шт.
18
D30006
WASHER
- spacer, shaft & plate
2шт.
19
A25522
SHIM - gear (.005")
1шт.
19
A25523
SHIM - gear (.010")
1шт.
20
G44043
COUPLING - drive
1шт.
21
A25524
PIN -, Serial Range: gear-shaft
1шт.
25
A25537
KIT
STUD - terminal
1шт.
26
NSS
NOT SOLD SEPARAT
NUT -, Serial Range: stud-housing
1шт.
27
NSS
NOT SOLD SEPARAT
HOUSING
1шт.
28
221-1041
PLUG
- 1/8" P.T. headless slotted
1шт.
29
NSS
NOT SOLD SEPARAT
BUSHING - drive shaft
1шт.
30
A25531
SPRING - clamp, Serial Range: cap-base
2шт.
31
A25532
SUPPORT - cap spring
2шт.
32
NSS
NOT SOLD SEPARAT
SCREW - clamp spring
2шт.
33
NSS
NOT SOLD SEPARAT
WASHER - lock, spring & plate screw
3шт.
34
NSS
NOT SOLD SEPARAT
SCREW - breaker plate
1шт.
35
A7622
CLAMP - distributor to tach. drive
1шт.
36
13-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
- 5/16 x 1-1/4" N.C. hex.
1шт.
37
92-5
LOCK WASHER,5/16"
1шт.
38
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
39
92-5
LOCK WASHER,5/16"
1шт.
Выбрано товаров: 39
