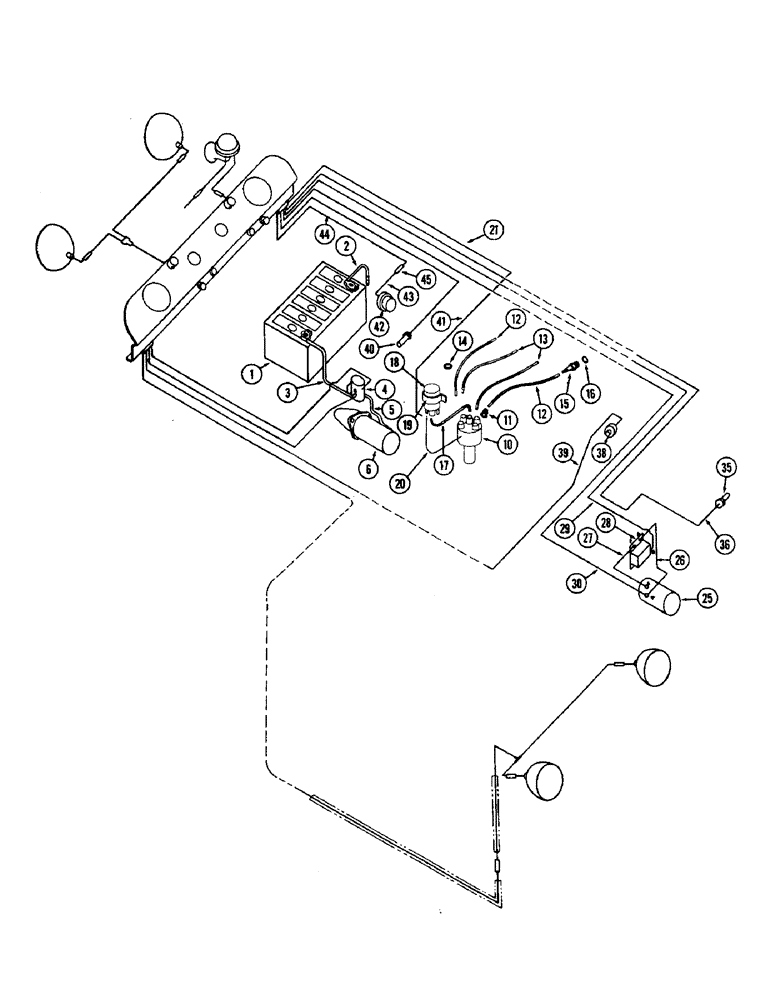

Запчасти Case W5 (046) - ELECTRICAL EQUIPMENT AND WIRING (04) - ELECTRICAL SYSTEMS

1

F22631

DRY BATTERY

- 12 volt

1шт.

2

A13798

CABLE - battery ground

1шт.

3

A13797

CABLE - battery to solenoid (46")

1шт.

4

A57069

SOLENOID

- starter switch

1шт.

G11286

BRACKET - solenoid mounting (Not shown)

1шт.

5

G44014

CABLE - solenoid to starting motor

1шт.

6

G44828

STARTING MOTOR - (Auto-Lite #MDL-6019) (Can use G44854)

1шт.

6

G44854

MOTOR

STARTING MOTOR - (Delco Remy #1107755)

1шт.

G46828

GASKET

- starting motor (Not shown)

1шт.

10

G44850

DISTRIBUTOR - (Auto-Lite #EDA-12998) (Can use G44857) (Repairs figure 52)

1шт.

10

G44857

DISTRIBUTOR - (Delco-Remy #1111910)

1шт.

11

A29338

COVER

NIPPLE - wire to dist. cap (See G46803)

5шт.

11

G46803

BOOT

NIPPLE -, Serial Range: wire-coil

1шт.

12

A29994

CABLE

WIRE - #1 & #4 spark plug (10-1/2")

2шт.

13

A30018

CABLE

WIRE - #2 & #3 spark plug (8-1/2")

2шт.

14

A30109

WASHER

- rubber, wire harness

1шт.

15

G44840

SPARK PLUG

PLUG - spark, Includes: Ref. 16

4шт.

16

G46839

GASKET

- plug seat

1шт.

17

CASA30038

CABLE

WIRE - dist., Serial Range: cap-coil

1шт.

18

A33438

COIL

- (Auto-Lite #200578) (Can use A41820)

1шт.

18

A41820

COIL

- (Auto-Lite #200691)

1шт.

19

G46106

BRACKET

- coil clamp

1шт.

187-540

SCREW - clamp, #10 x 1-1/2" self-tapping

1шт.

20

G13085

ELECTRICAL WIRE

WIRE - coil to distributor (12")

1шт.

21

A13781

WIRE - coil to R.H. terminal plug

1шт.

25

G44844

GENERATOR - (Auto-Lite #GJL-7003A) (Order A40706) (See figure 58)

1шт.

25

G44855

X

GENERATOR - (Delco-Remy #1100371) (Order R4439) (See figures 60 & 61A)

1шт.

G11898

BRACKET - generator mounting (Not shown)

1шт.

D20352

STRAP - adjusting, generator (Not shown)

1шт.

26

A13905

WIRE - generator "A", Serial Range: term.-regulator

1шт.

27

A13906

WIRE - generator "F", Serial Range: term.-regulator

1шт.

28

G44845

REGULATOR

- voltage (Auto-Lite #VRT-4203A) (See G44856)

1шт.

28

G44856

REGULATOR

- voltage (Delco-Remy #118901)

1шт.

29

A13780

WIRE - regulator to R.H. terminal block

1шт.

30

A13785

WIRE - generator to R.H. terminal block

1шт.

35

A13796

X

SENDER - engine temperature

1шт.

36

A13783

WIRE - eng. temp. sender to R.H. terminal block

1шт.

38

A13794

TRANSMITTER

SENDER - engine oil pressure

1шт.

39

A14657

WIRE - eng. oil press. sender to L.H. terminal block

1шт.

40

A13795

SENDER UNIT

SENDER - converter temperature

1шт.

41

A13784

WIRE - converter temp. sender to R.H. terminal block

1шт.

42

A13669

SENDER UNIT

SENDER - fuel gauge (In tank)

1шт.

43

A13793

WIRE - fuel, Serial Range: sender-connector

1шт.

44

A13782

WIRE - connector to R.H. terminal block

1шт.

45

A27213

CONNECTOR - wire, fuel gauge

1шт.
