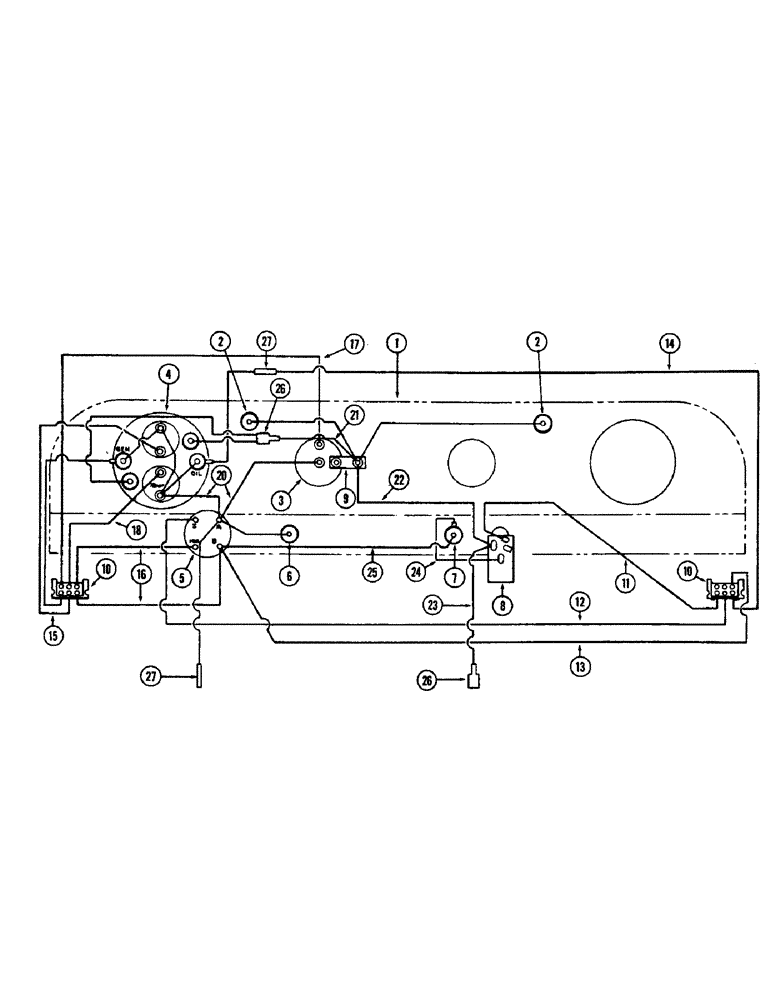

Запчасти Case W5 (044) - INSTRUMENTS AND WIRING (04) - ELECTRICAL SYSTEMS

1

A13738

PANEL - instrument (Order from figure 42)

1шт.

2

A7642

LAMP

- instrument (Order from figure 42)

2шт.

3

A13756

GAUGE

- conv. oil temp. (Order from figure 42)

1шт.

4

A13739

GAUGE ASSY.

CLUSTER ASSY. - instrument (Order from figure 42)

1шт.

5

A11373

SWITCH

- ignition & starter (Order from figure 42)

1шт.

6

G13344

SOCKET ASSY. - lighter (Order from figure 42)

1шт.

7

A8006

NOZZLE HOLDER

FUSE HOLDER - (Order from figure 42)

1шт.

8

A20201

SWITCH

- light (Order from figure 42)

1шт.

9

A9348

BLOCK - wire terminal

1шт.

10

A13742

BLOCK - connector, wire harness

2шт.

11

A13750

WIRE - L.H. conn. to light switch (12")

1шт.

12

A13749

WIRE - L.H. conn. to st. switch "S" (24")

1шт.

13

A13748

WIRE - L.H. conn. to st. switch "B" (23-1/2")

1шт.

14

A13747

WIRE - L.H. conn. to eng. oil pressure lamp (14")

1шт.

15

A13745

WIRE - R.H. conn. to fuel gauge (7-1/2")

1шт.

16

A13743

WIRE - R.H. conn. to st. switch (7-1/2")

2шт.

17

A13746

WIRE - R.H. conn. to conv. temp. gauge (12-1/4")

1шт.

18

A13744

WIRE - R.H. conn. to eng. temp. gauge (5-1/2")

1шт.

20

A13755

WIRE - eng. & conv. temp. gauge to st. switch

2шт.

21

A13753

WIRE - cluster conn. to term. block

1шт.

22

A13754

ELECTRICAL WIRE

WIRE - term. block to light switch (6")

1шт.

24

A13751

WIRE - light, Serial Range: switch-fuse

1шт.

25

A13752

WIRE - fuse to st. switch "B"

1шт.

26

A8210

CONNECTOR, ELEC

CONNECTOR - single to double wire

2шт.

27

A27213

CONNECTOR - single wire

2шт.
