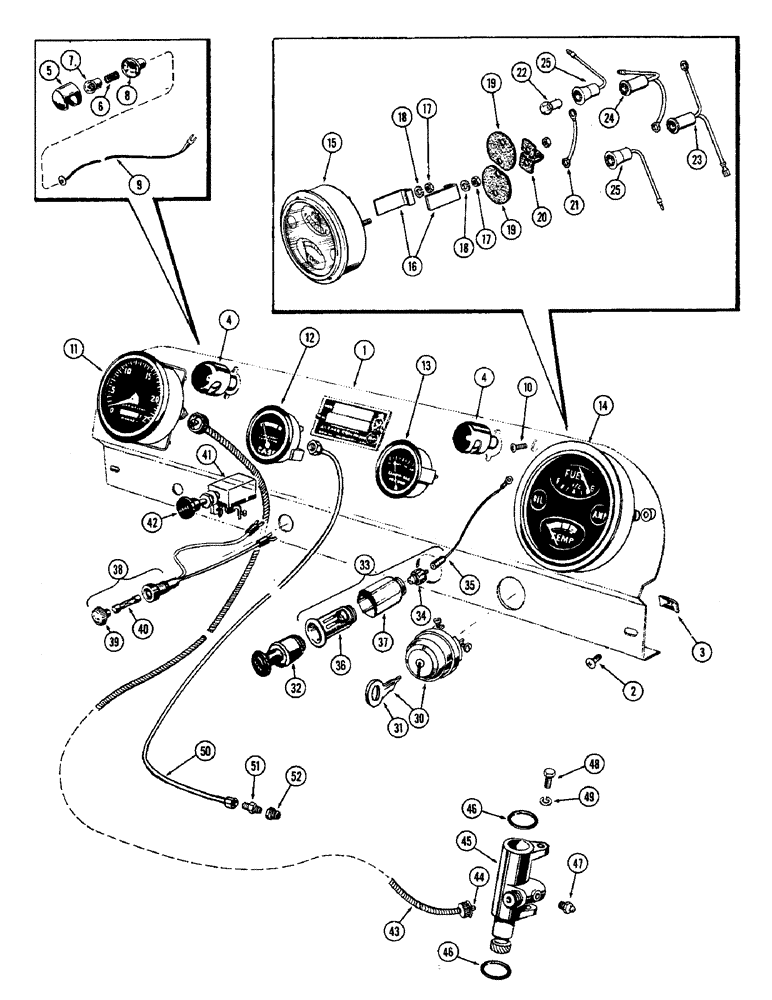

Запчасти Case W5 (042) - INSTRUMENT PANEL AND INSTRUMENTS (04) - ELECTRICAL SYSTEMS

1

A13738

PANEL - instrument mounting

1шт.

2

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- 1/4 x 5/8" N.C. truss hd.

4шт.

3

131-118

NUT - speed, 1/4" N.C. (Tinnerman "J" type)

4шт.

4

A7642

LAMP

ASSY. - instrument, Includes: Ref. 5 - 9

2шт.

5

B50319

COVER - lamp

1шт.

6

B50262

SPRING - bulb

1шт.

7

71421

BULB,R5W, 12V, 5W

- 3 C.P. 12 volt (Mfrs. #67)

1шт.

8

B50320

SOCKET - bulb

1шт.

9

A40161

WIRE -, Serial Range: lamp-terminal

1шт.

10

187-1007

SCREW

- lamp to panel, #6-32 x 5/16" tapping

4шт.

11

A11190

TACHOMETER

ASSY. - (Includes hour meter)

1шт.

12

A56447

ELECTRICAL GAUGE

GAUGE - oil pressure, converter

1шт.

13

A13756

GAUGE

- oil temperature, converter

1шт.

14

A13739

GAUGE ASSY.

CLUSTER ASSY. - instrument, Includes: Ref. 15 - 25

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - (Order A13739)

1шт.

16

NSS

NOT SOLD SEPARAT

CLAMP - mounting

2шт.

17

129-7

NUT,Hex, #10 - 24

- #10-32 hex.

8шт.

18

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

19

A14551

INSULATOR - temp. & fuel gauge

2шт.

20

A14550

INSULATOR - gauge mounting

1шт.

21

A14549

WIRE - temp to fuel gauge

1шт.

22

A14553

BULB

- light (Mfrs. #57)

4шт.

23

A14548

SOCKET - generator warning light

1шт.

24

A14547

SOCKET - oil pressure warning light

1шт.

25

G45029

SOCKET - instrument lamp

2шт.

30

A11373

SWITCH

- ignition & starter, Includes Ref 31

1шт.

31

A20346

KEY

- ignition switch

1шт.

32

G13345

UNIT

- cigarette lighter

1шт.

33

G13344

SOCKET ASSY. - lighter unit, Includes: Ref. 34 - 36

1шт.

34

G44803

FUSE - lighter socket

1шт.

35

G44022

ELECTRICAL WIRE

WIRE - lighter, Serial Range: socket-switch

1шт.

36

G44820

BASE - socket

1шт.

37

G46107

PIN

CLAMP -, Serial Range: socket-panel

1шт.

38

A8006

NOZZLE HOLDER

HOLDER ASSY. - fuse, Includes: Ref. 39

1шт.

39

A10958

CAP

- fuse holder

1шт.

40

223-20

FUSE,20 Amp, Type SFE

- light

1шт.

41

A20201

SWITCH

ASSY. - light, Includes: Ref. 42

1шт.

42

A7817

KNOB

- light switch

1шт.

43

A14902

CABLE ASSY. - tachometer drive, Includes: Ref. 44

1шт.

44

A13200

CABLE

- tachometer drive

1шт.

45

G11830

DRIVE ASSY. - tachometer & distributor

1шт.

46

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - tach. drive (1-1/16 x 1-5/16 x 1/8")

2шт.

47

219-2

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str. (Vented)

1шт.

48

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

48

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

49

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

50

A11368

TUBE - converter pressure (79")

1шт.

51

222-20

CONNECTOR, ELEC,3/8"-24 x 1/8" NPTF

CONNECTOR - tube to converter, 1/8" tube x 1/8" P.T.

1шт.

52

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Bushing 1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.
