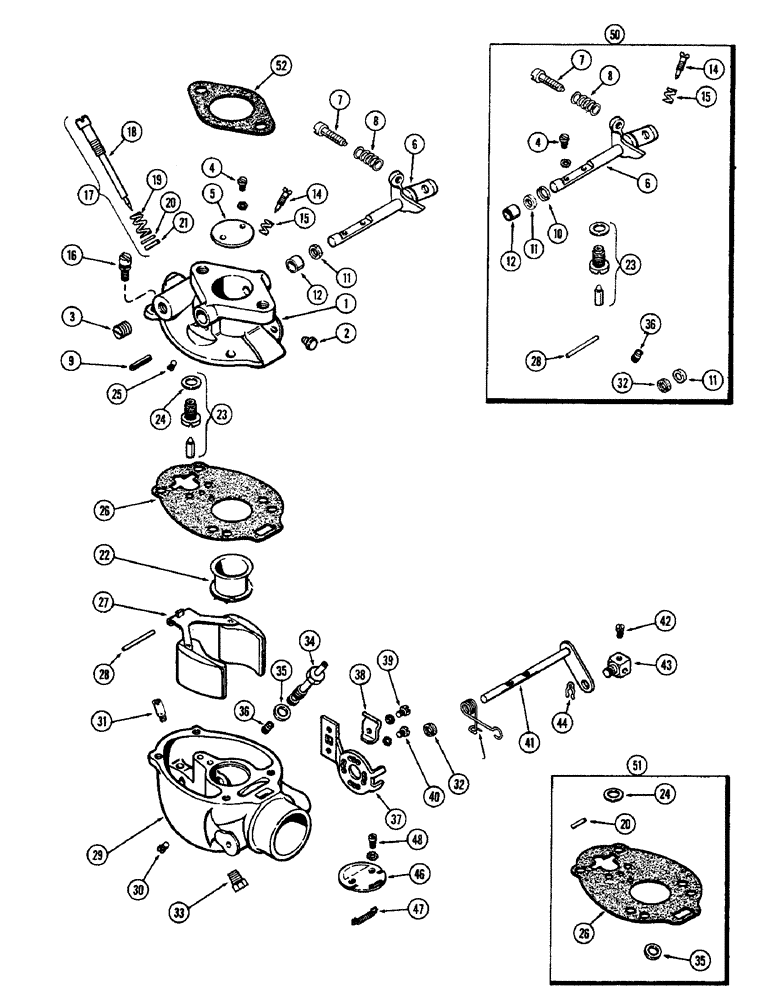

Запчасти Case W5 (040) - A43330 CARBURETOR (03) - FUEL SYSTEM

A43330

CARBURETOR - (Marvel-Schebler #TSX-U-838), Includes: Ref. 1 - 48

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSY. - throttle (Order A43330)

1шт.

2

B51696

SCREW - nozzle hole plug (5/16" N.F.)

1шт.

3

B51887

PLUG

- fuel inlet (1/8" P.T.)

1шт.

4

B51702

SCREW,#6 - 32 x 1/4"

- throttle fly

2шт.

5

B51668

FLY - throttle

1шт.

6

A43332

BLOCK ASSY.

SHAFT ASSY. - throttle, Includes: Ref. 7 and 8

1шт.

7

B51680

SCREW - throttle stop

1шт.

8

B51742

SPRING

- stop screw

1шт.

9

B51862

PIN - stop, throttle lever

1шт.

10

B51851

RETAINER

- throttle shaft packing

1шт.

11

B51806

PACKING

- throttle shaft

1шт.

12

B51858

BUSHING

- throttle shaft

2шт.

14

B51789

NEEDLE

- idle adjusting

1шт.

15

B51744

SPRING

- idle needle

1шт.

16

B51684

SCREW - throttle, Serial Range: body-bowl

4шт.

17

A42375

NEEDLE

ASSY. - high speed, Includes: Ref. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

NEEDLE - (Order A42375)

1шт.

19

B51732

VALVE SPRING

SPRING - high speed needle

1шт.

20

B51870

WASHER

- plain

1шт.

21

B51723

GASKET

-, Serial Range: needle-bowl

1шт.

22

A43336

VENTURI - (15/16" throat)

1шт.

23

B51911

SEAT, VALVE

VALVE & SEAT ASSY. - float (Matched), Includes: Ref. 24

1шт.

24

B51703

GASKET

- valve seat

1шт.

25

B51828

JET

- idle

1шт.

26

B51704

GASKET

- throttle, Serial Range: body-bowl

1шт.

27

B51773

FLOAT

ASSY. - fuel bowl

1шт.

28

B51778

SHAFT

- float

1шт.

29

NSS

NOT SOLD SEPARAT

BOWL ASSY. - fuel (Order A43330)

1шт.

30

B51700

SCREW

- plug, nozzle hole

1шт.

31

A43335

SEAT - high speed needle

1шт.

32

B51802

PACKING

- choke shaft

1шт.

33

B51887

PLUG

- bowl drain

1шт.

34

B51821

NOZZLE - main

1шт.

35

B51724

GASKET

- main nozzle

1шт.

36

A43337

JET - power

1шт.

A40301

BRACKET ASSY. - choke control, Includes: Ref. 37 - 39

1шт.

37

B51768

BRACKET - support, choke control

1шт.

38

B51765

CLIP

- choke control

1шт.

39

B51695

SCREW -, Serial Range: clip-bracket

1шт.

40

B51686

SCREW -, Serial Range: bracket-bowl

2шт.

41

A41556

SHAFT ASSY. - choke, Includes: Ref. 42 - 44

1шт.

42

B51698

SCREW,0.164" - 32 x 5/16"

- swivel

1шт.

43

A41533

SWIVEL - choke control

1шт.

44

B51877

SPLIT PIN

PIN - cotter

1шт.

46

A43334

FLY ASSY. - choke, Includes: Ref. 47

1шт.

47

B51743

SPRING

- choke fly

1шт.

48

B51702

SCREW,#6 - 32 x 1/4"

- choke, Serial Range: fly-shaft

2шт.

50

A43340

KIT - repair, carburetor, Includes: Ref. 51

1шт.

51

A42469

KIT

- gasket

1шт.

52

G46826

GASKET

-, Serial Range: carburetor-manifold

1шт.
