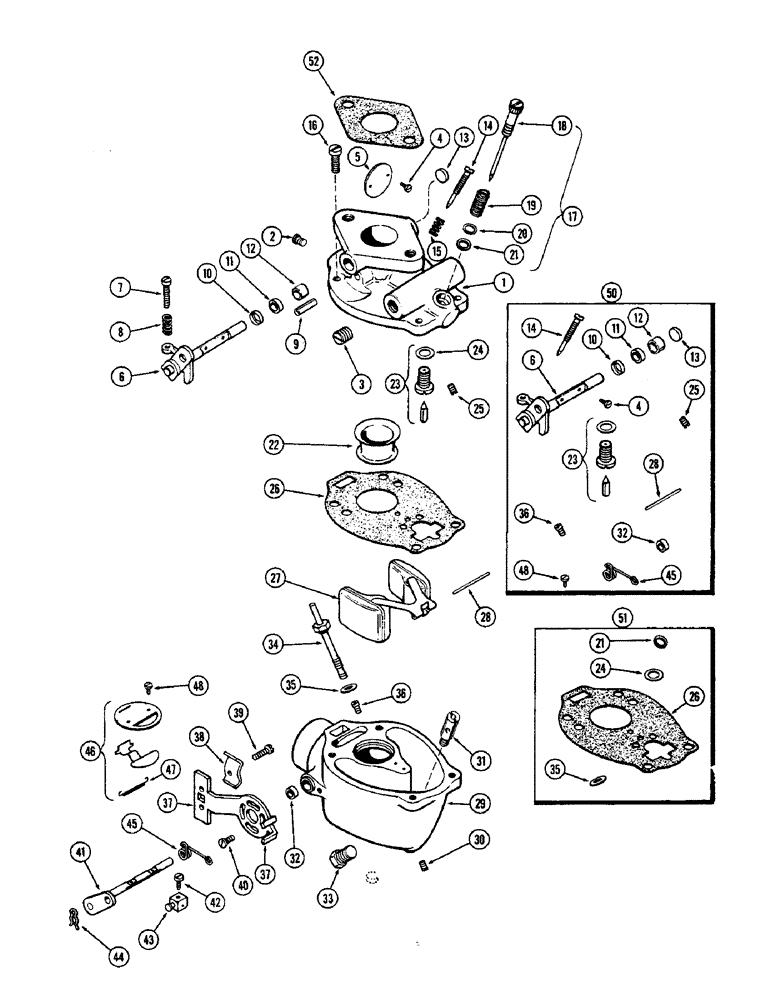

Запчасти Case W5 (038) - G11190 CARBURETOR (03) - FUEL SYSTEM

G11190

CARBURETOR - (Marvel-Schebler #TSX-717) (Order A43330 figure 40), Includes: Ref. 1 - 48

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSY. - throttle (Order A43330)

1шт.

2

B51696

SCREW - nozzle hole plug (5/16" N.F.)

1шт.

3

B53961

X

PLUG - fuel inlet

1шт.

4

B51685

SCREW

- throttle fly

2шт.

5

B51668

FLY - throttle

1шт.

6

B51664

SHAFT ASSY. - throttle, Includes: Ref. 7 and 8

1шт.

7

B51680

SCREW - throttle stop

1шт.

8

B51742

SPRING

- stop screw

1шт.

9

B51862

PIN - throttle stop

1шт.

10

B51851

RETAINER

- throttle shaft packing

1шт.

11

B51806

PACKING

- throttle shaft

1шт.

12

B51858

BUSHING

- throttle shaft

2шт.

13

B51850

RETAINER CUP

PLUG - shaft end

1шт.

14

B51789

NEEDLE

- idle adjusting

1шт.

15

B51744

SPRING

- idle needle

1шт.

16

B51684

SCREW - throttle, Serial Range: body-bowl

4шт.

17

A42375

NEEDLE

ASSY. - high speed, Includes: Ref. 18 - 21

1шт.

18

B51797

NEEDLE BEARING CAGE

NEEDLE - high speed

1шт.

19

B51732

VALVE SPRING

SPRING - high speed needle

1шт.

20

B51870

WASHER

- plain

1шт.

21

B51723

GASKET

-, Serial Range: needle-bowl

1шт.

22

B51814

VENTURI - (29/32" throat)

1шт.

23

A30244

SHUT-OFF VALVE

VALVE & SEAT ASSY. - float (Matched), Includes: Ref. 24

1шт.

24

B51703

GASKET

- valve seat

1шт.

25

B51833

JET - idle

1шт.

26

B51704

GASKET

- throttle, Serial Range: body-bowl

1шт.

27

B51773

FLOAT

ASSY. - fuel bowl

1шт.

28

B51779

SHAFT

- float

1шт.

29

NSS

NOT SOLD SEPARAT

BOWL ASSY. - fuel (Order A43330 figure 40)

1шт.

30

B51700

SCREW

- plug, nozzle hole

1шт.

31

B59383

SEAT - high speed needle

1шт.

32

B51802

PACKING

- choke shaft

1шт.

33

B51887

PLUG

- bowl drain

1шт.

34

B51823

NOZZLE - main

1шт.

35

B51724

GASKET

- main nozzle

1шт.

36

B51839

JET

- power

1шт.

37

B51768

BRACKET - choke

1шт.

38

B51765

CLIP

- choke control

1шт.

39

B51687

SCREW -, Serial Range: clip-bracket

1шт.

40

B51686

SCREW -, Serial Range: bracket-bowl

2шт.

41

B53953

SHAFT ASSY. - choke, Includes: Ref. 42 - 44

1шт.

42

B51698

SCREW,0.164" - 32 x 5/16"

- swivel

1шт.

43

B51764

PIVOT

SWIVEL - choke control

1шт.

44

B51877

SPLIT PIN

PIN - cotter

1шт.

45

B51738

SPRING - return, choke shaft

1шт.

46

B51762

VALVE

FLY ASSY. - choke, Includes: Ref. 47

1шт.

47

B51743

SPRING

- choke fly

1шт.

48

B51702

SCREW,#6 - 32 x 1/4"

- choke, Serial Range: fly-shaft

2шт.

50

B51932

KIT

- repair, carburetor, Includes: Ref. 51

1шт.

51

B51725

X

KIT - gasket

1шт.

52

G46826

GASKET

-, Serial Range: carburetor-manifold

1шт.
