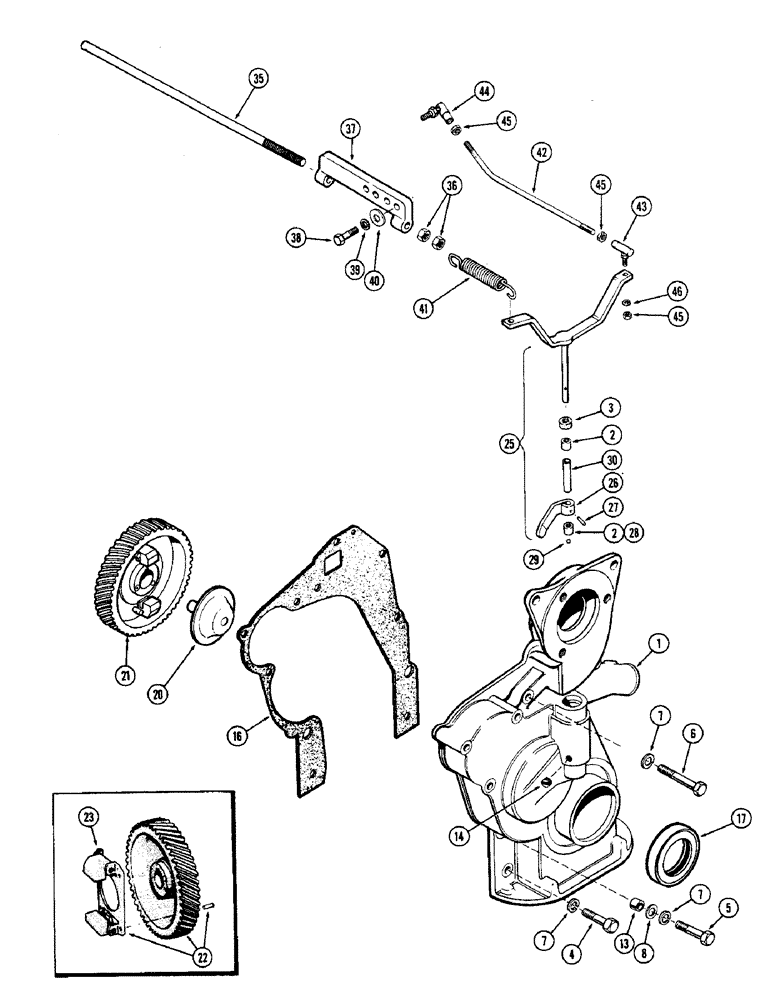

Запчасти Case W5 (032) - GOVERNOR AND TIMING GEAR COVER, (164) SPARK IGNITION ENGINE (02) - ENGINE

1

VT334

COVER - timing gear (Order A36979)

1шт.

1

A36979

COVER

ASSY. - timing gear, Includes: Ref. 2 and 3

1шт.

2

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - needle, governor shaft (See ref. 28)

2шт.

3

A30011

SEAL

- dust, governor shaft

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

5

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

6

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

7

92-6

LOCK WASHER,3/8"

7шт.

8

129-25

WASHER

- plain, 13/32" I.D. x 13/16" O.D. x 3/32"

2шт.

13

A29442

RING

- dowel, Serial Range: cover-block

2шт.

14

A30016

FITTING

PLUG - pipe, 1/16" P.T. slotted

1шт.

16

A38226

GASKET

- timing gear cover

1шт.

17

A36609

OIL SEAL

- oil, crankshaft

1шт.

20

A29957

SHAFT

ASSY. - governor

1шт.

21

G37066

GEAR

ASSY. - camshaft (Includes governor weight)

1шт.

22

VT540

GEAR - camshaft (Order ref. 21)

1шт.

23

NSS

NOT SOLD SEPARAT

WEIGHT - governor (Order ref. 21)

1шт.

25

A30125

SHAFT

& LEVER ASSY. - governor, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

ARM - rocker (Order A30125)

1шт.

27

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

28

A30015

NEEDLE BEARING,0.375" ID x 0.563" OD x 0.625"

BEARING - needle (Use with VT334 cover)

1шт.

29

211-5

BALL,3/16" Dia

- thrust, gov. shaft (3/16" steel)

1шт.

30

A30012

SPACER

- governor shaft

1шт.

35

A13565

ROD - throttle control

1шт.

36

131-401

NUT - lock, 3/8" N.F. Pal type

2шт.

37

A28878

GUIDE - control rod

1шт.

38

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

39

92-5

LOCK WASHER,5/16"

2шт.

40

195-521

WASHER,5/16", SAE

- plain, 11/32" I.D. x 11/16" O.D. x 5/64"

2шт.

41

G47064

SPRING

- governor speed control

1шт.

42

G17116

ROD

- governor, Serial Range: arm-carburetor

1шт.

43

A10329

BALL JOINT,1/4" - 28 x 1"

- front, Serial Range: rod-arm

1шт.

44

G45722

JOINT ASSY.

BALL JOINT - rear, Serial Range: rod-carburetor

1шт.

45

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

4шт.

46

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
