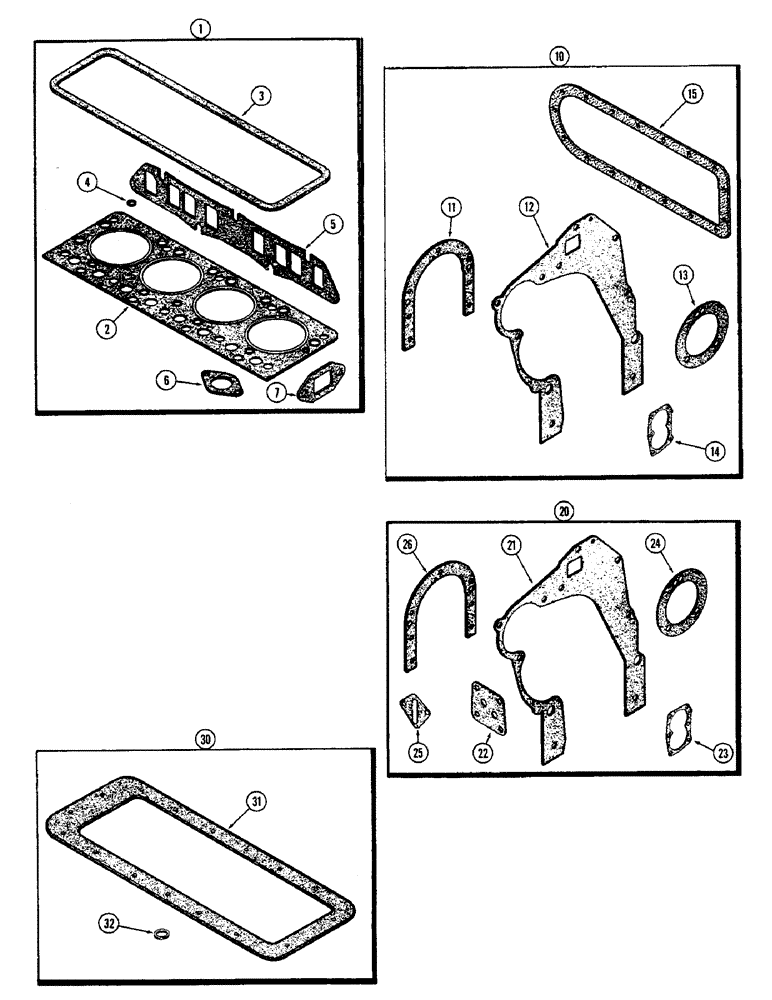

Запчасти Case W5 (026) - ENGINE GASKET KITS, (164) SPARK IGNITION ENGINE (02) - ENGINE

1

G11188

KIT

GASKET KIT - valve grind, Includes: Ref. 2 - 7

1шт.

2

G11170

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

3

A30009

GASKET

- valve cover

1шт.

4

G46851

SEAL

- intake valve stem

4шт.

5

A30030

GASKET

- manifold

1шт.

6

G46826

GASKET

- carburetor (1-9/16" opening)

1шт.

6

A29956

GASKET

- carburetor (1-1/4") (Not used this unit)

1шт.

7

A30003

GASKET

- water outlet

1шт.

10

G11189

KIT

GASKET KIT - cylinder block (Dry sleeve), Includes: Ref. 11 - 15

1шт.

11

G46802

GASKET

- rear oil seal retainer

1шт.

12

A38226

GASKET

- timing gear cover

1шт.

13

A30899

GASKET

- water pump

1шт.

14

G47030

GASKET

- oil pump cover

1шт.

15

G46087

GASKET

- side cover

1шт.

20

A41465

GASKET

KIT - cylinder block (Wet sleeve), Includes: Ref. 21 - 26

1шт.

21

A30010

GASKET

- timing gear cover

1шт.

22

G46854

GASKET

- oil filter (Not used this unit)

1шт.

23

G46852

GASKET

- oil pump cover

1шт.

24

G46875

GASKET

- water pump

1шт.

25

G46902

GASKET

- cover, fuel pump opening

1шт.

26

A38196

GASKET

- rear oil seal retainer

1шт.

30

A40710

KIT

GASKET KIT - oil pan, Includes: Ref. 31 and 32

1шт.

31

NSS

NOT SOLD SEPARAT

GASKET - pan to block (Order A40710)

1шт.

32

A58608

GASKET

- drain plug (3/4" I.D. x 1" O.D.) (Not used this unit. Order from figure 22)

1шт.

32

A34827

GASKET

- drain plug (7/8" I.D. x 1-1/8" O.D.) (Not used this unit. Order from figure 22)

1шт.
