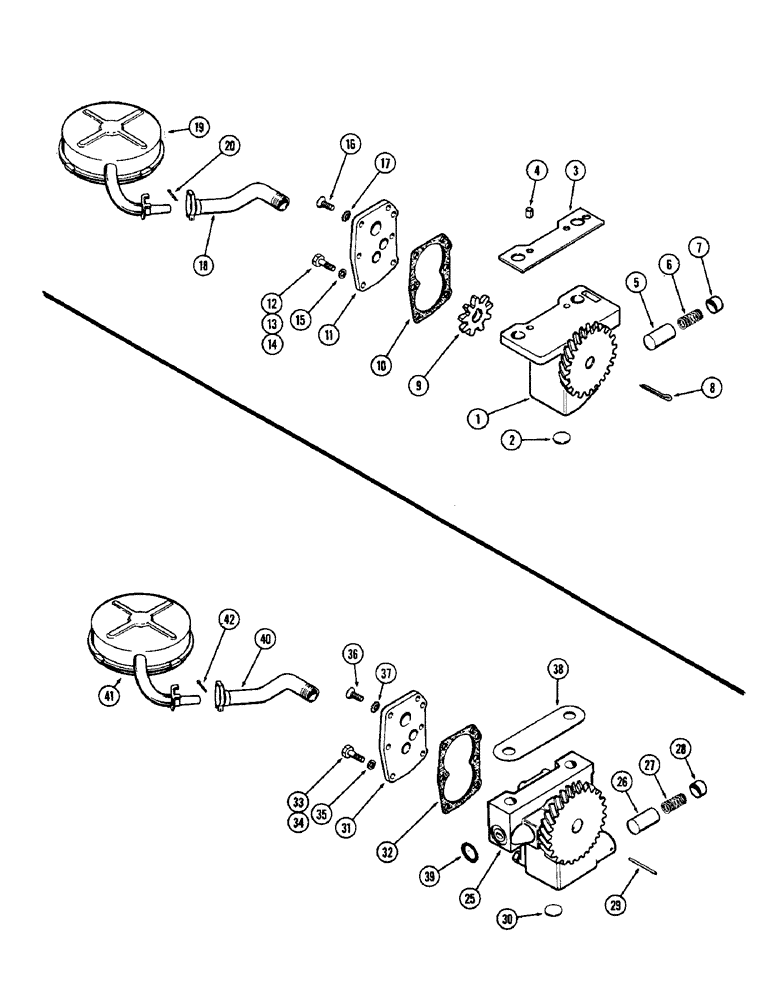

Запчасти Case W5 (024) - OIL PUMP, WITH DRY SLEEVES, WITH WET SLEEVES (02) - ENGINE

1

G11193

BODY

ASSY. - oil pump (Includes plugs, bushings, drive gears & idler stud), Includes: Ref. 2 - 4

1шт.

2

41-102

PLUG,Exp, 1/2"

- body (1/2" expansion type)

2шт.

3

G11706

SHIM - body to brg. cap (.002")

1шт.

3

G11707

SHIM - body to brg. cap (.005")

1шт.

4

A30019

PIN - dowel, body to brg. cap

2шт.

5

A155144

VALVE, PRESSURE RELI

- relief, oil pump

1шт.

6

A29285

SPRING

- relief valve

1шт.

7

A29260

RETAINER

- relief valve spring

1шт.

8

132-50

COTTER PIN,1/8" x 1 1/4"

PIN, Split (Cotter), 1/8" x 1 1/4"

1шт.

9

A30443

GEAR

- driven, oil pump (9 T)

1шт.

10

G47030

GASKET

- pump cover

1шт.

11

G2016

COVER - oil pump body

1шт.

12

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

13

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

14

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- mach., 1/4 x 5/8" N.C. flat hd.

2шт.

17

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

2шт.

18

A30222

PIVOT

PIPE - suction, oil, Serial Range: pan-pump

1шт.

19

G45060

FLOAT

ASSY. - oil pan (Includes screen)

1шт.

20

132-50

COTTER PIN,1/8" x 1 1/4"

PIN, Split (Cotter), 1/8" x 1 1/4"

1шт.

25

G11844

PUMP, ENGINE OIL

PUMP ASSY. - oil, complete, with wet sleeves, Includes: Ref. 26 - 28

1шт.

26

A155144

VALVE, PRESSURE RELI

- relief, oil pump, with wet sleeves

1шт.

27

G48513

VALVE SPRING

SPRING - relief valve, with wet sleeves

1шт.

28

A29260

RETAINER

- spring, relief valve, with wet sleeves

1шт.

29

132-50

COTTER PIN,1/8" x 1 1/4"

PIN, Split (Cotter), , with wet sleeves, Includes: Ref. 30 - 37 1/8" x 1 1/4"

1шт.

30

41-102

PLUG,Exp, 1/2"

- body (1/2" expansion type), with wet sleeves

2шт.

31

NSS

NOT SOLD SEPARAT

COVER - (Order G11844), with wet sleeves

1шт.

32

G46852

GASKET

- cover to body, with wet sleeves

1шт.

33

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

with wet sleeves Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

34

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

w/ Wet sleeves Hex, 1/4"-20 x 1 1/4", G5

1шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , with wet sleeves 1/4"

4шт.

36

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- mach., 1/4 x 5/8" N.C. flat hd., with wet sleeves

2шт.

37

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , with wet sleeves Ext Csk Tooth, 1/4"

2шт.

38

G11337

SHIM,.002" Thk

Pump to bearing cap, with wet sleeves .002" Thk

1шт.

38

G11338

SHIM,.005" Thk

Pump to bearing cap, with wet sleeves .005" Thk

1шт.

39

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port, with wet sleeves

1шт.

40

A30222

PIVOT

PIPE - suction, oil pan to pump, with wet sleeves

1шт.

41

G45060

FLOAT

ASSY. - oil pan (Includes screen), with wet sleeves

1шт.

42

132-50

COTTER PIN,1/8" x 1 1/4"

PIN, Split (Cotter), , with wet sleeves 1/8" x 1 1/4"

1шт.
