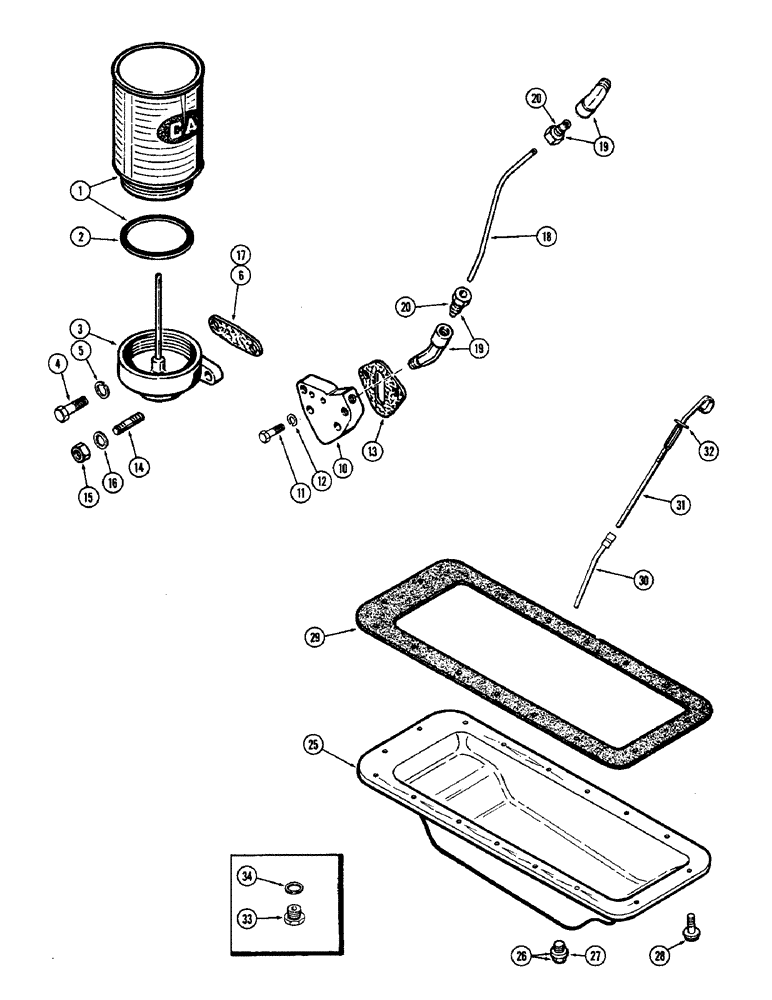

Запчасти Case W5 (022) - OIL FILTER, (164) SPARK IGNTN ENG., USED TO ADAPT OIL FILTR TO WET SLEEVE BLCK,OIL PAN/DIPSTICK (02) - ENGINE

1

A36136

FILTER, ENGINE OIL

ELEMENT KIT - oil filter, Includes: Ref. 2

1шт.

2

A30563

GASKET

-, Serial Range: element-housing

1шт.

3

VT4147

HOUSING

- filter element base

1шт.

4

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

- housing to block, 3/8 x 1-1/4" N.C. hex.

2шт.

5

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

6

A30436

GASKET

-, Serial Range: housing-block

1шт.

10

G2142

PLATE - adapter, filter housing to block, following parts used to adapt oil filter to wet sleeve block

1шт.

11

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Following parts used to adapt oil filter to wet sleeve block Hex, 5/16"-18 x 1 1/2", G5

2шт.

12

92-5

LOCK WASHER,5/16"

following parts used to adapt oil filter to wet sleeve block 5/16"

2шт.

13

G46902

GASKET

- adapter plate, following parts used to adapt oil filter to wet sleeve block

1шт.

14

A29356

STUD

- housing to plate (3/8" N.C. x 1-1/2"), following parts used to adapt oil filter to wet sleeve block

2шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., following parts used to adapt oil filter to wet sleeve block

2шт.

16

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Following parts used to adapt oil filter to wet sleeve block Int Tooth, 3/8"

2шт.

17

A30436

GASKET

- housing to adapter, following parts used to adapt oil filter to wet sleeve block

1шт.

18

G46384

LINE - oil by-pass, filter to head, following parts used to adapt oil filter to wet sleeve block

1шт.

19

221-461

ELBOW - by-pass line, 3/16" tube x 1/8" P.T.-45 degrees, following parts used to adapt oil filter to wet sleeve block, Includes: Ref. 20

2шт.

20

221-501

NUT - 3/16" tube, following parts used to adapt oil filter to wet sleeve block

1шт.

25

A36785

ENGINE OIL PAN

PAN ASSY. - oil pan and dipstick, Includes: Ref. 26 and 27

1шт.

26

G45786

PLUG

- drain, 3/8" P.T. (Includes gasket), oil pan and dipstick, Includes: Ref. 27

1шт.

27

G46903

GASKET

- drain plug (5/8" I.D. x 1" O.D.), oil pan and dipstick

1шт.

28

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (5/16 x 3/4" N.C. special), oil pan and dipstick

16шт.

29

NSS

NOT SOLD SEPARAT

GASKET - pan to head (Order from figure 26), oil pan and dipstick

1шт.

30

G45139

BRACKET

SUPPORT - dipstick, and oil pan

1шт.

31

G37037

DIPSTICK

ASSY. - oil level, oil pan and dipstick, Includes: Ref. 32

1шт.

REF. 31 - SOME BLOCKS WERE MACHINED WITH A HOLE WHERE DIPSTICK GOES ABOUT 1" DIAMETER WITH THESE UNITS,THE DIPSTICK TO USE IS A37148.

1шт.

32

G46892

OIL SEAL

- rubber, oil pan and dipstick

1шт.

33

A30060

PLUG

- drain, 7/8" N.F. (Original equipment), oil pan and dipstick

1шт.

34

A30059

GASKET

- drain plug (29/32" I.D. x 1-3/32" O.D.) (Original equipment), oil pan and dipstick

1шт.
