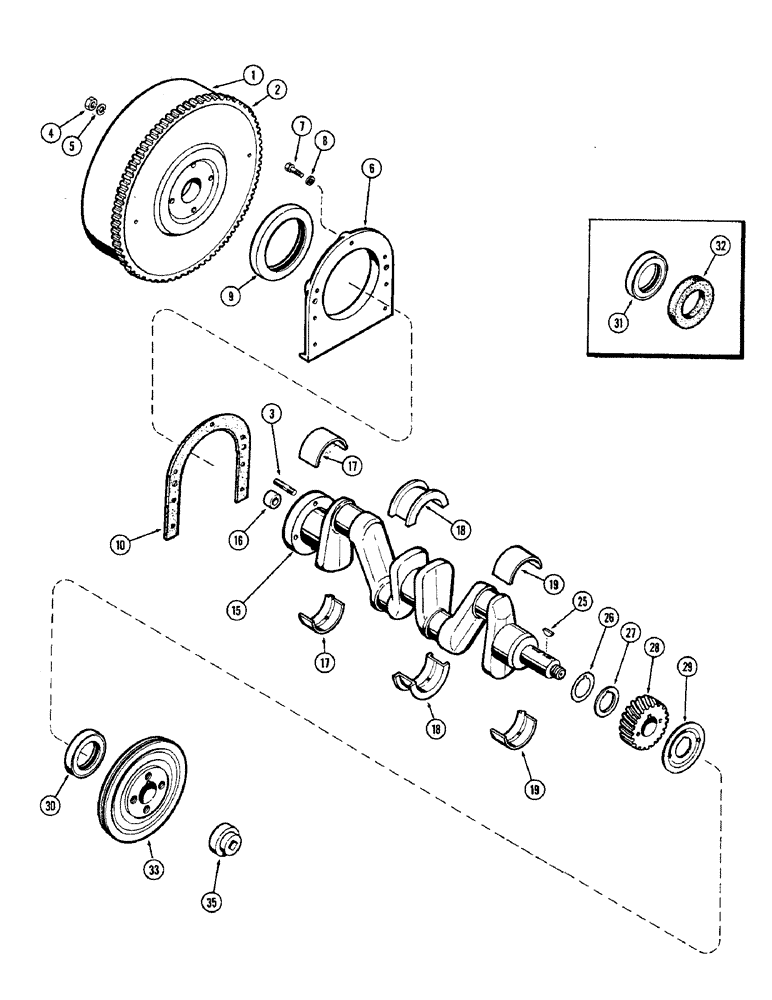

Запчасти Case W5 (014) - CRANKSHAFT AND FLYWHEEL, (164) SPARK IGNITION ENGINE (02) - ENGINE

1

G11832

FLYWHEEL ASSY., Includes: Ref. 2

1шт.

2

G11715

GEAR - ring (140 T)

1шт.

3

A29434

STUD

- flywheel to crankshaft (7/16" N.F. x 1-3/4")

4шт.

4

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex.

4шт.

5

92-7

LOCK WASHER,7/16"

4шт.

6

A38390

RETAINER

- rear oil seal

1шт.

7

113-25

X

BOLT - 1/4 x 3/4" N.C. hex. (Gr. 8)

3шт.

7

113-26

BOLT

- 1/4 x 1" N.C. hex. (Gr. 8)

4шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

9

A36610

OIL SEAL

- oil, crankshaft rear

1шт.

10

G46802

GASKET

- retainer, rear oil seal

1шт.

15

G11183

CRANKSHAFT

ASSY., Includes: Ref. 16

1шт.

16

A30024

BUSHING,15.98mm ID x 20.73mm OD x 22.23mm L

- pilot

1шт.

17

G37051

KIT

LINERS - rear bearing, crankshaft (Std.)

1шт.

17

G37052

KIT

LINERS - rear bearing, crankshaft (.002" undersize)

1шт.

17

A42322

FIP KIT

LINERS - rear bearing, crankshaft (.010" undersize)

1шт.

17

G37053

KIT

LINERS - rear bearing, crankshaft (.020" undersize)

1шт.

17

G37054

KIT

LINERS - rear bearing, crankshaft (.040" undersize)

1шт.

18

G37047

KIT

LINERS - center bearing, crankshaft (Std.)

1шт.

18

G37048

KIT

LINERS - center bearing, crankshaft (.002" undersize)

1шт.

18

A42321

FIP KIT

LINERS - center bearing, crankshaft (.010" undersize)

1шт.

18

G37049

KIT

LINERS - center bearing, crankshaft (.020" undersize)

1шт.

18

G37050

KIT

LINERS - center bearing, crankshaft (.040" undersize)

1шт.

19

G37043

KIT

LINERS - front bearing, crankshaft (Std.)

1шт.

19

G37044

KIT

LINERS - front bearing, crankshaft (.002" undersize)

1шт.

19

A42320

BEARING LINER

LINERS - front bearing, crankshaft (.010" undersize)

1шт.

19

G37045

KIT

LINERS - front bearing, crankshaft (.020" undersize)

1шт.

19

G37046

KIT

LINERS - front bearing, crankshaft (.040" undersize)

1шт.

25

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - gear & pulley, crankshaft

2шт.

26

A29293

SHIM,.010" Thk

Thrust washer .010" Thk

1шт.

27

A29294

BUSHING

WASHER - thrust, crankshaft

1шт.

28

A29263

GEAR

- crankshaft (24 T)

1шт.

29

A29259

SLINGER

- oil, crankshaft gear

1шт.

30

A36609

OIL SEAL

- oil, front (Replaces ref. 31 & 32)

1шт.

31

A30026

SEAL - oil (Order ref. 30)

1шт.

32

A30028

SEAL - dust (Order ref. 30)

1шт.

33

G11712

PULLEY

- fan belt drive

1шт.

35

A35673

NUT

- crankshaft pulley

1шт.
