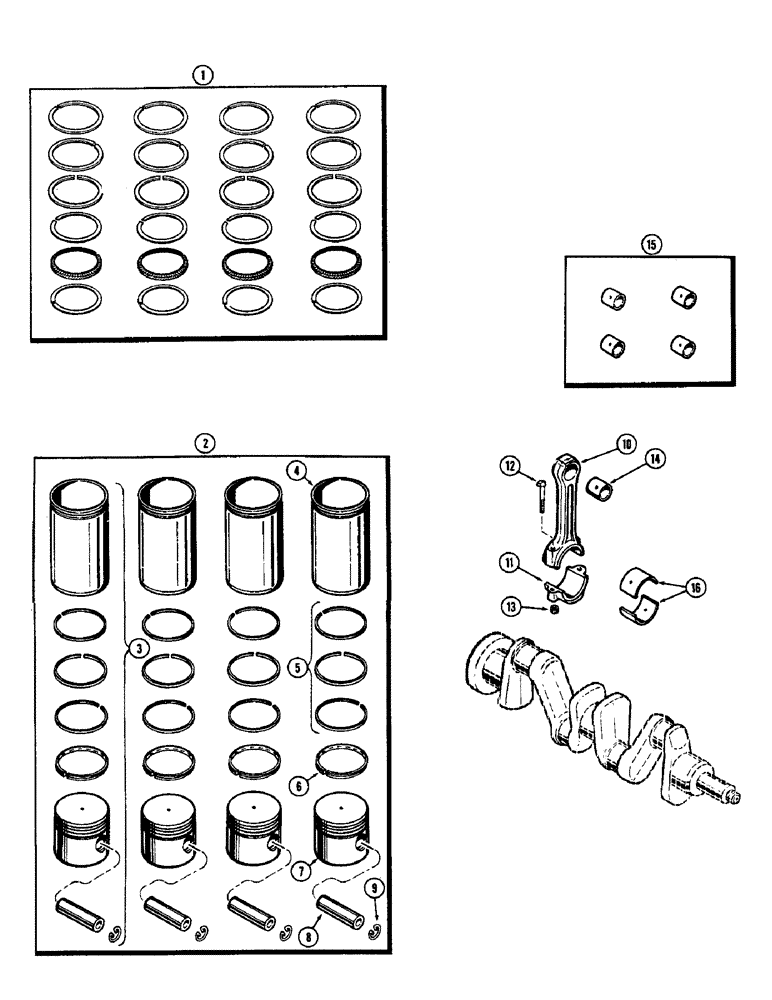

Запчасти Case W5 (008) - PISTON ASSEMBLY AND CONNECTING RODS, (164) SPARK IGNITION ENGINE (02) - ENGINE

1

G11198

PACKAGE, RINGS

RING SET - 4 piston (2 in 1 chrome set)

1шт.

2

G11196

SET

SLEEVE & PISTON SET - (Matched set of 4), Includes: Ref. 3 - 9

1шт.

3

G11828

SLEEVE ASSY

SLEEVE & PISTON SET - matched, Includes: Ref. 4 - 9

4шт.

4

G2020

SLEEVE

- cylinder (Order ref. 2 or 3)

1шт.

5

G2005

RING

- compression (See ref. 1)

3шт.

6

G2006

RING

- oil control (See ref. 1)

1шт.

7

G2004

PISTON

- (Order ref. 2 or 3)

1шт.

8

A26914

PIN,25.38mm OD x 76.33mm L

- piston

1шт.

9

A26915

RING, SNAP

RING - retainer

2шт.

10

G11172

STEM

ROD ASSY. - connecting, Includes: Ref. 11 - 14

4шт.

11

NSS

NOT SOLD SEPARAT

CAP - (Order G11172)

1шт.

12

G11701

BOLT

- cap

2шт.

13

G49060

NUT

- cap bolt

2шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 15)

1шт.

15

G11922

BUSHING

KIT - piston pin (Set of 4)

1шт.

16

A36500

SEAL

LINERS - bearing, conn. rod (Std.)

4шт.

16

A36501

BEARING LINER

LINERS - bearing, conn. rod (.002" undersize)

4шт.

16

A36503

BEARING LINER

LINERS - bearing, conn. rod (.020" undersize)

4шт.
