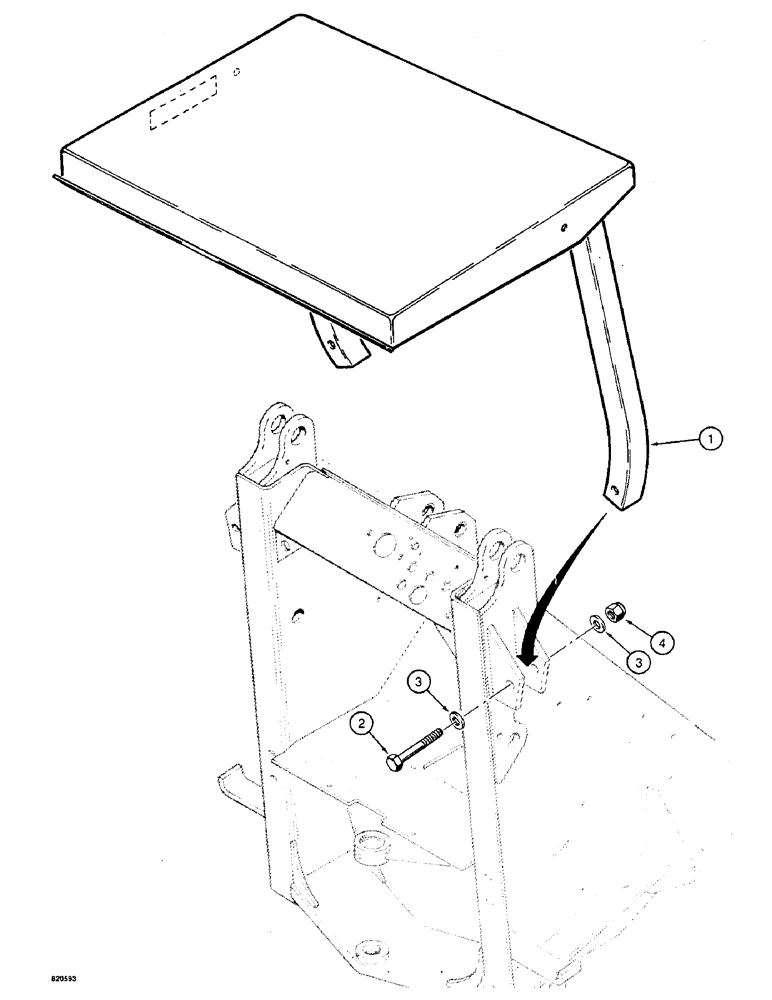

Запчасти Case W4 (198) - ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

ROPS CANOPY - machinery item - see Figure 002 for ordering

1шт.

2

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, hardened

4шт.

4

131-1400

LOCK NUT,Jam, 3/4"-16

NUT - hex, self-locking, 3/4" - 10 NC, plated

2шт.
