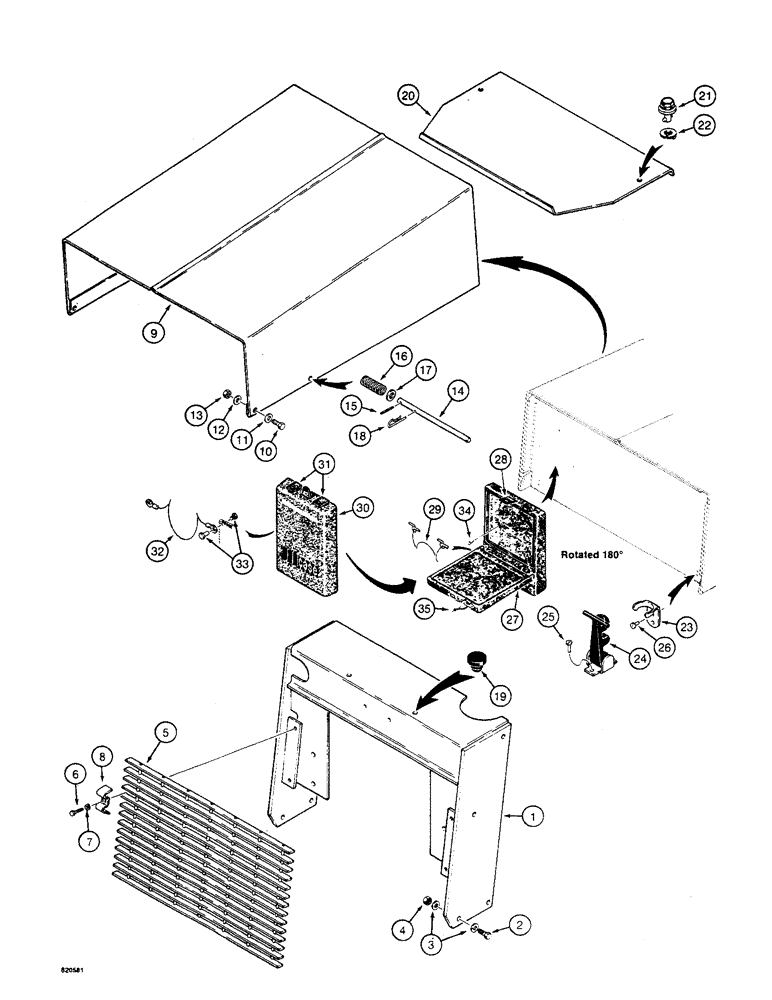

Запчасти Case W4 (194) - HOOD, GRILLE, AND RADIATOR SHROUD, FOR 2.1 LITRE SHROUD, USED ON TRACTOR SN 1205397, 1205402 & AFTER (09) - CHASSIS/ATTACHMENTS

1

H659037

SHROUD - radiator

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

3

195-106

WASHER,1/2"

- flat, 1/2"

4-8шт.

4

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

5

H411421

ROD

GRILLE - radiator

1шт.

6

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex head, 1/4" - 20 NC x 1-3/4"

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

H411447

CLAMP

- grille

4шт.

9

H627083

HOOD - engine

1шт.

10

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

11

195-1025

WASHER - flat, 1/2", brass

2шт.

12

195-533

WASHER,1/2", SAE

- flat, 1/2"

2шт.

13

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

14

H409813

PIN - hood support

1шт.

15

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, , Retainer 1/4" x 2 1/4", Slotted

1шт.

16

D46216

SPRING

- hood support

1шт.

17

195-106

WASHER,1/2"

- flat, 1/2"

1шт.

18

136-160

COTTER PIN,Int, 13/64" x .156"

HAIR PIN - retainer

1шт.

19

L60224

BUMPER

- hood

2шт.

20

H413716

COVER - access

1шт.

21

H336461

RETAINER

1/4 turn

2шт.

22

L48760

WASHER

- retainer

2шт.

L55329

CATCH

HOOK AND LATCH - hood retaining, Includes: Ref. 23 & 24

2шт.

23

NSS

NOT SOLD SEPARAT

HOOK - hood retaining

1шт.

24

NSS

NOT SOLD SEPARAT

LATCH - hood retaining

1шт.

25

151-537

RIVET,Pop, 1/8" x .650"

POP RIVET - latch, 1/8" x 5/8"

4шт.

26

151-525

RIVET,Pop, 1/8" x .275"

POP RIVET - hook, 1/8" x 1/4"

2шт.

27

R38893

CASE

MANUAL BOX - operators, one latch, if used, Includes: Ref. 28

1шт.

Manual box can be mounted on left-hand fender.

1шт.

28

N7120

LATCH

- manual box

1шт.

29

A141917

ROPE

LANYARD - manual box with one latch, if used

2шт.

30

R46464

CASE

MANUAL BOX - operators, two latches, if used, Includes: Ref. 31

1шт.

Manual box can be mounted on left-hand fender.

1шт.

31

N7189

BEARING

LATCH - manual box

2шт.

32

R46465

CABLE,36mm L

LANYARD - manual box with two latches, if used

1шт.

33

R46463

SCREW,0.18" x 0.75"

POST - manual retaining, 3/16" x 3/4", used with two-latch manual box, if used

1шт.

34

151-522

RIVET,Pop, 3/16" x .575"

POP RIVET - manual box, 3/16" x 1/2"

3шт.

35

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - manual box

1шт.
